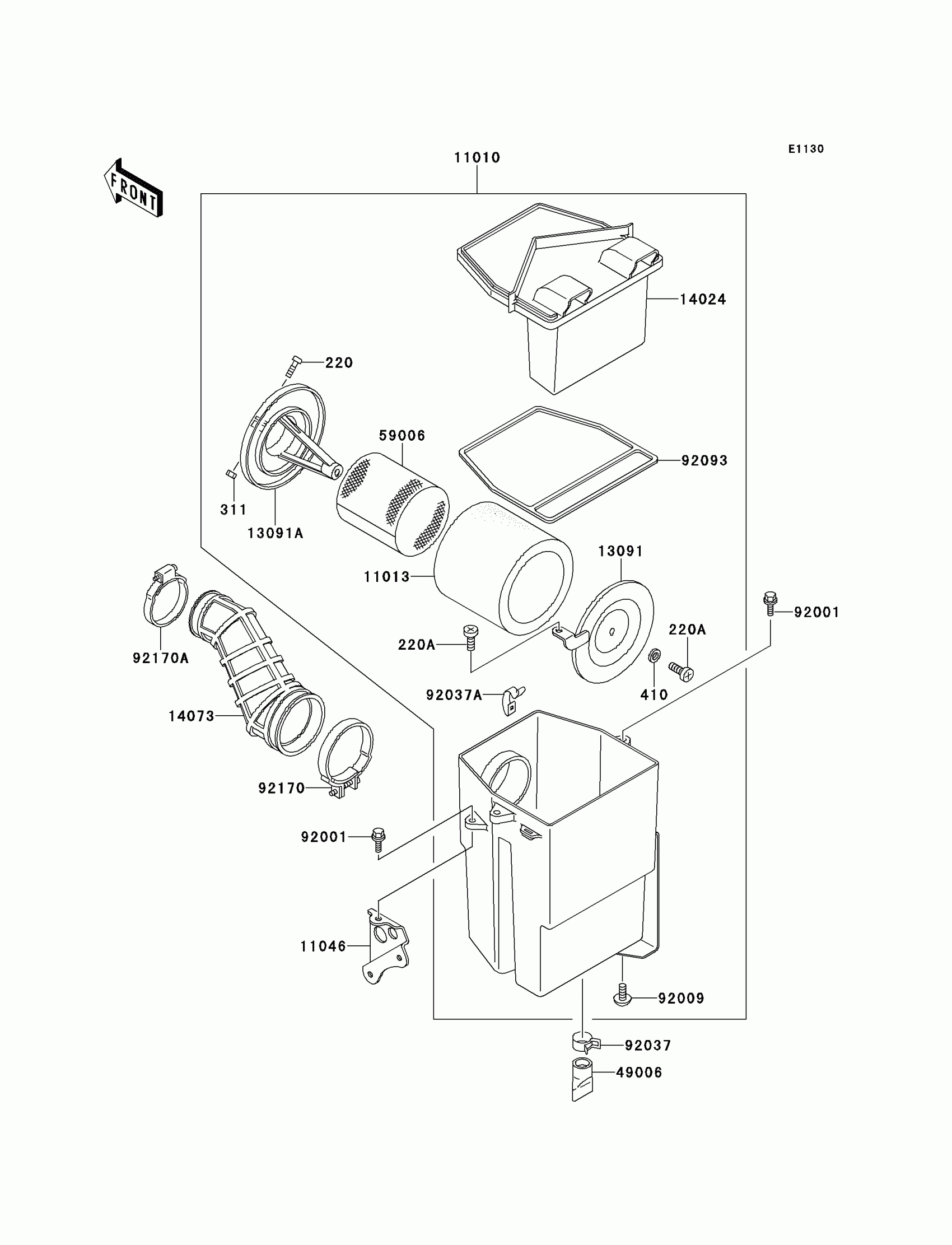

Kawasaki Bayou 300 4X4 Air Cleaner(KLF300-C5&NAMI.C8) Diagram

Description

Price

220

SCREW PAN HEAD 5X16

220B0516

$1.73

220A

SCREW-PAN-CROS,6X14

220B0614

$1.32

311

NUT-HEX

311B0500

$0.51

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

11010

FILTER-ASSY-AIR

11010-1365

Unavailable

11013

ELEMENT-AIR FILTER

11013-1158

$8.90

11046

BRACKET,REGULATOR

11046-1042

Unavailable

13091

HOLDER,ELEMENT

13091-1488

$18.50

13091A

HOLDER,AIR FILTER ELEMENT

13091-1565

$14.65

14024

COVER,AIR FILTER

14024-1703

$41.46

14073

DUCT,AIR

14073-1359

Unavailable

49006

BOOT

49006-1199

Unavailable

59006

ARRESTER-FLAME

59006-1052

$34.50

92001

BOLT,6X18

92001-1342

Unavailable

92009

SCREW,TAPPING,5X10

92009-1332

$3.12

92037

CLAMP,HOSE CLIP

92037-1460

$8.57

92037A

CLAMP,AIR FILTER

92037-1783

$6.99

92093

SEAL,AIR FILTER

92093-1241

$10.27

92170

CLAMP

92170-1149

$9.01

92170A

CLAMP

92170-1674

$9.32
