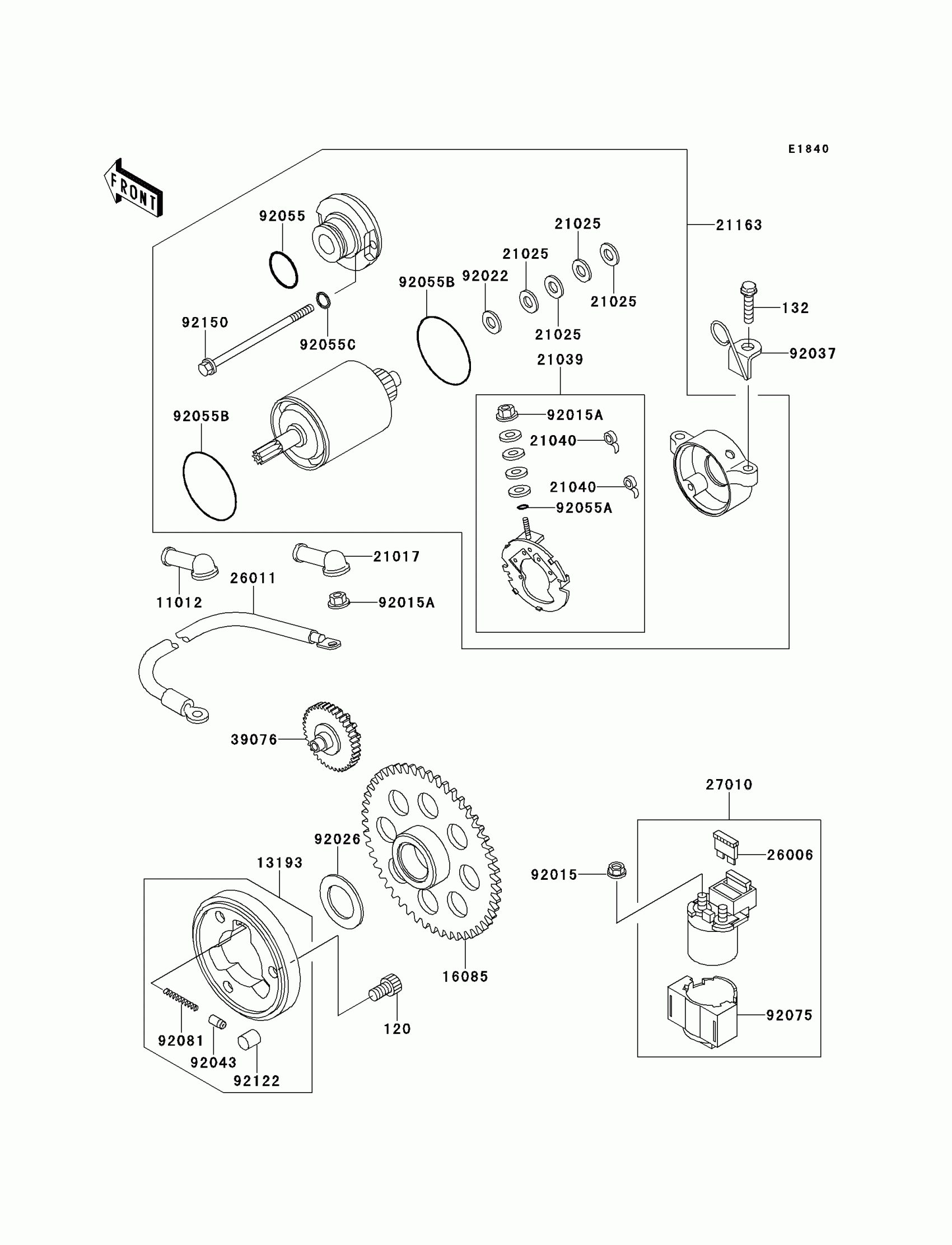

Kawasaki Bayou 250 Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,8X14

120P0814

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132Y0625

Unavailable

11012

CAP,TERMINAL

11012-1354

$9.85

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$111.98

16085

GEAR,ONEWAY CLUTCH

16085-1198

$131.94

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH

21039-1066

$28.79

21040

SPRING-BRUSH

21040-1057

$8.24

21163

STARTER-ELECTRIC

21163-1266

$505.81

26006

FUSE,BLADE,20A,YELLOW

26006-1051

$4.39

26011

WIRE-LEAD,STARTER

26011-1417

$58.31

27010

SWITCH

27010-1243

Unavailable

39076

LIMITER,STARTER IDLE

39076-1060

$191.59

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92026

SPACER,22X35.5X1.0

92026-092

$11.92

92037

CLAMP

92037-1962

$9.71

92043

PIN

92043-132

$4.67

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O

92055-1550

$9.58

92055C

RING-O

92055-1551

$4.17

92075

DAMPER,MAGNETIC SWITCH

92075-1863

Unavailable

92081

SPRING,COIL

92081-159

$2.72

92122

ROLLER

92122-006

$4.67

92150

BOLT,FLANGED,4X80

92150-1969

$7.24
