2005 Kawasaki Bayou 250 Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2005 Kawasaki Bayou 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

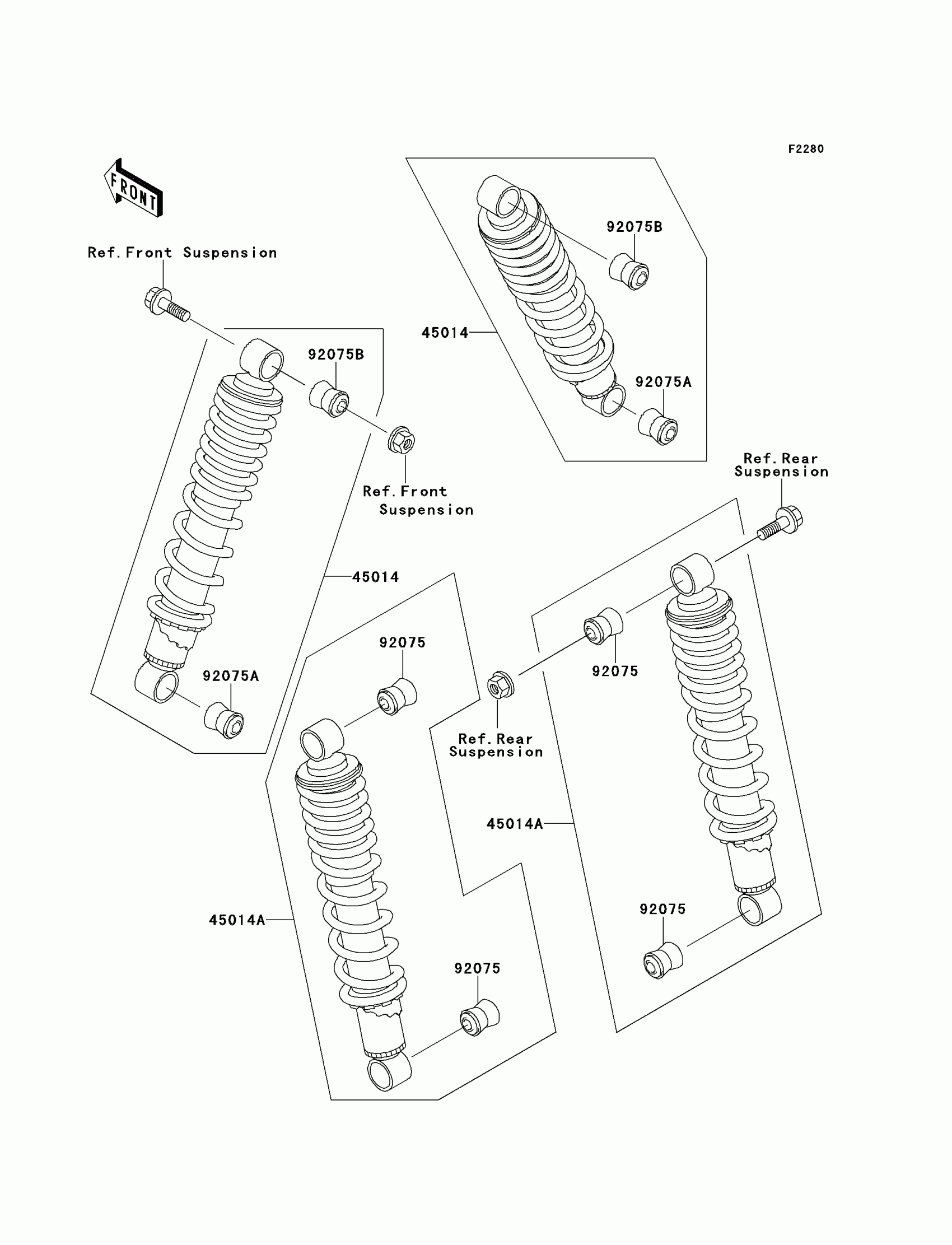

2005 Kawasaki Bayou 250 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER,FR

45014-1455

1
Out of stock

45014A

SHOCKABSORBER,RR

45014-1756

1
Out of stock

92075

DAMPER,SHOCKABSORBER

92075-1784

1
Out of stock

92075A

DAMPER,SHOCKABSORBER

92075-1825

1
Out of stock

92075B

DAMPER,SHOCKABSORBER

92075-1897

1
Out of stock
