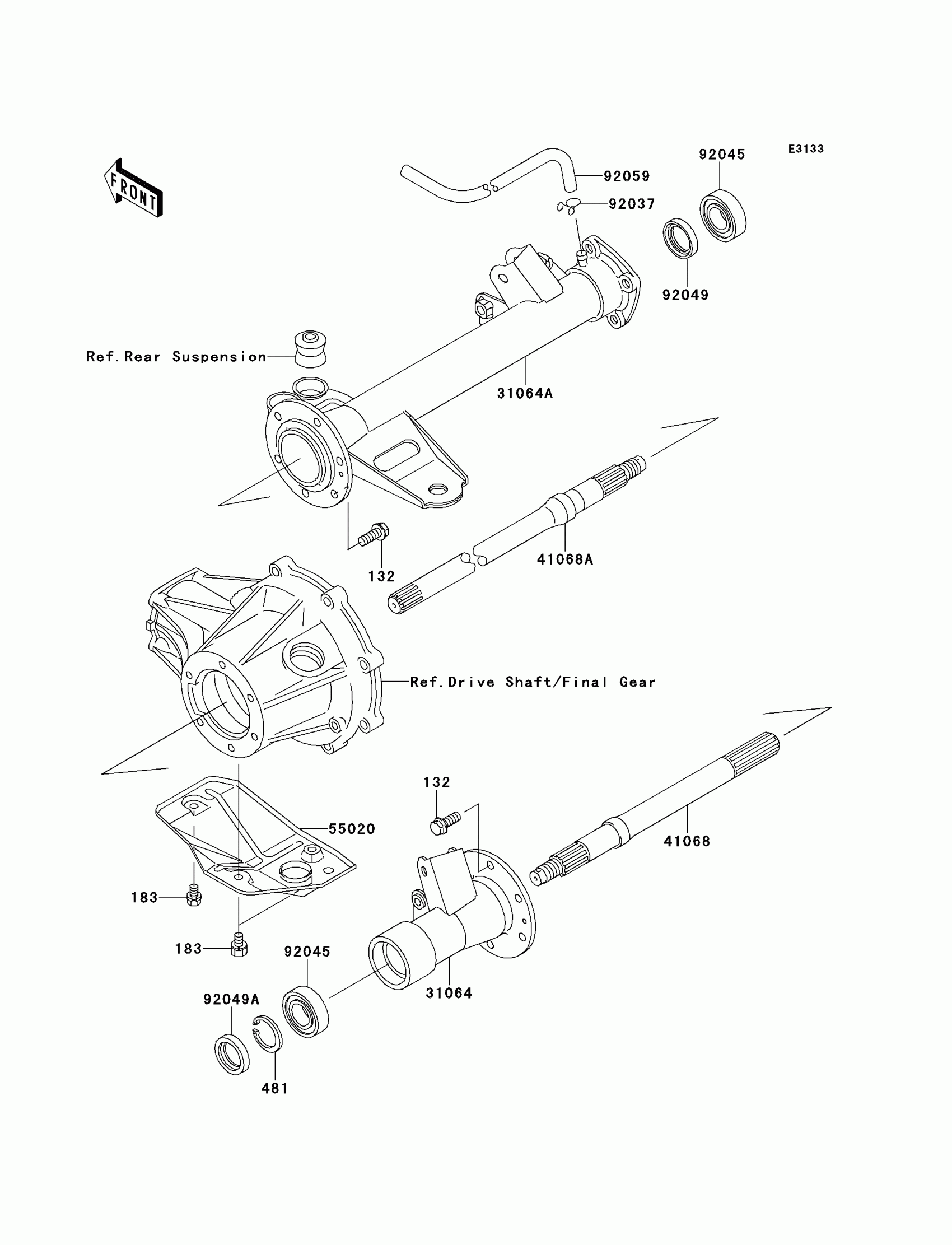

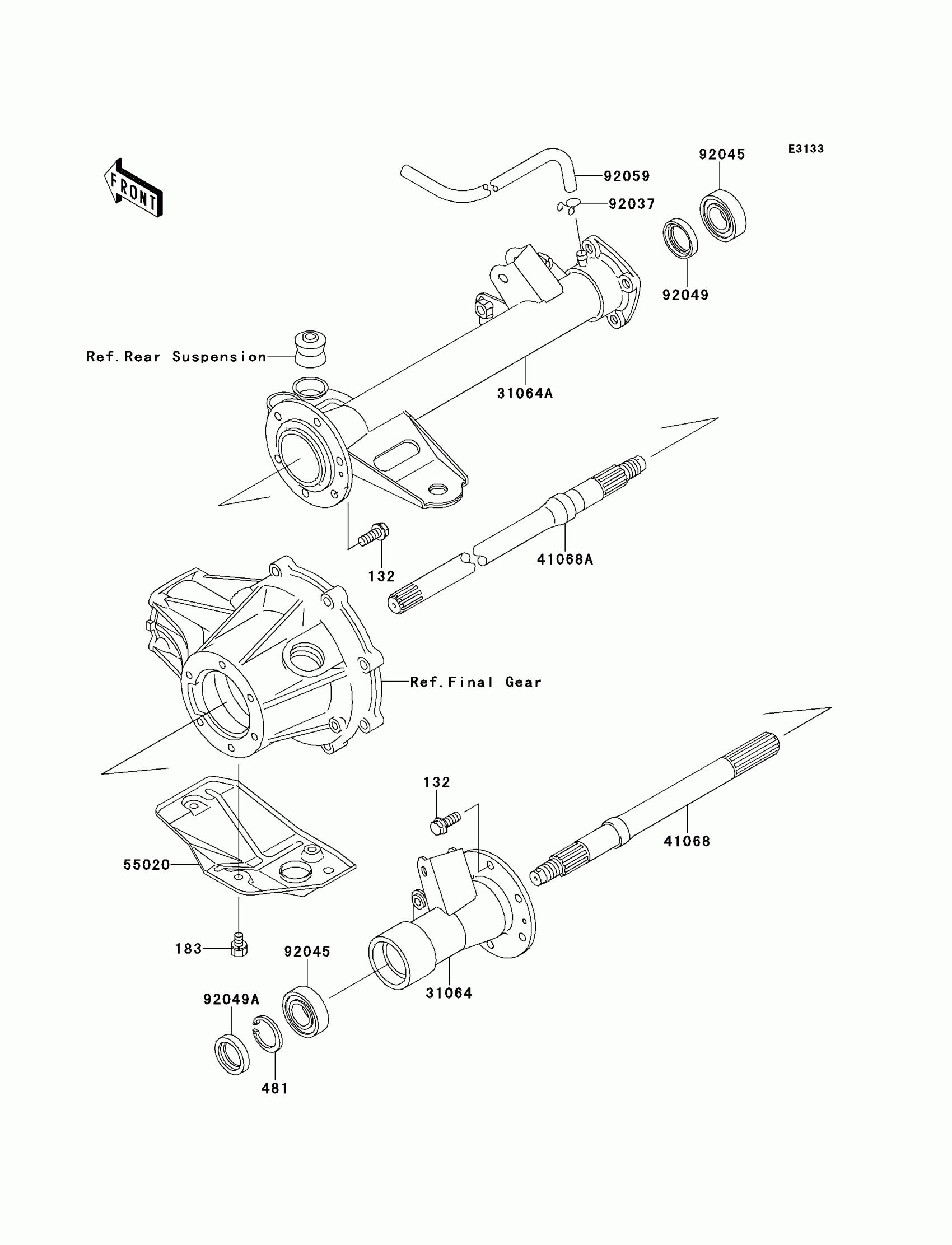

Find the part on the Rear Axle diagram for your 2005 Kawasaki Bayou 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Bayou 250 Rear Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,8X20

132J0820

1
Out of stock

183

1

$0.76

In stock

481

1

$3.92

In stock

31064

PIPE-COMP,LH

31064-1088

1

$156.53

In stock

31064A

PIPE-COMP,RH

31064-1089

1

$146.18

In stock

41068

AXLE,LH

41068-1244

1

$207.00

In stock

41068A

AXLE,RH

41068-1245

1

$320.61

In stock

55020

GUARD

55020-1276

1

$93.68

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92045

1

$30.64

In stock

92049

SEAL-OIL,SO30428

92049-1236

1
Out of stock

92049A

SEAL-OIL

92049-1287

1
Out of stock

92059

TUBE,4.7X9.5X1240

92059-1968

1

$21.61

In stock
