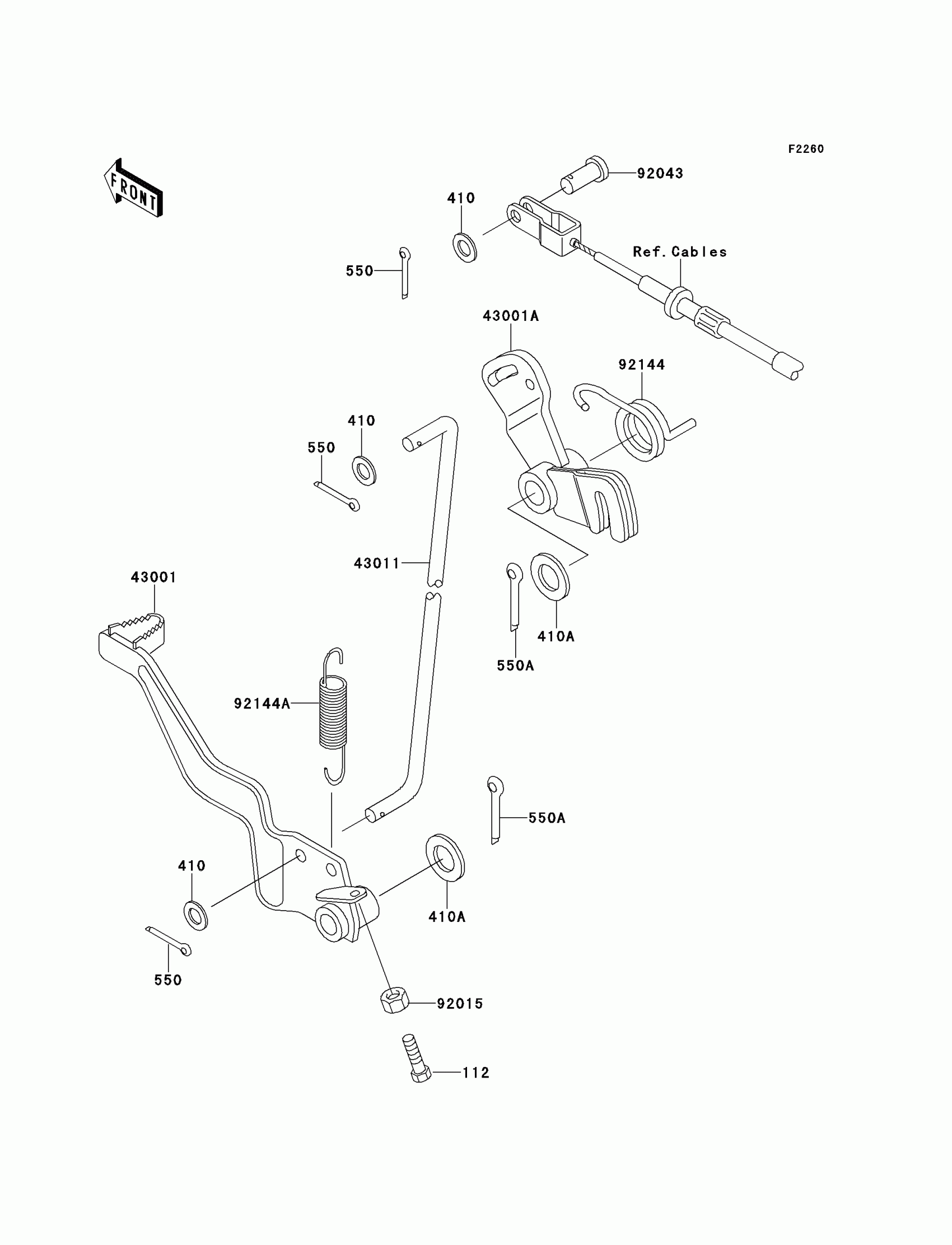

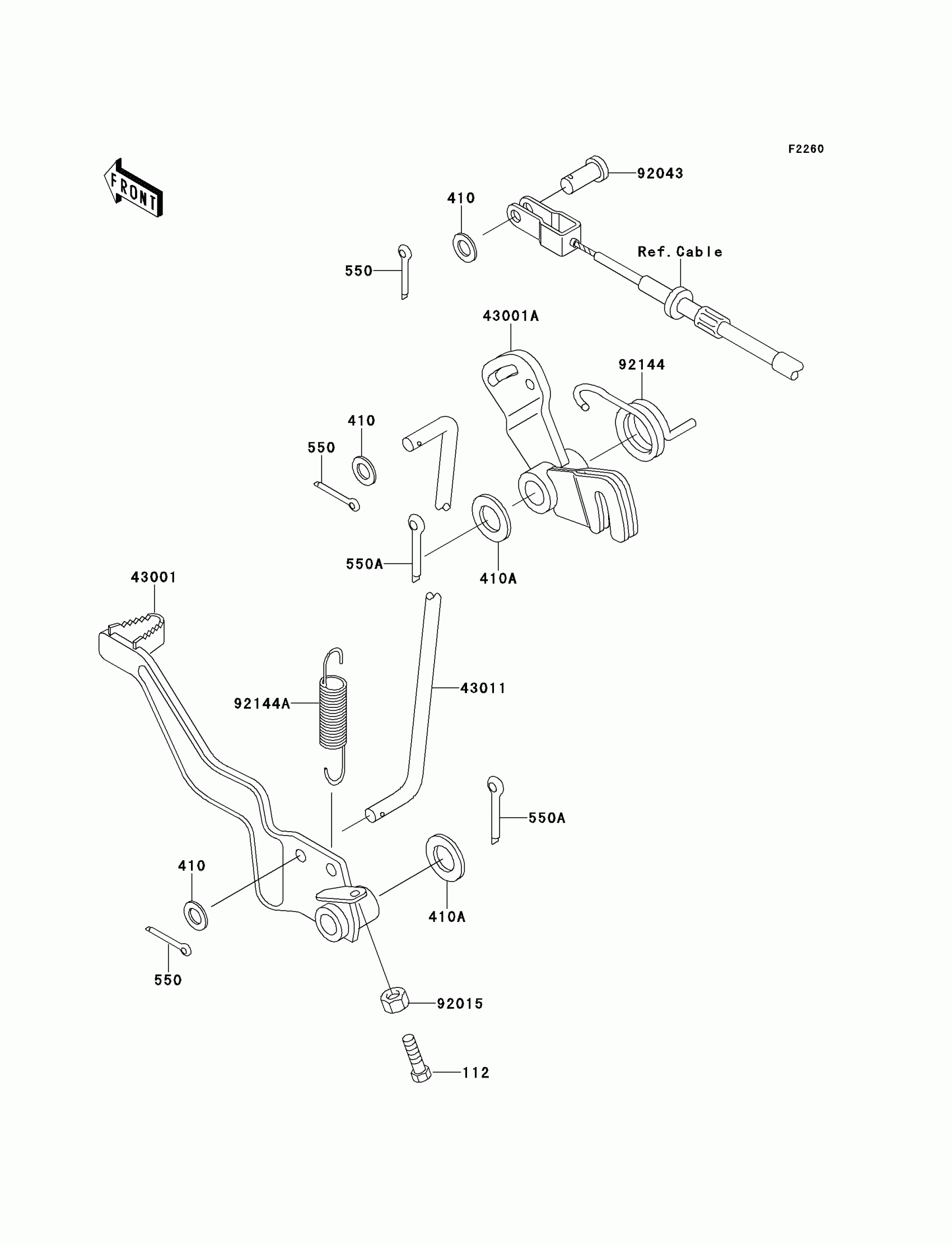

Find the part on the Brake Pedal diagram for your 2005 Kawasaki Bayou 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Bayou 250 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,6X22

112D0622

1
Out of stock

410

1

$1.19

In stock

410A

WASHER-PLAIN-SMALL,14MM

410B1400

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

550A

PIN-COTTER,2.5X25

550D2525

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-1230

1

$83.53

In stock

43001A

LEVER-BRAKE

43001-1288

1

$83.03

In stock

43011

ROD-BRAKE

43011-1138

1

$10.46

In stock

92015

NUT,6MM

92015-1410

1

$3.53

In stock

92043

PIN,6X14.5

92043-125

1

$5.21

In stock

92144

1

$8.51

In stock

92144A

SPRING

92144-1266

1

$6.98

In stock
