1991 Kawasaki Bayou 220 Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 1991 Kawasaki Bayou 220, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

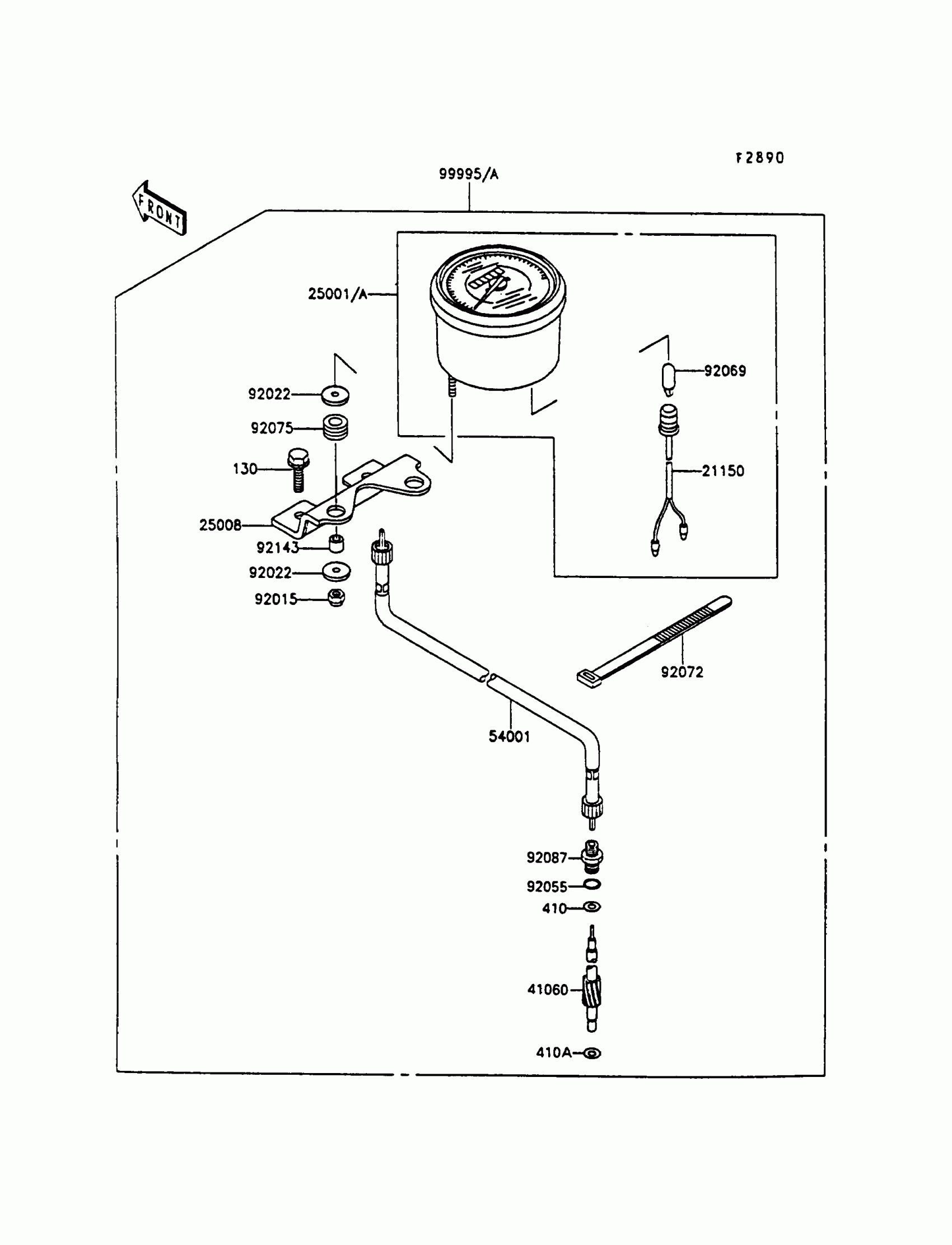

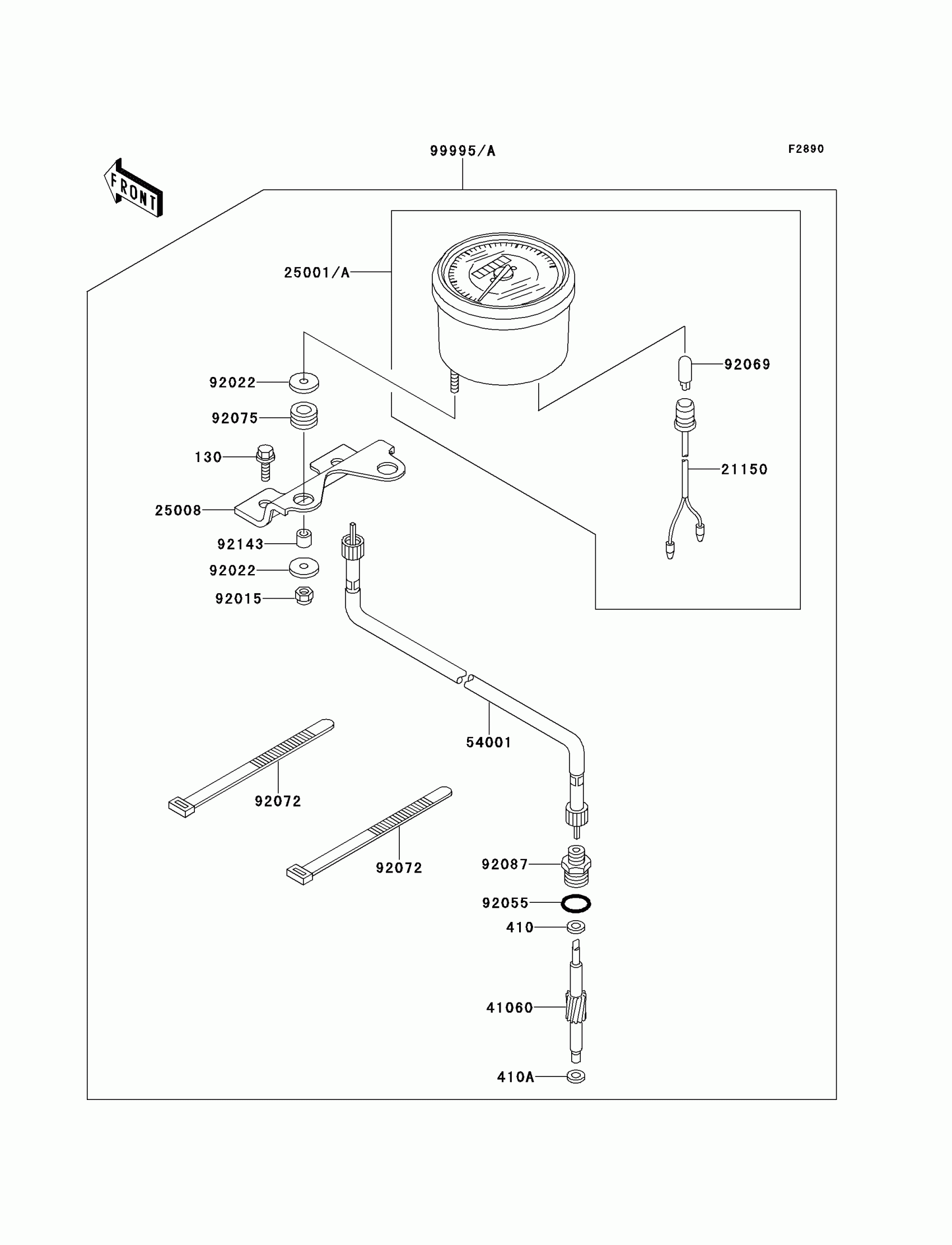

1991 Kawasaki Bayou 220 Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X12

130J0812

1
Out of stock

410

WASHER PLAIN 5MM

410B0500

1
Out of stock

410A

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

21150

CORD-ASSY,SPEEDOMETER

21150-1054

1
Out of stock

25008

BRACKET-METER

25008-1149

1
Out of stock

41060

GEAR-METER SCREW

41060-1117

1

$51.56

In stock

54001

CABLE-SPEEDOMETER

54001-1139

1
Out of stock

92015

NUT,LOCK,5MM

92015-1221

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92055

RING-O,ID=13.8

92055-1141

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92075

DAMPER

92075-1409

1
Out of stock

92087

BUSHING-METER GEAR

92087-1054

1
Out of stock

92143

COLLAR,5.5X10X8.5

92143-1235

1
Out of stock

25001

METER-ASSY,SPEED,MPH

25001-1723

1
Out of stock

25001A

METER-ASSY,SPEED,KPH

25001-1725

1
Out of stock

99995

KIT.,METER,MPH

99995-1003

1
Out of stock

99995A

KIT.,METER,KPH

99995-1004

1
Out of stock
