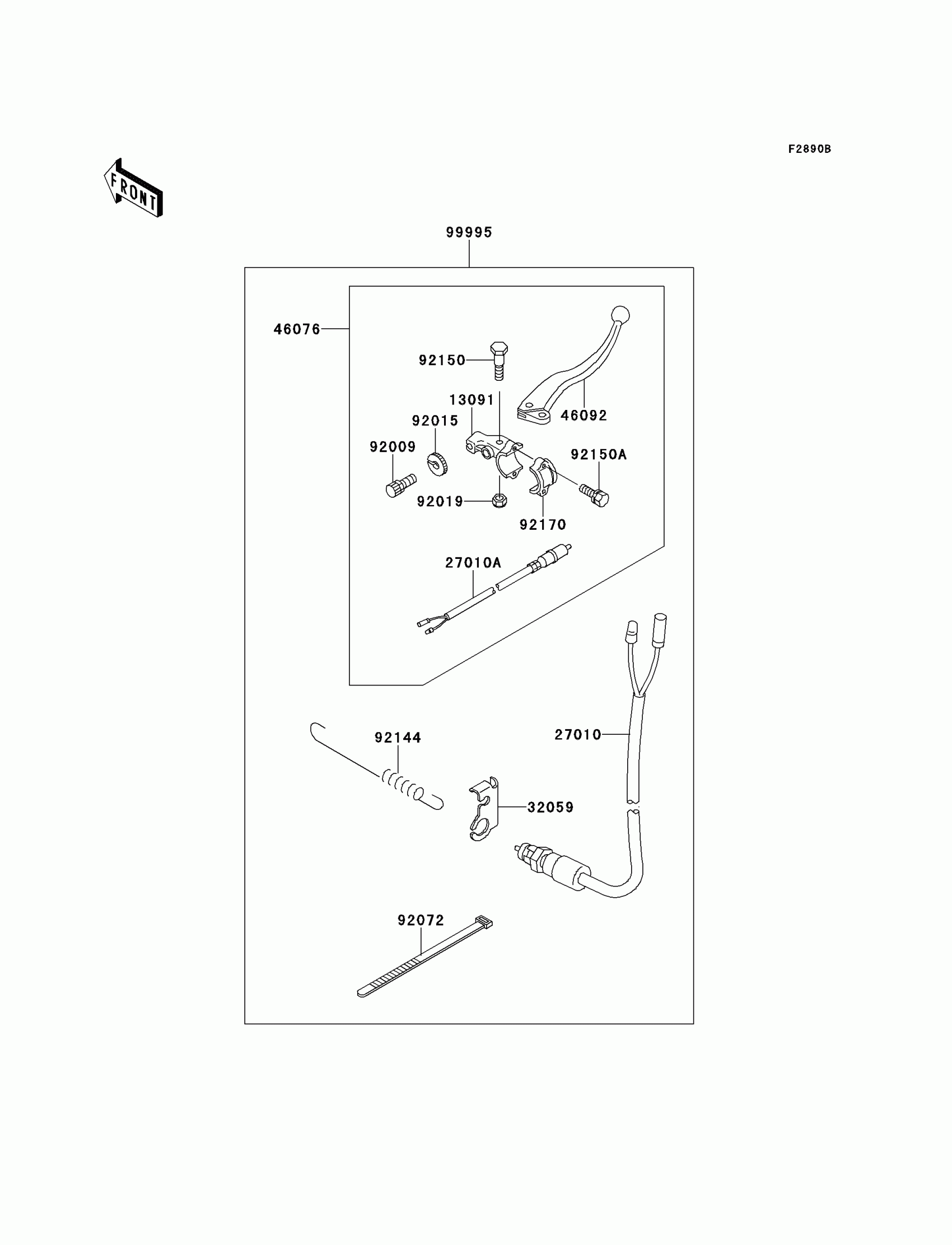

Kawasaki Bayou 220 Optional Parts(Brake Switch) Diagram

Description

Price

13091

HOLDER,LEVER,RH

13091-1719

Unavailable

27010

SWITCH,BRAKE LAMP

27010-025

$27.60

27010A

SWITCH,STOP

27010-1296

$38.89

32059

BRACKET-SWITCH,REAR BRAKE

32059-1106

$21.83

46076

LEVER-ASSY-GRIP,RH

46076-1179

$53.49

46092

LEVER-GRIP,RH

46092-1168

$18.51

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$12.92

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$7.04

92019

NUT,LOCK,6MM

92019-008

$3.36

92072

BAND,L=123

92072-030

$3.97

92144

SPRING,BRAKE PEDAL RETURN

92144-1542

$14.76

92150

BOLT

92150-1457

$8.88

92150A

BOLT

92150-1458

$8.39

92170

CLAMP,LEVER HOLDER

92170-1219

$29.40

99995

KIT.,BRAKE SWITCH

99995-1454

Unavailable
