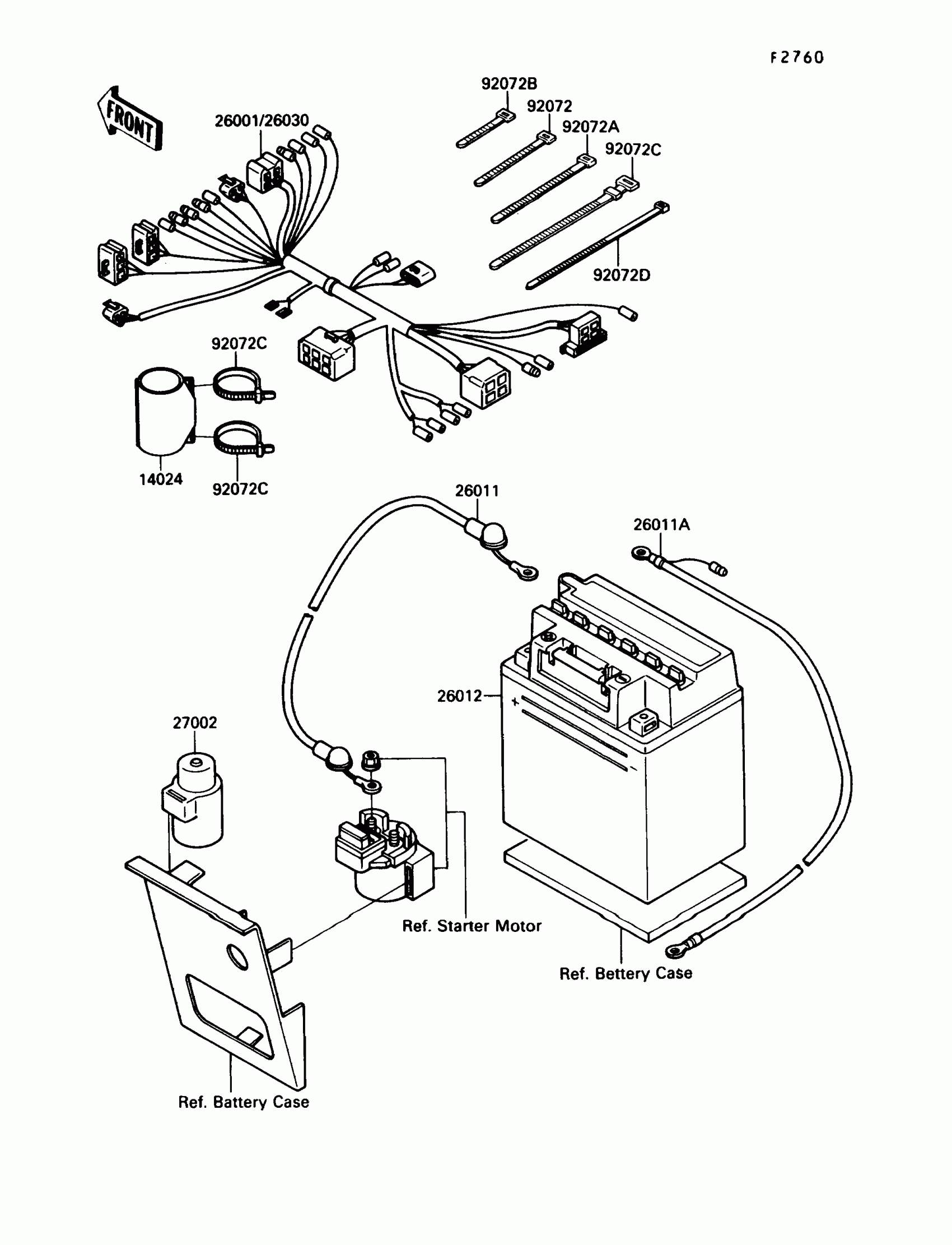

Kawasaki Bayou 220 Electrical Equipment Diagram

Description

Price

14024

COVER,COUPLER

14024-1624

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1398

$32.36

26011A

WIRE-LEAD,BATTERY(-)

26011-1399

$29.41

26012

BATTERY,12V 11AH,YB10A-A2

26012-1229

$100.04

27002

RELAY-ASSY

27002-1051

$49.55

92072A

BAND,L=149

92072-031

$3.97

92072C

BAND,L=186

92072-056

$3.97

92072D

BAND,L=188

92072-1239

$1.51

26001

HARNESS,MAIN

26001-1858

Unavailable

26030

HARNESS,MAIN

26030-1061

Unavailable

92072

BAND,L=123

92072-030

$3.97

92072

BAND,L=123

92072-030

$3.97
