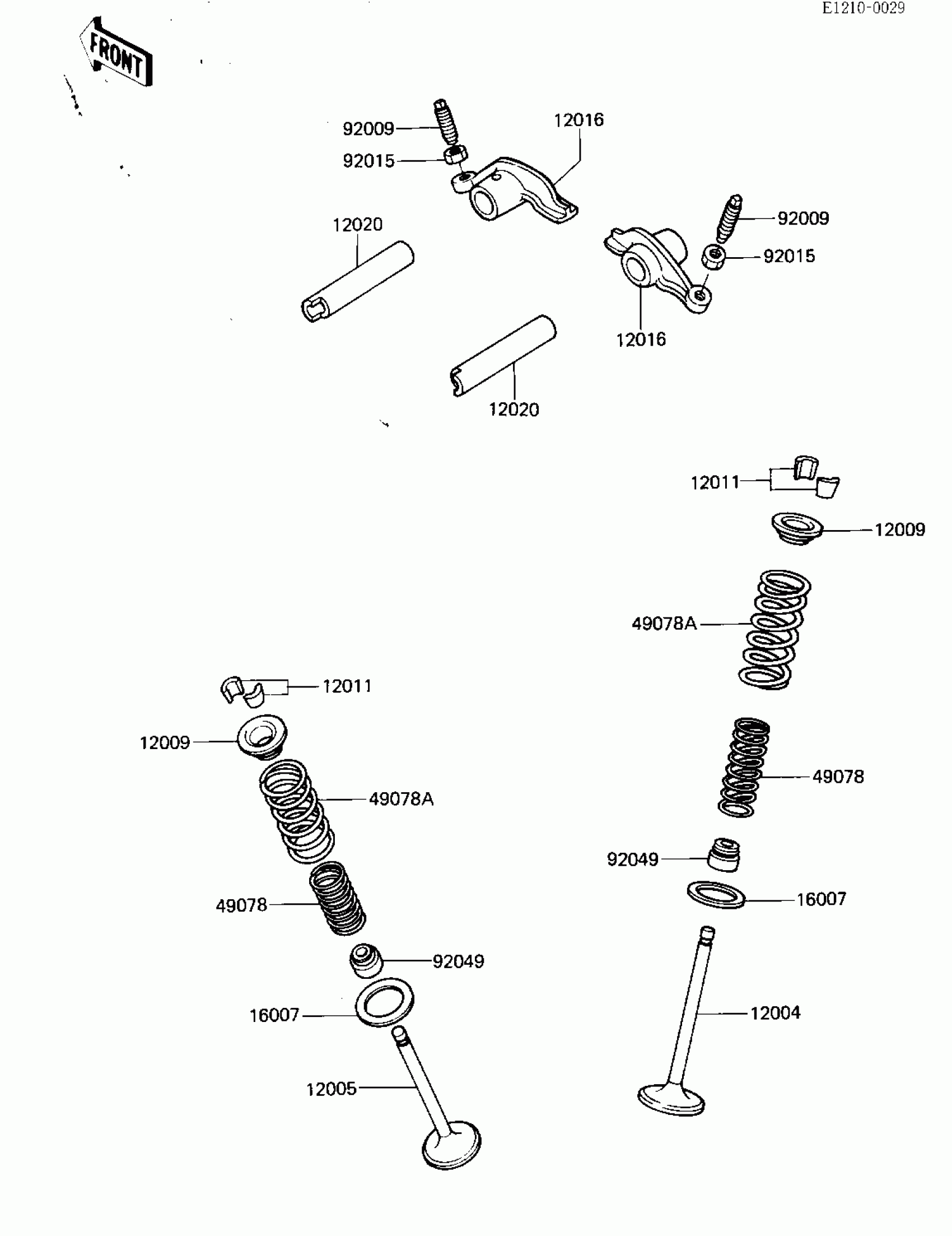

Kawasaki Bayou 185 ROCKER ARMS/VALVES Diagram

Description

Price

12004

VALVE-INTAKE

12004-1051

$43.12

12005

VALVE-EXHAUST

12005-1051

$85.29

12009

RETAINER-VALVE SPRING

12009-1001

$10.56

12011

COLLET

12011-1003

$3.69

12016

ARM-ROCKER

12016-1002

Unavailable

12020

SHAFT-ROCKER

12020-1053

$27.05

16007

SEAT-SPRING

16007-1106

Unavailable

49078

SPRING-ENGINE VALVE,INNER

12007-1001

$10.46

49078A

SPRING-ENGINE VALVE,OUTER

12007-1002

$14.24

92009

SCREW,6MM

92009-1032

Unavailable

92015

NUT,6MM

92016-061

$3.72

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$4.07
