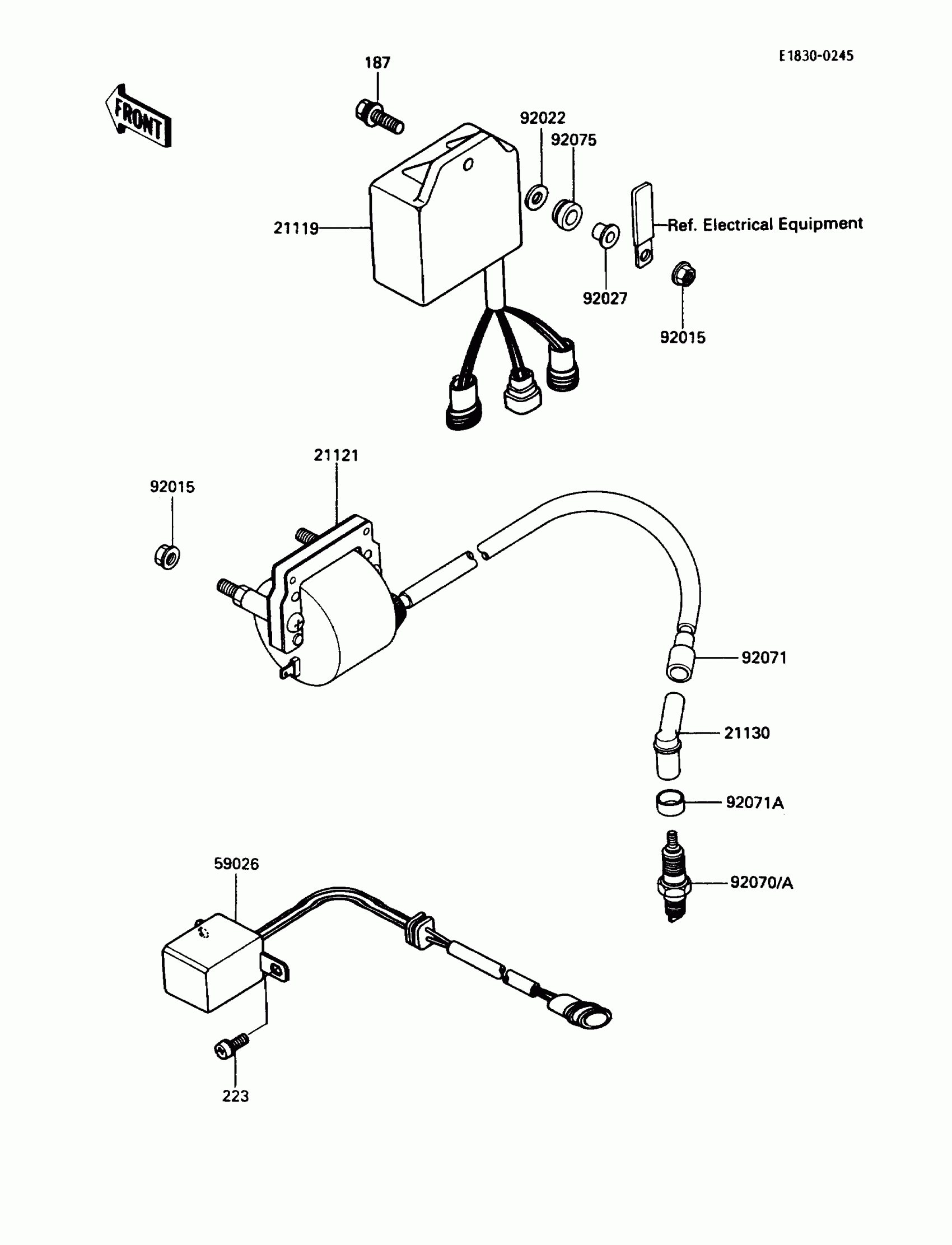

Kawasaki Bayou 185 Ignition System Diagram

Description

Price

21119

IGNITER

21119-1181

Unavailable

21121

COIL-IGNITION

21121-1121

Unavailable

21130

CAP-SPARK PLUG

21130-1003

$26.13

59026

COIL-PULSING

59026-1074

$151.26

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR

92027-1045

$4.18

92070

PLUG-SPARK,D8EA(NGK)

92070-1011

Unavailable

92071

GROMMET,HIGH TENSION

21132-005

$3.25

92071A

GROMMET,SPARK PLUG CAP

92071-1015

$3.81

92075

DAMPER

92075-277

$1.90

187

BOLT-UPSET-WSP

187B0630

$0.65

223

SCREW-PAN-WS-CROS,5X12

223B0512

Unavailable
