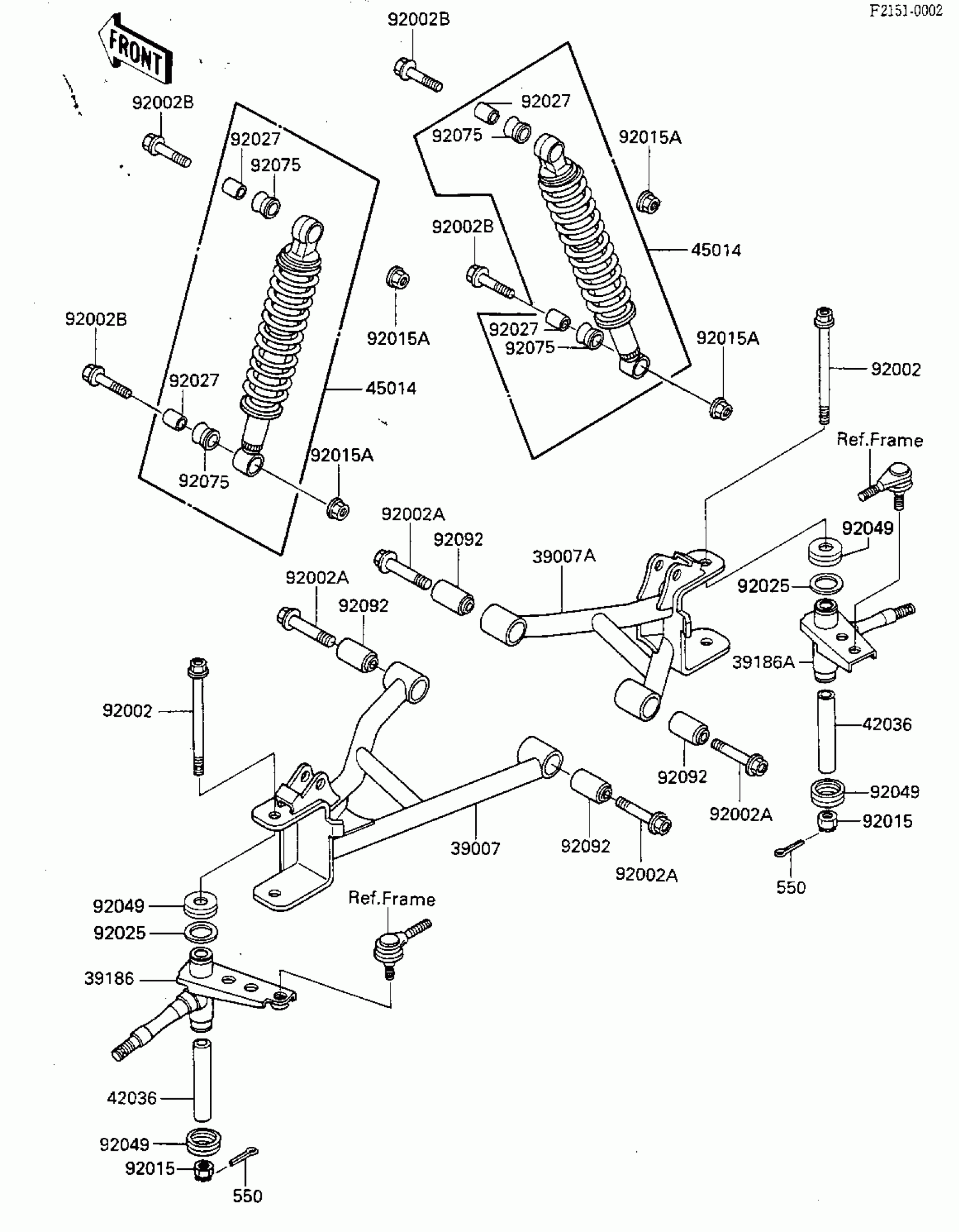

Kawasaki Bayou 185 FRONT SUSPENSION/SHOCK ABSORBERS Diagram

Description

Price

39007

ARM-SUSP,LH

39007-1060

$156.09

39007A

ARM-SUSP,RH

39007-1061

$156.09

39186

KNUCKLE,LH

39186-1051

Unavailable

39186A

KNUCKLE,RH

39186-1052

$467.98

42036

SLEEVE,KNUCKLE,L=99.6

42036-1141

$63.70

45014

SHOCKABSORBER,FR

45014-1293

$224.43

92002

BOLT,FLANGED,10X130

92002-1376

Unavailable

92002A

BOLT,FLANGED,12X60

92002-1456

$14.53

92002B

BOLT,FLANGED,10X42

92002-1545

$9.12

92015

NUT,FLANGED,10MM

92015-1415

$3.72

92015A

NUT,LOCK,10MM

92015-1597

$4.37

92025

SHIM,18X28.5X0.3

92025-1678

$7.56

92027

COLLAR,SHOCKABSORBER

92027-4024

$3.15

92049

SEAL-OIL,KNUCKLE

92049-1198

$18.30

92075

DAMPER,SHOCKABSORBER

92075-4030

$14.14

92092

BUSHING-RUBBER

92092-005

$11.16

550

PIN COTTER 2.0X15

550D2015

Unavailable
