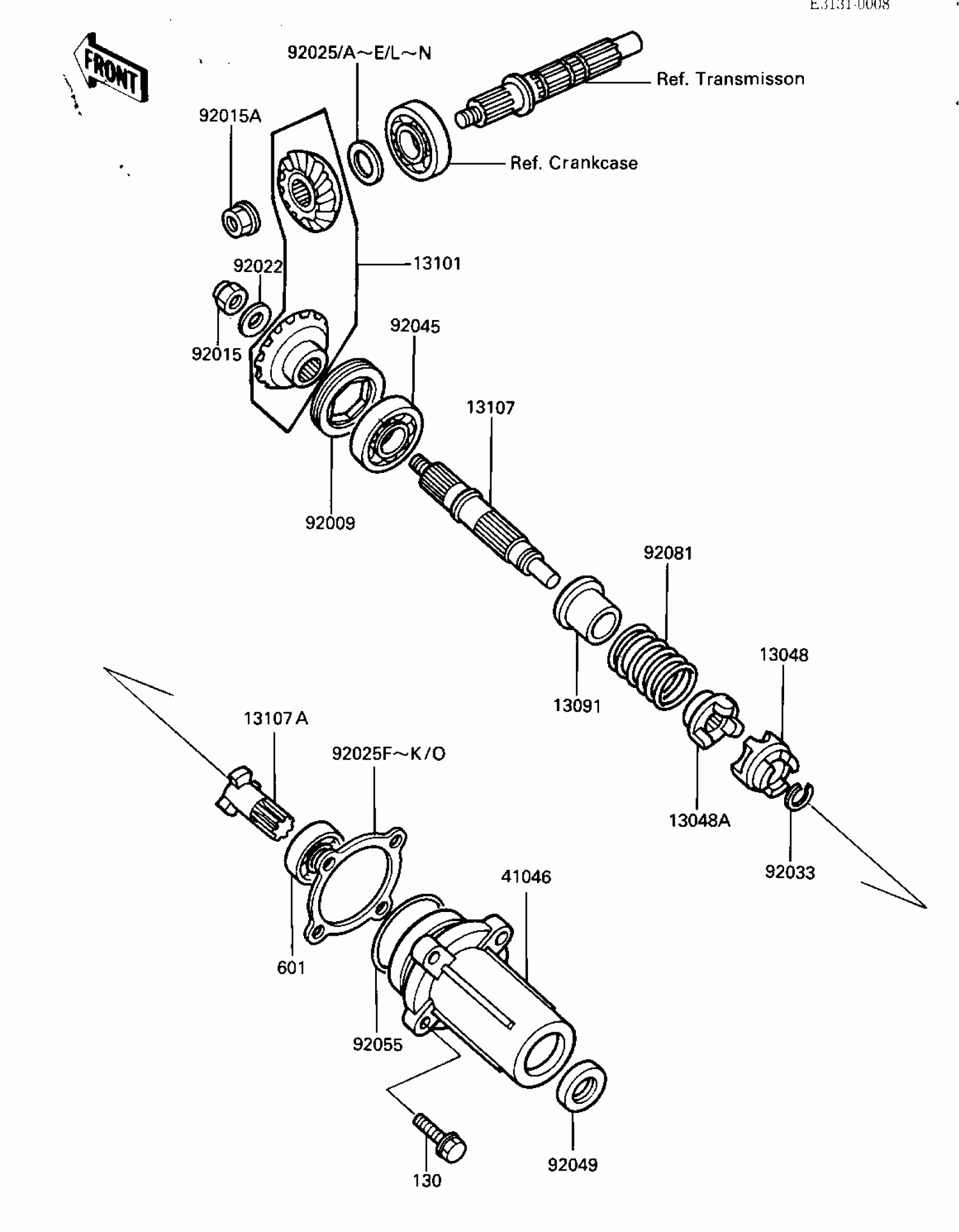

Kawasaki Bayou 185 FRONT BEVEL GEARS Diagram

#

Description
Price

13048

CAM-DAMPER

13048-1053

Unavailable

13048A

CAM-DAMPER

13048-1054

Unavailable

13091

HOLDER

13091-1278

Unavailable

13101

GEAR-ASSY,FRONT BEVEL

13101-5047

Unavailable

13107

SHAFT,BEVEL GEAR,FR

13107-1109

Unavailable

13107A

SHAFT

13107-1110

Unavailable

41046

HOUSING-BEARING,GEAR

41046-1051

$113.86

92009

SCREW

92009-1290

$25.61

92015

NUT,12MM

92015-1182

$7.69

92015A

NUT,FLANGED,14MM

92015-1341

$20.37

92022

WASHER

92022-1611

$3.54

92025

SHIM,20.3X28X1.3

92025-1533

$7.12

92025A

SHIM,20.3X28X0.7

92025-1534

$4.47

92025B

SHIM,20.3X28X0.8

92025-1535

Unavailable

92025C

SHIM,20.3X28X0.9

92025-1536

Unavailable

92025D

SHIM,20.3X28X1.0

92025-1537

Unavailable

92025E

SHIM,20.3X28X1.2

92025-1538

$5.75

92025F

SHIM,T=0.1

92025-1539

$5.75

92025G

SHIM,T=0.7

92025-1540

$3.15

92025H

SHIM,T=0.8

92025-1541

$3.15

92025I

SHIM,T=0.9

92025-1542

$3.15

92025J

SHIM,T=1.0

92025-1543

$3.24

92025K

SHIM,T=1.2

92025-1544

$3.15

92025L

SHIM,20.3X28X0.15

92025-1573

$4.85

92025M

SHIM,20.3X28X0.20

92025-1574

$4.85

92025N

SHIM,20.3X28X1.1

92025-1575

$4.47

92025O

SHIM,T=0.15

92025-1576

$3.15

92033

RING-SNAP,17MM

92033-1060

$3.39

92045

BEARING-BALL,TMB304CCM

92045-1142

$36.84

92049

SEAL-OIL

92049-1169

Unavailable

92055

RING-O,57.6X2.4

92055-1038

$6.06

92081

SPRING

92081-1647

$10.80

130

BOLT-FLANGED,8X30

130P0830

Unavailable

601

BEARING-BALL,#6004C3

601B6004

$9.84
