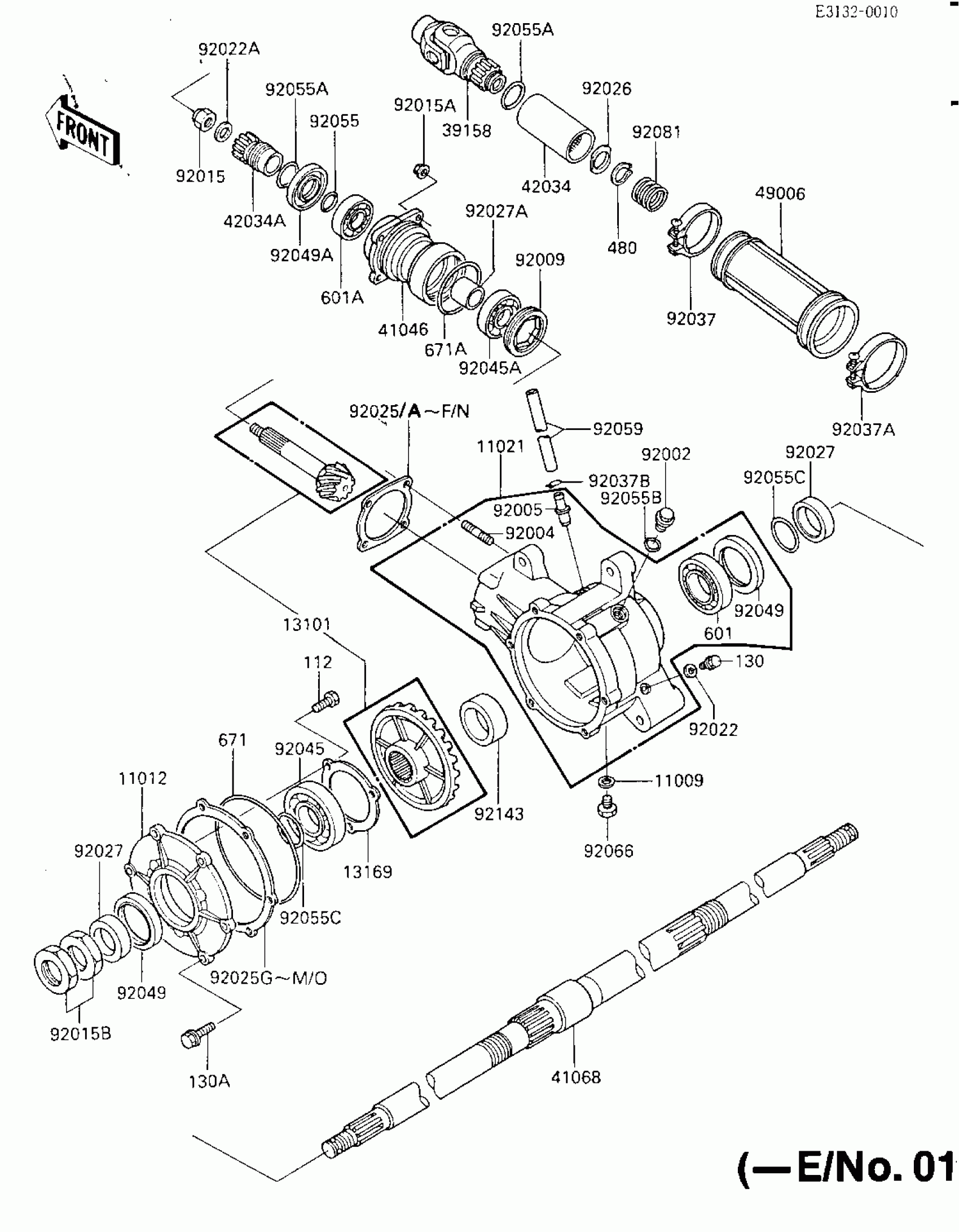

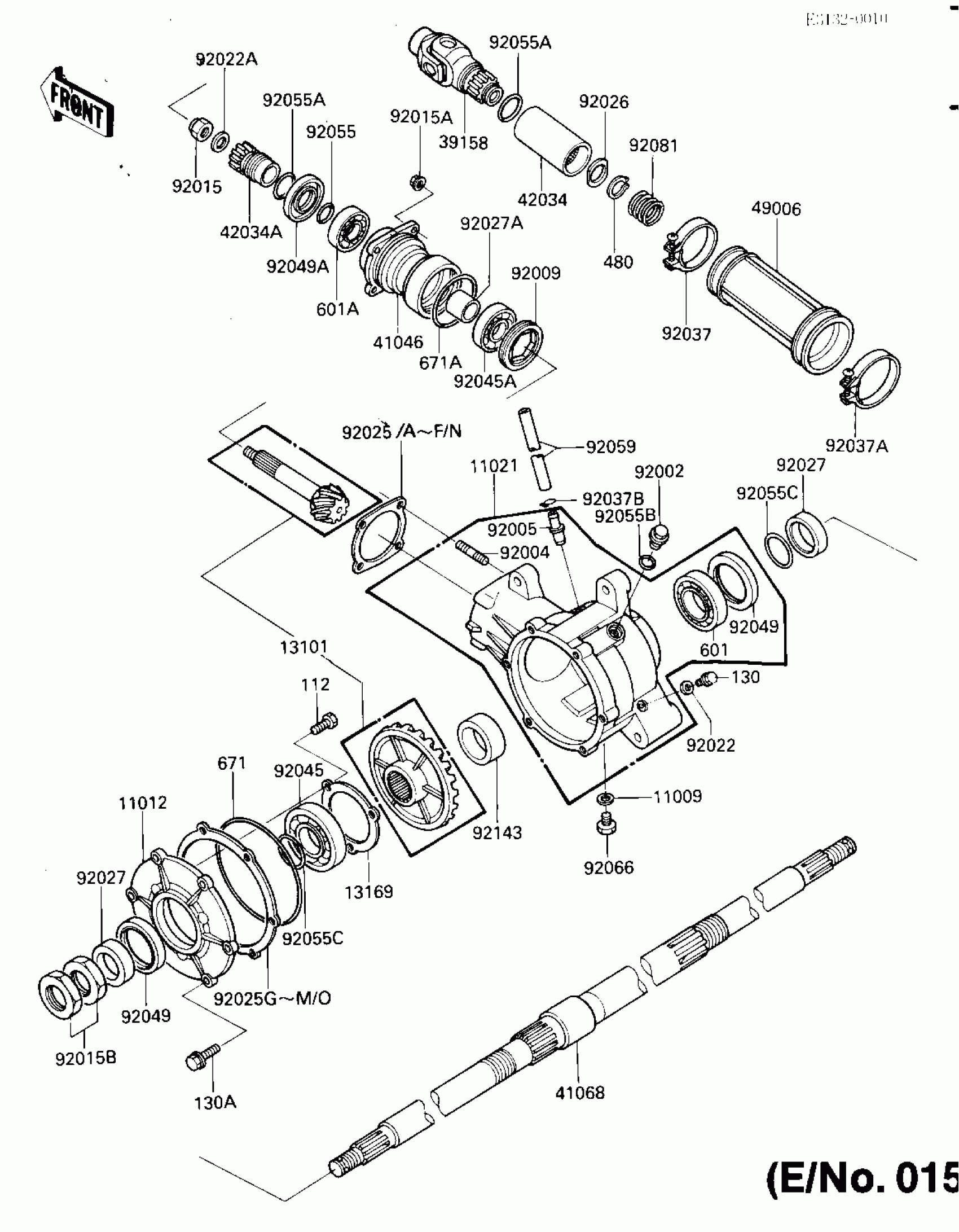

Kawasaki Bayou 185 DRIVE SHAFT/FINAL GEARS/REAR AXLE (-E/NO Diagram

#

Description
Price

11009

GASKET,10.5X16X1

92065-058

$3.16

11012

CAP

11012-1375

Unavailable

11021

CASE-ASSY,FINAL GEAR

11021-1051

Unavailable

13101

GEAR-ASSY,FINAL BEVEL

13101-5045

Unavailable

13169

PLATE

13169-1751

Unavailable

39158

SHAFT-ASSY-DRIVE

39158-1055

Unavailable

41046

HOUSING-BEARING

41046-1052

$165.26

41068

AXLE,FINAL

41068-1172

$865.07

42034

COUPLING,DRIVE SHAFT

42034-1058

$111.70

42034A

COUPLING

42034-1059

$115.24

49006

BOOT

49006-1160

Unavailable

92002

BOLT,16X10

92002-1238

$8.58

92004

STUD,6X18

92004-1127

$4.24

92005

FITTING,BREATHER

92005-1127

$16.10

92009

SCREW

92009-1290

$25.61

92015

NUT,12MM

92015-1182

$7.69

92015A

NUT,6MM

92015-1365

$3.97

92015B

NUT,LOCK,32MM

92015-1493

Unavailable

92022

WASHER OIL PUMP BANJO

92022-077

$3.13

92022A

WASHER,12.3X25X3.2

92022-1293

$5.75

92025

SHIM,T=0.1

92025-1545

Unavailable

92025A

SHIM,T=0.5

92025-1546

$5.75

92025B

SHIM,T=0.7

92025-1547

$3.15

92025C

SHIM,T=0.8

92025-1548

$3.15

92025D

SHIM,T=0.9

92025-1549

$3.15

92025E

SHIM,T=1.0

92025-1550

Unavailable

92025F

SHIM,T=1.2

92025-1551

$3.54

92025G

SHIM,T=0.1

92025-1552

Unavailable

92025H

SHIM,T=0.5

92025-1553

Unavailable

92025I

SHIM,T=0.7

92025-1554

$5.20

92025J

SHIM,T=0.8

92025-1555

$4.59

92025K

SHIM,T=0.9

92025-1556

$4.80

92025L

SHIM,T=1.0

92025-1557

Unavailable

92025M

SHIM,T=1.2

92025-1558

$5.00

92025N

SHIM,T=0.15

92025-1577

$3.54

92025O

SHIM,T=0.15

92025-1578

$3.86

92026

SPACER,DRIVE SHAFT

92026-1106

Unavailable

92027

COLLAR,L=13.5

92027-1718

Unavailable

92027A

COLLAR

92027-1724

$15.61

92037

CLAMP

92037-1523

$9.78

92037A

CLAMP

92037-1554

$10.32

92037B

CLAMP

92037-1610

$1.64

92045

BEARING-BALL

92045-1110

$35.29

92045A

BEARING-BALL,TMB304CCM

92045-1142

$36.84

92049

SEAL-OIL

92049-1167

Unavailable

92049A

SEAL-OIL

92049-1170

Unavailable

92055

RING-O,17.5X1.5

92055-022

$4.93

92055A

RING-O,27MM

92055-1119

$3.97

92055B

RING-O,ID=13.8

92055-1141

$3.12

92055C

RING-O,33X1.6

92055-4002

Unavailable

92059

TUBE,6X9X750

92059-1372

$14.65

92066

PLUG,DRAIN,10X12

92067-001

$3.50

92081

SPRING

92081-1650

$7.47

92143

COLLAR,40X50X20

92143-1003

$49.80

112

BOLT-UPSET,6X12

112G0612

Unavailable

130

BOLT-FLANGED

130H0608

Unavailable

130A

BOLT-FLANGED

130H0620

Unavailable

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.12

601

BEARING-BALL,#6007C3

601B6007

$25.09

601A

BEARING-BALL,#6204C3

601B6204

$10.76

671

O RING

671B25125

Unavailable

671A

O RING,60MM

671B2560

$5.45
