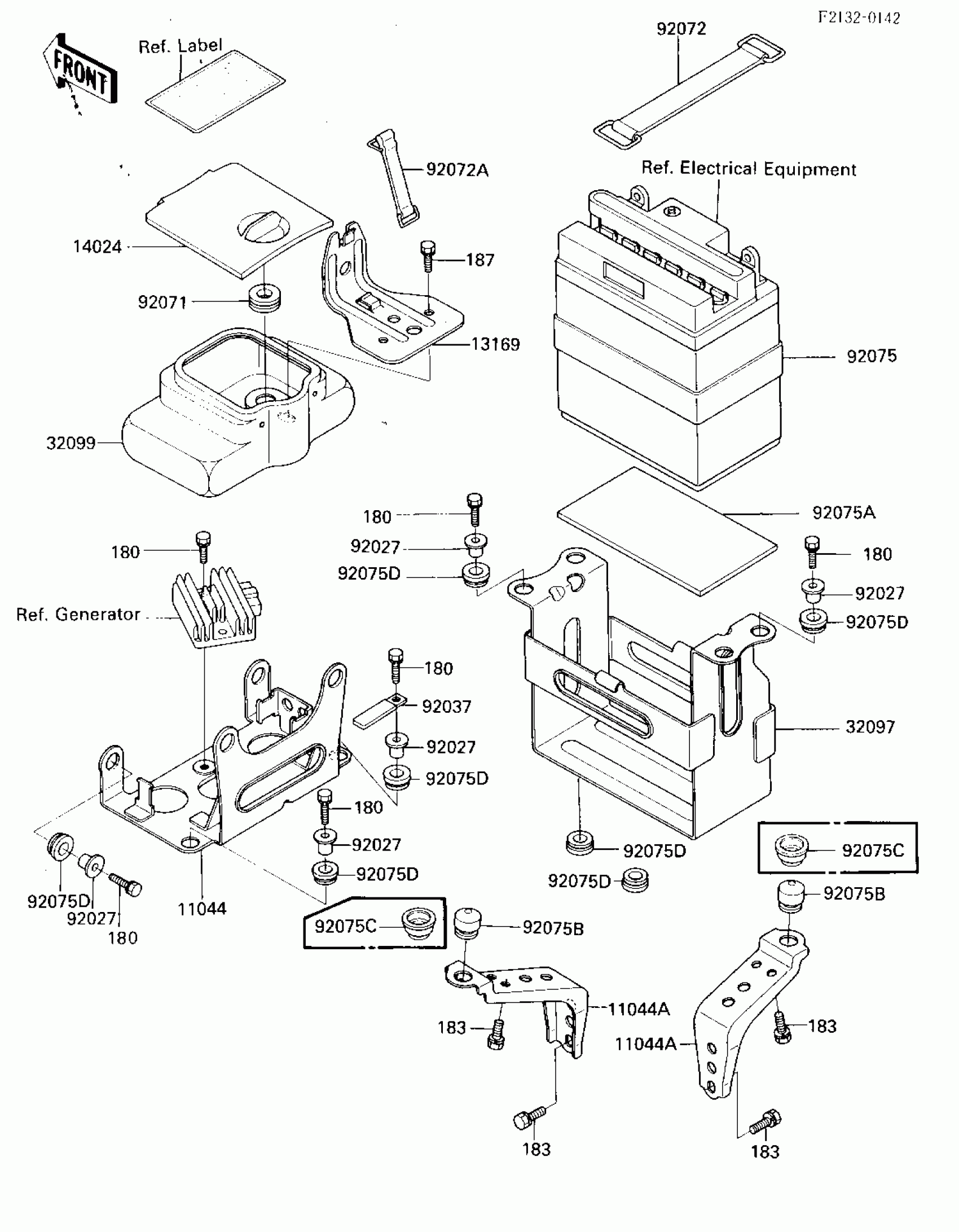

Kawasaki Bayou 185 BATTERY CASE/TOOL CASE Diagram

Description

Price

11044

BRACKET,ELECTRIC

11043-1836

Unavailable

11044A

BRACKET,CARRIER

11044-1227

Unavailable

13169

PLATE,TOOL CASE

13169-1945

Unavailable

14024

COVER,TOOL CASE,BLACK

14025-1941-6Z

Unavailable

32097

CASE-BATTERY

32097-1110

$48.37

32099

CASE,TOOL

32099-1065

$60.59

92027

COLLAR

92027-194

$4.37

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92071

GROMMET

92071-056

$3.39

92072

BAND,L=142.1

92072-006

$10.11

92072A

BAND

92072-1085

$14.27

92075

DAMPER,BATTERY BOTTOM

32103-023

Unavailable

92075A

DAMPER,BATTERY CASE

92075-1695

$6.07

92075B

DAMPER

92075-1744

$8.63

92075D

DAMPER

92075-277

$2.20

180

BOLT-UPSET-WS

180D0620

Unavailable

183

BOLT-UPSET-WS-SMALL

183J0814

Unavailable

187

BOLT-UPSET-WSP

187C0614

Unavailable
