Description

Price

2a

Torx Head Screw M6 X 16

250000717

$1.74

2a2

Touch Screen

710008093

$2,050.00

2b

Windshield Switch

710007705

$41.00

2c

Heated Grip Switch | Not Shown

710008999

$41.00

2d

Switch Hole Cap

517306808

$12.38

2f

Heated Seat Switch

710007707

$43.00

2g

Fm1 / Fm1 Dab Antenna | Not Shown

710008731

$122.00

2h

Fm2 Antenna | Not Shown

710008732

$122.00

2j

Phantom Box

710009724

$77.00

2k

External Module GPS

278004172

$190.00

2m

Torx Screw K50 X 35

250001111

$14.00

3&1

Flasher Bulb

219800304

$7.00

3&1

Flasher Bulb

219800304

$7.00

3a

Heated Grip Switch

710007706

Unavailable

3b

Heated Seat Switch

710007707

$43.00

3c

Connector Holder

710002033

$3.22

3d

Connector Holder

710002033

$3.22

3f1

Bulb 12V 10W

219800322

$9.00

4

Brake Switch | Not Shown

710009604

$50.00

6a

Wiring Harness

710009557

$17.00

8a

Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1

219800519

$203.60

8a1

Battery Bolt Kit | Not Shown

219800542

$7.31

8b

Latch

520000528

$6.60

8c

Battery Holder

710002893

$17.00

8d

Starter Relay

278003012

$35.07

8f

Hex. Elastic Stop Nut M6

232561600

$0.92

8g

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

8h

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,210.00

8h2

Shock Damper

710003279

$10.14

8k

VCM Harness Protector

710003996

$3.00

8m

Horn

710004940

$29.00

8n

Horn Support

710005769

$16.00

8p

Torx Truss M8 X 25

250000874

$1.74

8q

Hex. Flange Elastic Nut M8

233281414

$1.14

8r

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

8s1

Reverse Cable

710002889

$32.00

8s2

Actuator

710011269

$65.00

8s3

Elastic Stop Nut M4

232541414

$0.48

8s4

Socket Head Screw M4 X 40

205444056

$1.74

8s5

Pop Rivet 5/32

390403000

$0.34

8s6

Reverse Actuator Support

710005642

$31.00

8s7

Clip

270000141

$8.33

8s8

Pop Rivet 3/16"

390402400

$0.25

8t

Hex. Flange Screw M6 X 12

210261250

$1.56

8u

Actuator Motor

710007256

$228.00

8v

Hex. Flange Screw M6 X 20

207662054

$0.83

8w

Elastic Stop Nut M6

232561434

$1.55

8x

Ignition Switch | Includes 35b to 35b2

710007316

$296.00

8x1

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.00

8x1a

Key Sleeve

710003597

$26.00

8x2

DESS Antenna

219800373

$60.00

8y

Switch Cover

710009167

$16.00

8z

Switch Support

710001365

$21.00

8aa

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

8ab

Brake Pressure Switch Ass'y

710001379

$41.51

8ac

Pop Rivet

293150150

$2.31

8ad

Yaw Rate Sensor

710005658

$166.12

8af

Hex. Flange Screw M6 X 16

210261650

$1.22

9f

Open Detection

710005315

$19.00

9g

Screw-pt.flange Oval Hd.k30 X 12

250000614

$0.55

9h

Upper Rear Box Wiring Harness

710008257

$54.00

9m

USB Outlet

219400510

$40.92

9n

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

9p

Non-fonctional Rear Tail-light

520001785

$122.00

9q

Trunk Light

710001533

$68.00

9r

Clip Bracket Connector (edge)

409210100

$2.00

410a

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

1015

Antenna Ground Strap

710009889

$56.00

1040

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

1070

Hex. Flange Screw M5 X 10

207551044

$3.38

1075

Flange Elastic Nut M5

233251434

$1.66

1080

Hex. Flange Screw M5 X 10

207551044

$3.38

1085

Flange Elastic Nut M5

233251434

$1.66

1150

Dess Module

710004916

$180.00

1153

Wire Support

710004308

$13.00

1154

Hex. Forming Screw M6 X 10

210261050

$1.42

1155

Hexagonal Head Screw

210262050

$1.74

1156

Flat Washer 6 mm

234062410

$0.64

1160

Rubber Bumper

293830091

$8.29

2000

Pos Cable

710008074

$85.00

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

2021

Serrated Lock Washer 8 mm

234481608

$1.09

2160

Stainless Flat Washer M6

234061600

$0.25

2161

Elastic Stop Nut M6

232561434

$1.55

2250

Battery Wiring Harness | Includes 2250 to 2250r

710007687

$100.00

2250a

Hex. Screw M6 X 14

207161444

$0.48

2250b

Protector Cap

710000393

$8.98

2250j

Battery Guard

710002945

$13.00

2250m

Fuse Holder Support

710008098

$24.00

2250n

Fuse Holder Cover

710008154

$43.00

2250p

Fuse 80 A

710008102

$15.35

2250q

Fuse Holder Support

710008098

$24.00

2250r

Fuse Holder Cover

710008154

$43.00

2262

Hex. Flange Screw M6 X 12

210261250

$1.56

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$0.91

2272

Lock Washer Helical M6

234161601

$0.92

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$0.91

2282

Lock Washer Helical M6

234161601

$0.92

4042

Lock

710001222

$1.68

4085

Trim 1000Mm Long

219704354

$14.74

4200

Harness Holder

710004931

$2.00

4210

Tuflock Phillips Plastic Screw

414745900

$1.30

4360

Fuse Holder Support

710004472

$9.29

4361

Hex. Flange Screw M6 X 12

210261250

$1.56

5001

Lock Washer 8 mm, Stainless

234181601

$0.46

5002

Hex. Nut M8

232081414

$0.60

5400

Tank Cable

710004849

$19.00

5410

Lock Washer Serrated M6

250200041

$0.92

5420

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.57

5421

Washer

250200111

$1.74

8604

Connector Holder

710002033

$3.22

8605

Connector Clamp

293730116

$5.00

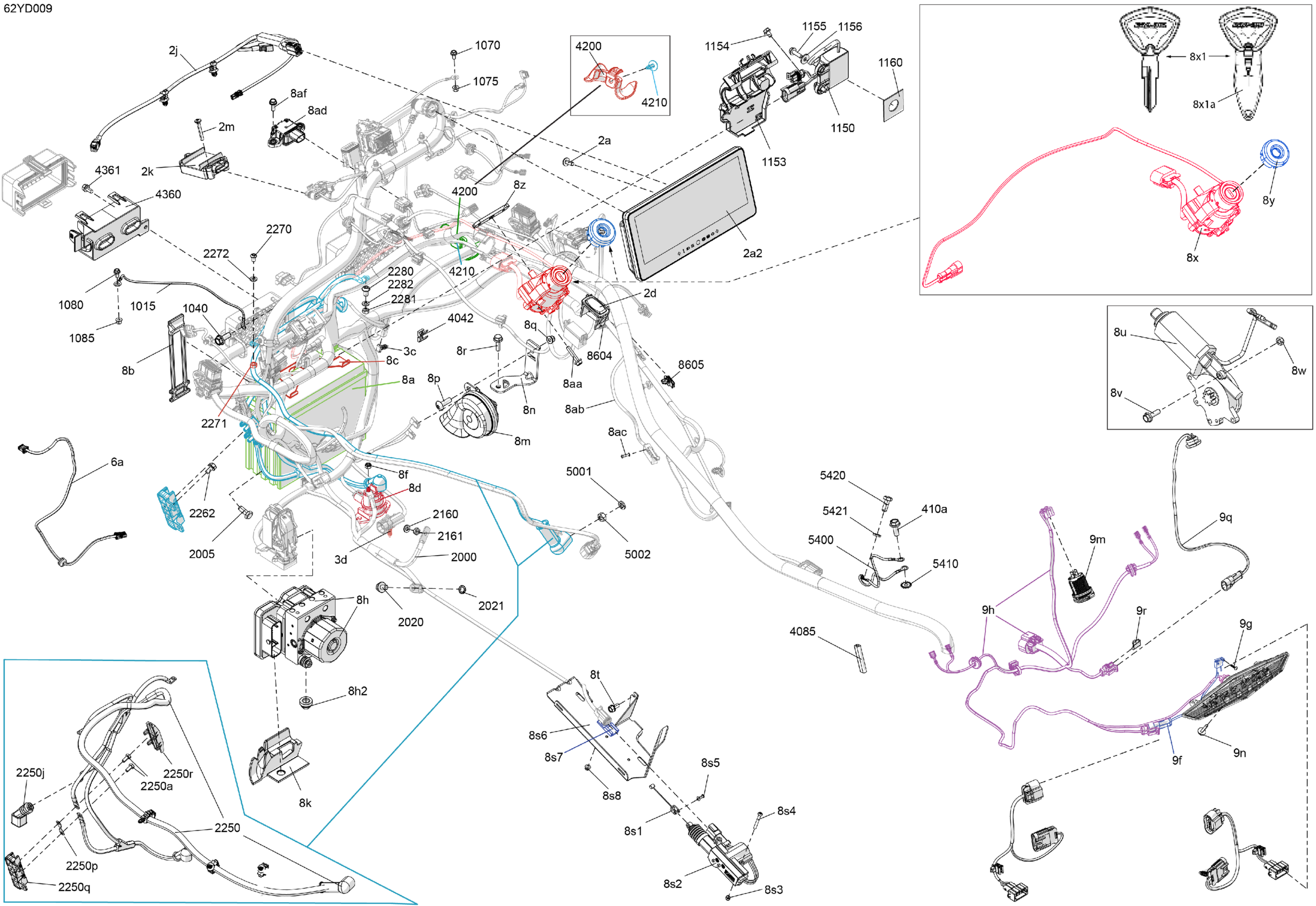

Can-Am Australia - RT LIMITED - Dark Edition - G1RF - LIMITED - Carbon Black, 2024 Electric - System Diagram
