Description

Price

100

LH Console Support

708400712

$64.00

110

Panel Nut M6 X 1.0

250100208

$1.07

120

Seal 1000Mm Long

219704373

$8.29

200

LH Front Speaker Support

708400377

$17.00

210

Torx Screw K50 X 16

250000720

$1.39

300

RH Console Support

219401277

Unavailable

310

Panel Nut M6 X 1.0

250100208

$1.07

320

Seal 1000Mm Long

219704373

$8.29

400

RH Front Speaker Support

708400378

$17.00

410

Torx Screw K50 X 16

250000720

$1.39

500

Torx Screw M6 X 25

250000758

$1.74

510

Hex. Flange Elastic Nut M6

233261494

$1.26

1300

Windshield Support Ass'y | Included 1300 to 1300p

705016962

$730.00

1300b

Windshield Lifting Arm Repair Kit

705013108

$91.00

1300c

Rear Arm Ass'y

219800432

$84.00

1300c2

Sleeve

705003267

$9.00

1300c3

Inner Sleeve

705004260

Unavailable

1300d

Sleeve

705003267

$9.00

1300f

Hex. Screw M6 X 50

207065060

$1.85

1300g

Elastic Stop Nut M6, Brass

232561200

$3.51

1300h

Stainless Flat Washer M6

234061600

$0.25

1300m

Windshield Motor

278002579

$184.57

1310

Screw PT K60 X 30

250000949

$1.74

1400

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$28.00

1400b

Spring

705006661

$3.00

1410

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1500

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$28.00

1500b

Spring

705006661

$3.00

1510

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1700

LH Console Fairing

708400597

$47.00

1710

Torx Truss PT K40 x 12

250001131

$1.74

1720

Tuflok Plastic Rivet

293150230

$1.21

1730

LH Fairing Support

708400900

$6.00

1800

RH Console Fairing

708400598

$47.00

1810

Torx Truss PT K40 x 12

250001131

$1.74

1820

Tuflok Plastic Rivet

293150230

$1.21

1830

RH Fairing Support

708400901

$6.00

2010

Deep Black, LH Upper Speaker Grille

708400704

$5.00

2015

Deep Black, LH Upper Speaker Trim

708400706

$49.00

2020

Deep Black, RH Upper Speaker Grille

708400705

$5.00

2025

Deep Black, RH Upper Speaker Trim

708400707

$3.00

2030

Torx Truss PT K40 x 12

250001131

$1.74

2040

Deep Black, LH Lower Speaker Grille

708400355

$13.00

2045

Deep Black, LH Lower Speaker Trim

708400806

$52.00

2050

Deep Black, RH Lower Speaker Grille

708400356

$5.00

2055

Deep Black, RH Lower Speaker Trim

708400807

$2.00

2300

FAIRING_CONSOLE B-160 CLEANED - Call your local BRP dealership | Includes 2300 to 2300a

708400898

Unavailable

2300a

Deep Black, Console Fairing

708400899

$170.00

2310

Torx Truss PT K40 x 12

250001131

$1.74

2315

Torx Truss PT K40 x 12

250001131

$1.74

2320

Tuflok Plastic Rivet

293150230

$1.21

2330

Torx Screw K50 X 16

250000720

$1.39

2335

Torx Screw K50 X 16

250000720

$1.39

2400

LH Front Rear View Mirror Trim

708400601

$5.00

2500

RH Front Rear View Mirror Trim

708400602

$5.00

2900a

LH Mirror Support

708400224

$34.00

2900b

Flat Head Stud M5

705006733

$21.00

2900c

Stud Ball M5

708400538

$18.00

2900d

Flange Elastic Nut M5

233251434

$1.66

2900f

Torx Truss PT K40 x 12

250001131

$1.74

2900g

Edge Clip

517302785

$0.70

2900h

LH Front Flasher Unit

710006197

$164.00

3000

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$145.00

3000f

Spring

705010625

$11.00

3000g

Hex. Elastic Stop Nut M6

232561600

$0.92

3010

Torx Truss PT K40 x 12

250001131

$1.74

3100

Deep Black, LH Rear View Mirror Trim

708400505

$115.00

3110

Clip

517306478

$1.37

3200a

RH Mirror Support

708400225

$34.00

3200b

Flat Head Stud M5

705006733

$21.00

3200c

Stud Ball M5

708400538

$18.00

3200d

Flange Elastic Nut M5

233251434

$1.66

3200f

Torx Truss PT K40 x 12

250001131

$1.74

3200g

Edge Clip

517302785

$0.70

3200h

RH Front Flasher Unit

710006198

$164.00

3300

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$145.00

3300f

Spring

705010625

$11.00

3300g

Hex. Elastic Stop Nut M6

232561600

$0.92

3310

Torx Truss PT K40 x 12

250001131

$1.74

3400

Deep Black, RH Rear View Mirror Trim

708400506

$115.00

3410

Clip

517306478

$1.37

3500

Hex. Flange Screw M6 X 16

210261650

$1.22

3505

Hex. Flange Screw M6 X 16

210261650

$1.22

3520

Flat washer M6

250200164

$0.83

3600

Hex. Flange Screw M6 X 16

210261650

$1.22

3605

Hex. Flange Screw M6 X 16

210261650

$1.22

3620

Flat washer M6

250200164

$0.83

3700

Central Fairing

705017370

$31.00

3800

Front Switch Housing

708400555

$7.00

3900

Black, Headlights Central Fairing

708201070

$29.00

3910

Edge Clip

517302785

$0.70

4200

Carbon Black, Windshield Support

708400223

$215.00

4210

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

4215

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

4220

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

4220b

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

4230

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

4230b

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

4235

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$48.00

4235b

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

4400

Smoked Windshield, 75% Light Trans.

708400409

$400.00

6510

Torx Truss Screw M6 X 20

250000350

$4.39

6511

Flat washer M6

250200164

$0.83

6512

Rubber Washer M6

250200189

$3.00

6520

Panel Nut M5 X 0.8

250000958

$3.48

6521

Torx Screw M5 X 25

250000455

$3.00

6522

LH Soft Shim Protector

293830206

$11.00

6524

RH Soft Shim Protector

293830207

$11.00

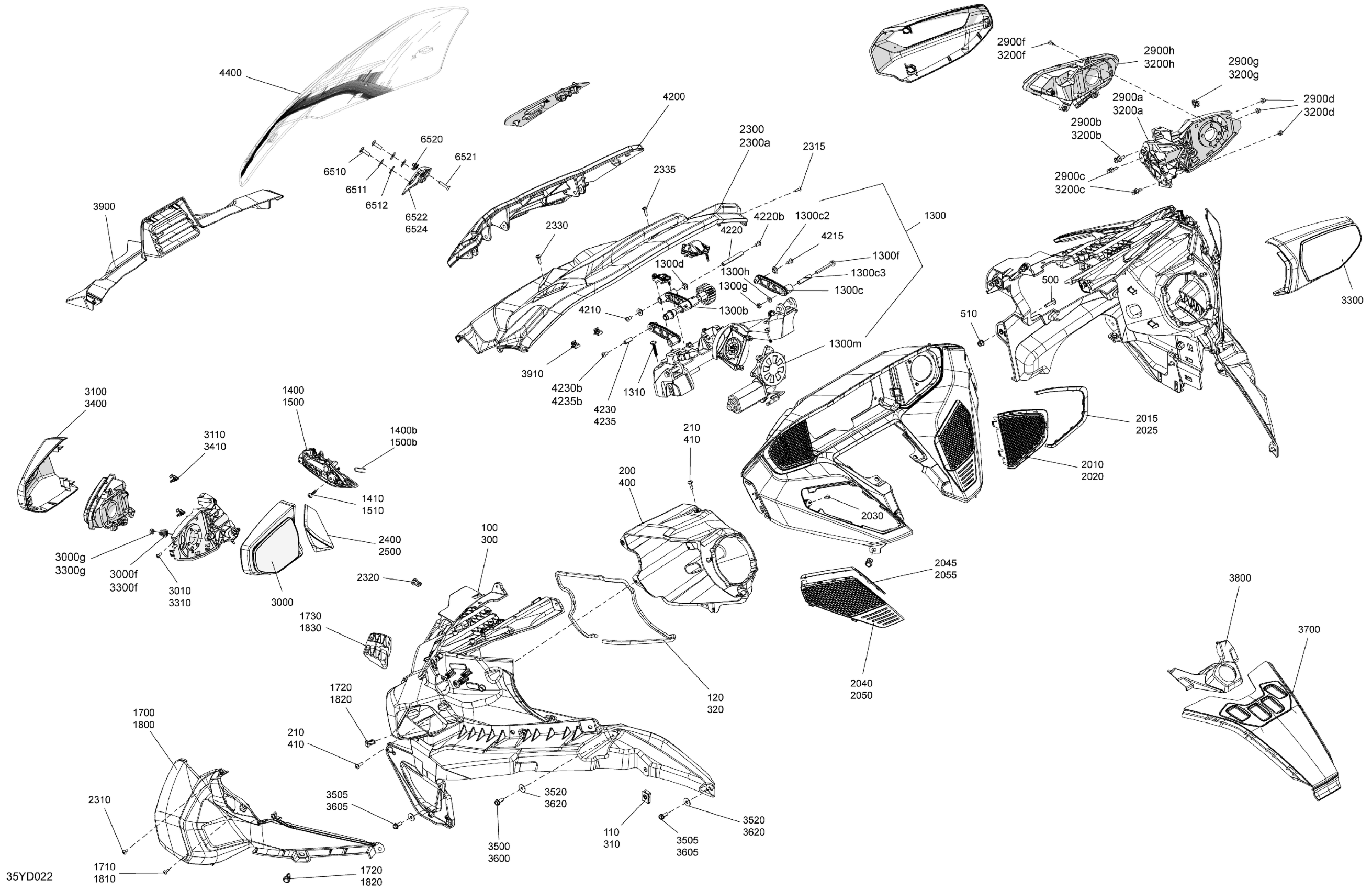

Can-Am Australia - RT LIMITED - Dark Edition - G1RF - LIMITED - Carbon Black, 2024 Body - Console Diagram

RH Console Support

Inner Sleeve

FAIRING_CONSOLE B-160 CLEANED - Call your local BRP dealership | Includes 2300 to 2300a
