1972 Yamaha AT2M_ATMX (AT2M) Flywheel Diagram

← All diagrams

Find the part on the Flywheel diagram for your 1972 Yamaha AT2M_ATMX (AT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

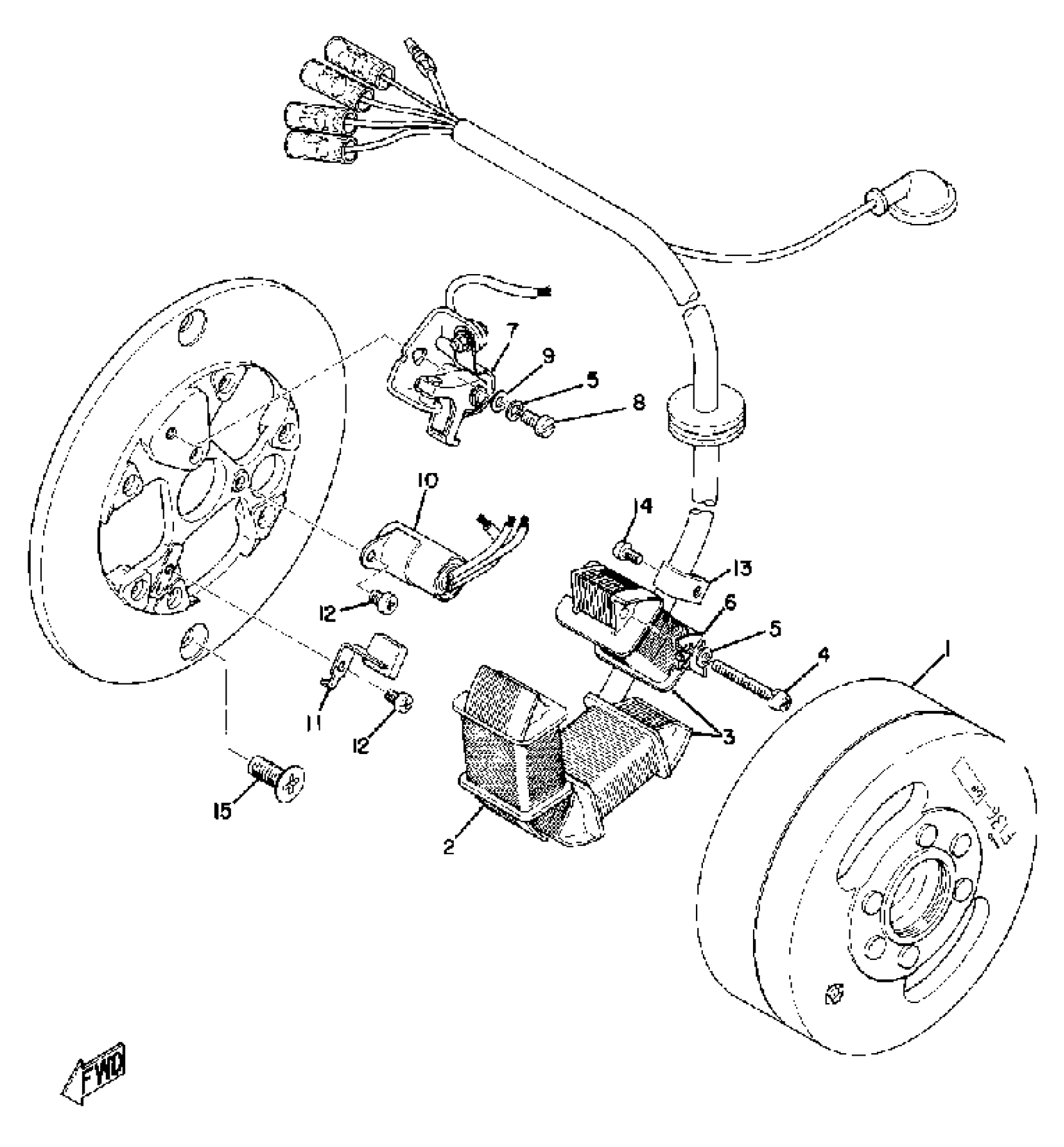

1972 Yamaha AT2M_ATMX (AT2M) Flywheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHL MAGNETO ASSEMBLY

(314-81300-10-00)

1
Out of stock

1

ROTOR ASSEMBLY

(315-81350-10-00)

1
Out of stock

2

. COIL, SOURCE

277-81312-10-00

1
Out of stock

3

COIL, LIGHTING 1

(314-81313-10-00)

1
Out of stock

4

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

PLATE, TIMING

(277-81332-10-00)

1
Out of stock

7

. CONTACT BREAKER ASSY

207-81321-90-00

1
Out of stock

8

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

9

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

10

. CONDENSER 2

277-81326-90-00

1
Out of stock

11

. LUBRICATOR

207-81331-10-00

1
Out of stock

12

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

13

. CLAMP

109-81328-11-00

1
Out of stock

14

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

15

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock
