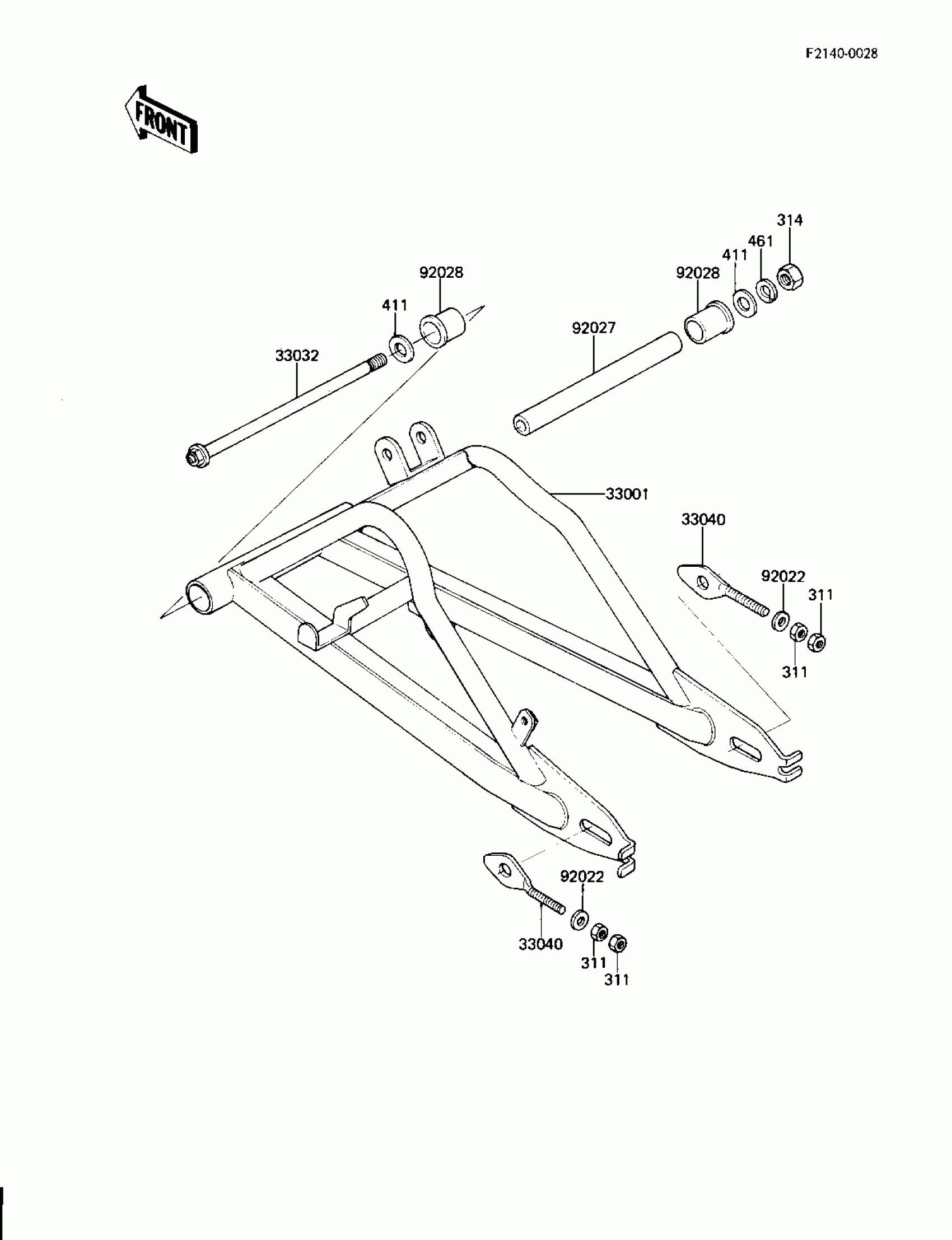

Kawasaki AR80-A1 SWING ARM Diagram

#

Description

Price

33001

ARM-COMP-SWING

33001-1072

$205.45

33032

SHAFT-SWING ARM,10X21

33032-1018

$43.81

33040

ADJUSTER CHAIN

33040-008

Unavailable

92022

WASHER,6.5X16X2

92022-1565

$2.99

92027

COLLAR,12.7X17.3X132.

92027-1309

Unavailable

92028

BUSHING,L=25

92028-1359

$17.98

311

NUT 6MM

311B0600

Unavailable

314

NUT-HEX-FINE,10MM

314B1000

Unavailable

411

WASHER-PLAIN,10MM

411B1000

Unavailable

461

WASHER SPRING 10MM

461F1000

Unavailable
