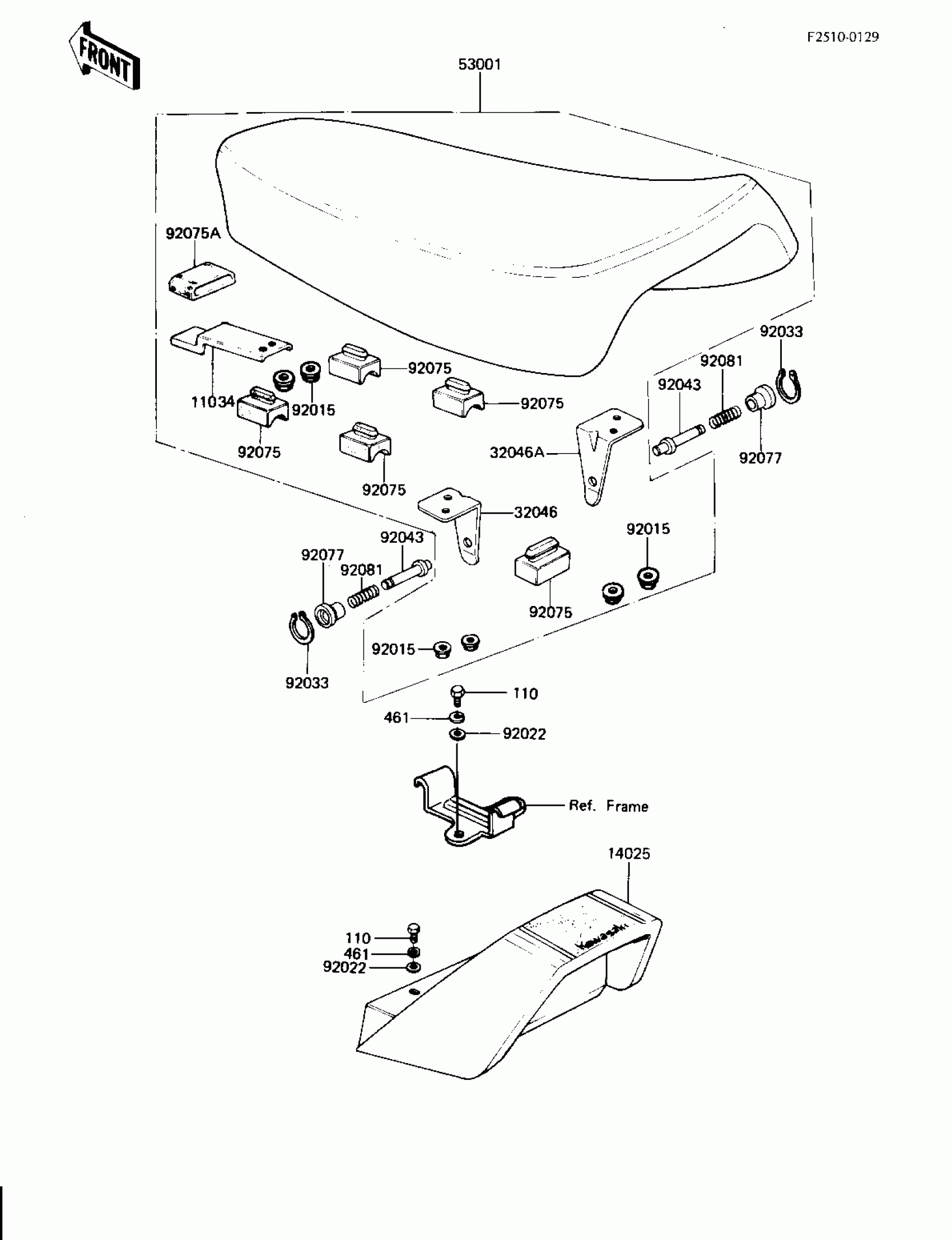

Kawasaki AR80-A1 SEAT/SEAT COVER Diagram

Description

Price

11034

BRACKET,SEAT,FR

11034-1427

Unavailable

14025

COVER,SEAT,F.RED

14025-1275-6L

Unavailable

32046

BRACKET-SEAT,LH

32046-1111

$7.29

32046A

BRACKET-SEAT,RH

32046-1112

$6.19

53001

SEAT-ASSY,DUAL

53001-1100

$228.87

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92033

RING-SNAP,8MM

92033-1039

$3.25

92043

PIN,SEAT STOPPER

92043-1036

$5.93

92075

DAMPER,SEAT

92075-1153

$3.98

92075A

DAMPER,SEAT

92075-219

Unavailable

92077

KNOB,SEAT STOPPER

92077-1007

$5.56

92081

SPRING,SEAT STOPPER

92081-1135

$3.78

110

BOLT-UPSET

112G0618

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
