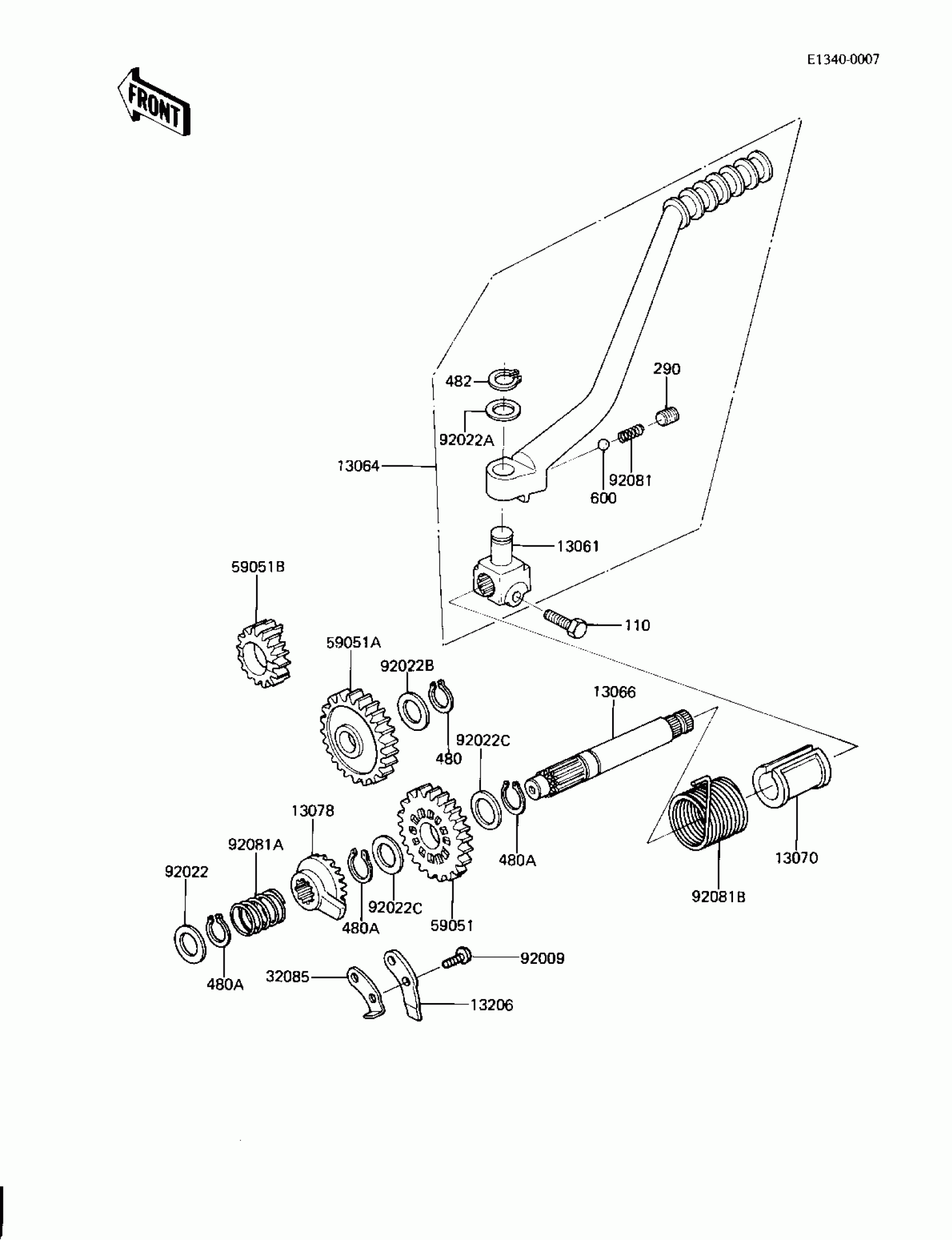

Kawasaki AR80-A1 KICKSTARTER MECHANISM Diagram

#

Description
Price

13061

BOSS,KICK LEVER

13061-1049

Unavailable

13064

LEVER-ASSY-KICK,PEDAL

13064-1167

Unavailable

13066

SHAFT-KICK

13066-1016

Unavailable

13070

GUIDE,KICK SHAFT

13070-1035

$6.08

13078

RATCHET

13078-1001

$60.70

13206

GUIDE-KICK

13206-1002

Unavailable

32085

STOPPER,KICKSTARTER

32085-1027

$8.80

59051

GEAR-SPUR,KICK

59051-1029

Unavailable

59051A

GEAR,KICKSTARTER IDLE,35T

59051-1204

Unavailable

59051B

GEAR-SPUR,22T

59051-1031

$42.45

92009

SCREW,TAPPING

92009-1104

$3.15

92022

WASHER,13.2X20X0.5

92022-1224

$3.29

92022A

WASHER,12.2X20X1.6

92022-1236

Unavailable

92022B

WASHER,12.3X20X0.5

92022-269

$0.98

92022C

WASHER,16.8X22X0.5

92022-315

$4.67

92081

SPRING,KICK PEDAL

92081-020

$3.25

92081A

SPRING,RATCHET

92081-122

$6.70

92081B

SPRING,KICK STARTER

92081-1276

$9.85

110

BOLT-UPSET,6X20

112G0620

Unavailable

290

SCREW-SET-SOCKET,8X8

290Q0808

$4.25

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

480A

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

482

CIRCLIP-TYPE-E,8MM

482K8000

Unavailable

600

BALL-STEEL,1/4

600A0800

$0.59
