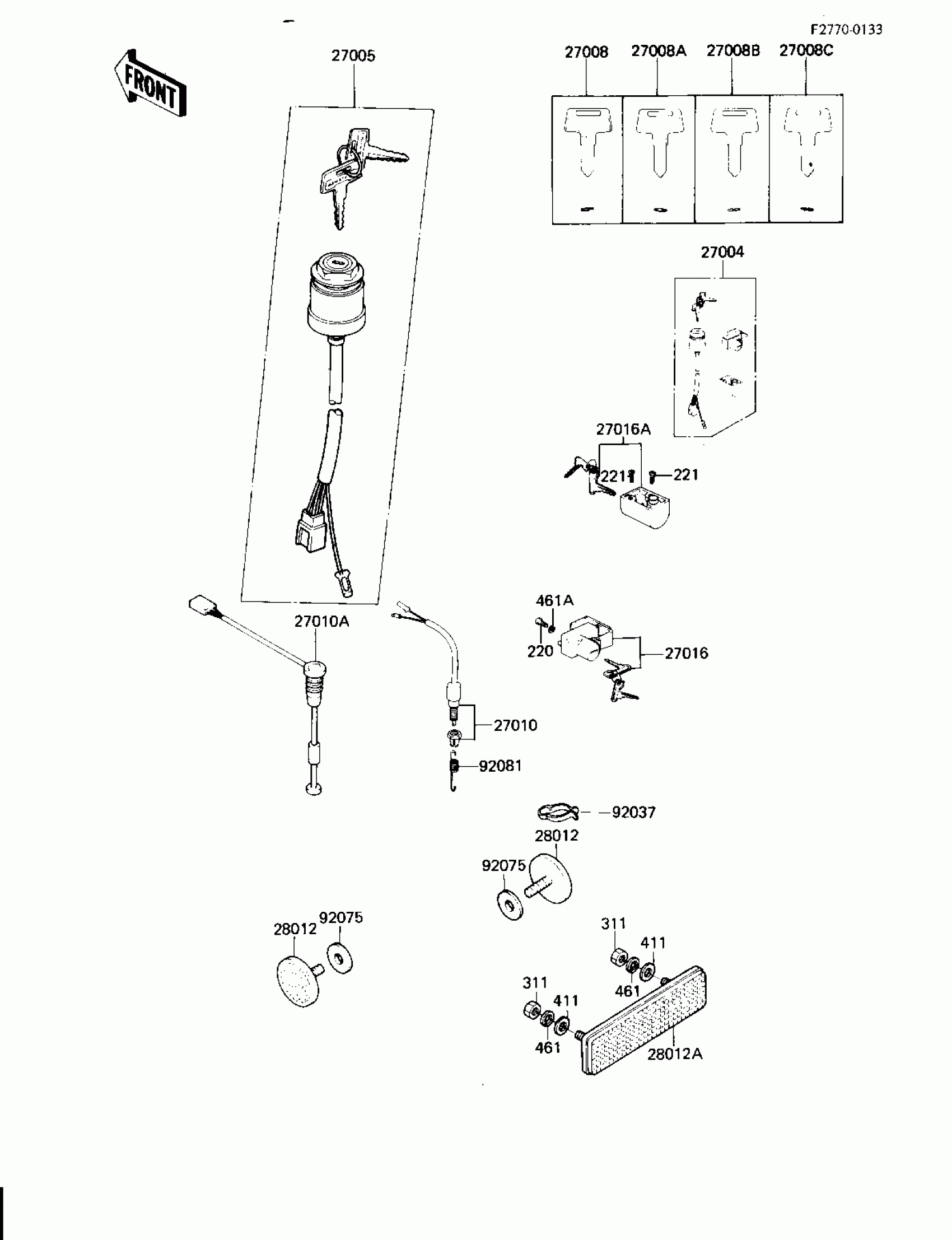

Kawasaki AR80-A1 IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

27004

SWITCH-ASSY

27004-5172

$67.53

27005

SWITCH-ASSY-IGNITION

27005-1067

$63.44

27008

KEY-LOCK,BLANK

27008-1041

$13.56

27008A

KEY-LOCK,BLANK

27008-1042

$13.56

27008B

KEY-LOCK,BLANK

27008-1043

$13.56

27008C

KEY-LOCK,BLANK

27008-1044

$16.83

27010

SWITCH,BRAKE LAMP

27010-025

$26.96

27010A

SWITCH,OIL LEVEL

27010-1049

Unavailable

27016

LOCK-ASSY,HELMET

27016-5040

$36.76

27016A

LOCK-ASSY,STEERING

27016-5041

$36.42

28012

REFLECTOR-REFLEX,FR

28012-016

$18.77

28012A

REFLECTOR-REFLEX,RR

28012-1005

$28.89

92037

CLAMP,CLUTCH CABLE

92037-1086

Unavailable

92075

DAMPER,REFLECTOR

92094-011

$4.08

92081

SPRING,BRAKE LAMP SWITCH

27011-006

$4.14

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

221

SCREW-CSK-CROS,6X10

221B0610

$2.79

311

NUT-HEX

311B0500

$0.47

411

WASHER-PLAIN,5MM

411B0500

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable
