1982 Kawasaki AR80-A1 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1982 Kawasaki AR80-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

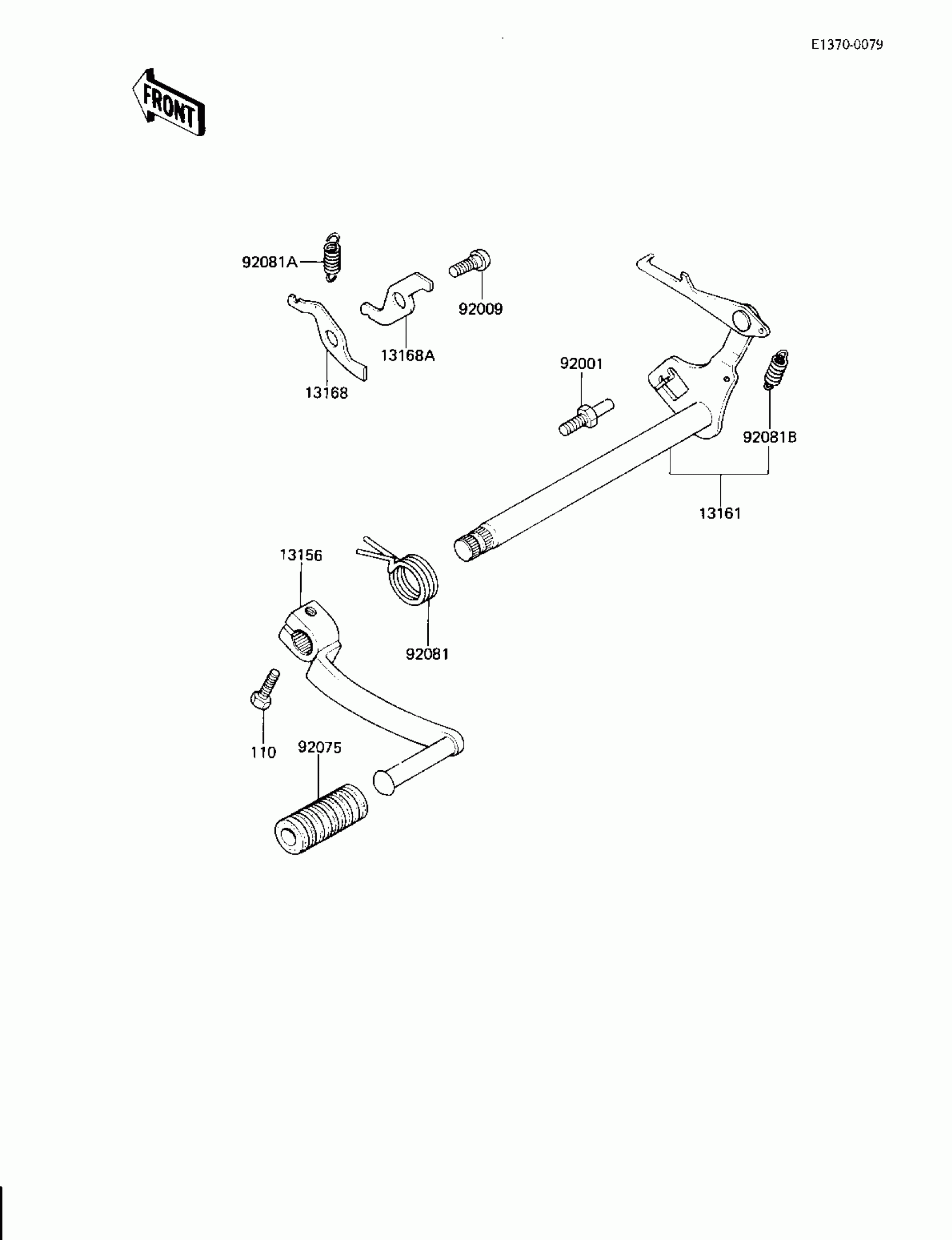

1982 Kawasaki AR80-A1 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13156

LEVER-ASSY-CHANGE,PED

13242-1151

1
Out of stock

13161

LEVER-COMP-CHANGE SHAFT

13161-1158

1
Out of stock

13168

LEVER,CHANGE DRUM

13168-1119

1
Out of stock

13168A

LEVER,NEUTRAL CHANGE

13168-1120

1
Out of stock

92001

BOLT,RETURN SPRING

92001-1401

1
Out of stock

92009

SCREW,6MM

92011-023

1
Out of stock

92075

DAMPER,CHANGE PEDAL

13157-004

1
Out of stock

92081

SPRING,CHANGE LEVER RETURN

92081-1279

1
Out of stock

92081A

SPRING,DRUM LEVER SET

92081-1474

1
Out of stock

92081B

SPRING,NEUTRAL POSITION

92081-156

1
Out of stock

110

BOLT-UPSET,6X20

112G0620

1
Out of stock
