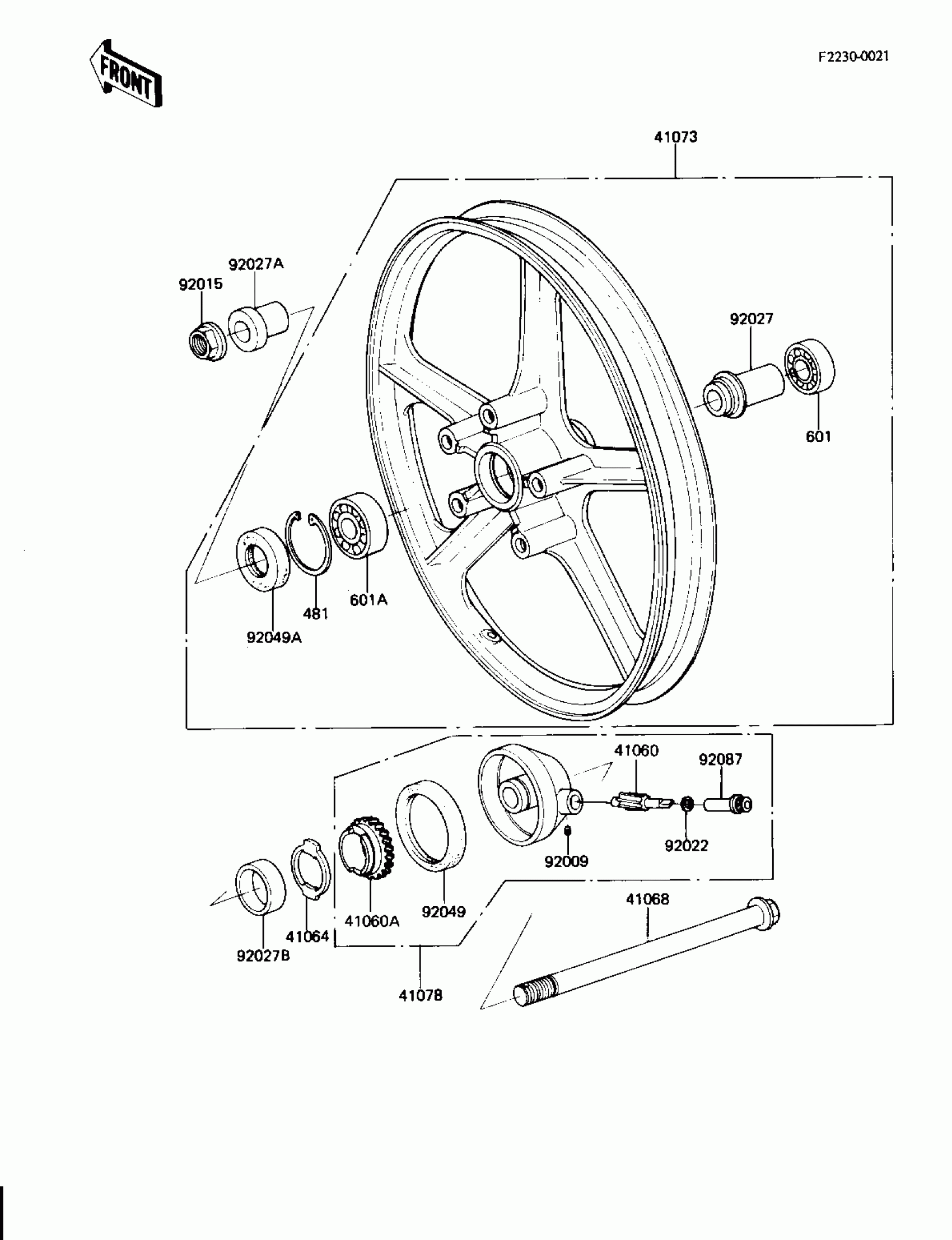

Kawasaki AR80-A1 FRONT WHEEL/HUB Diagram

Description

Price

41060

GEAR-METER SCREW

41060-1037

$16.15

41060A

GEAR-METER SCREW

41060-1042

$18.32

41064

RECEIVER-SPEEDOMETER

41064-1010

Unavailable

41068

AXLE,FR,L=197

41068-1092

Unavailable

41073

WHEEL-ASSY,FR,SOLID

41073-1175-H9

$477.50

41078

CASE-ASSY-METER GEAR

41078-1022

$90.33

92009

SCREW,METER SCREW

92009-1117

$3.56

92015

NUT,FLANGED,12MM

92015-1156

Unavailable

92022

WASHER,METER SCREW

92022-1257

$3.78

92027

COLLAR,L=43

41039-034

Unavailable

92027A

COLLAR,L=29

92027-1001

Unavailable

92027B

COLLAR,METER SCREW

92027-1439

$4.58

92049

SEAL-OIL,METER SCREW

92049-1073

$14.00

92049A

OIL SEAL,FR BK DRUM

92050-059

$19.25

92087

BUSHING-METER GEAR

92087-1004

$16.20

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.04

601

BEARING-BALL,#6201C3

601B6201

$10.56

601A

BEARING BALL #6301

601B6301

Unavailable
