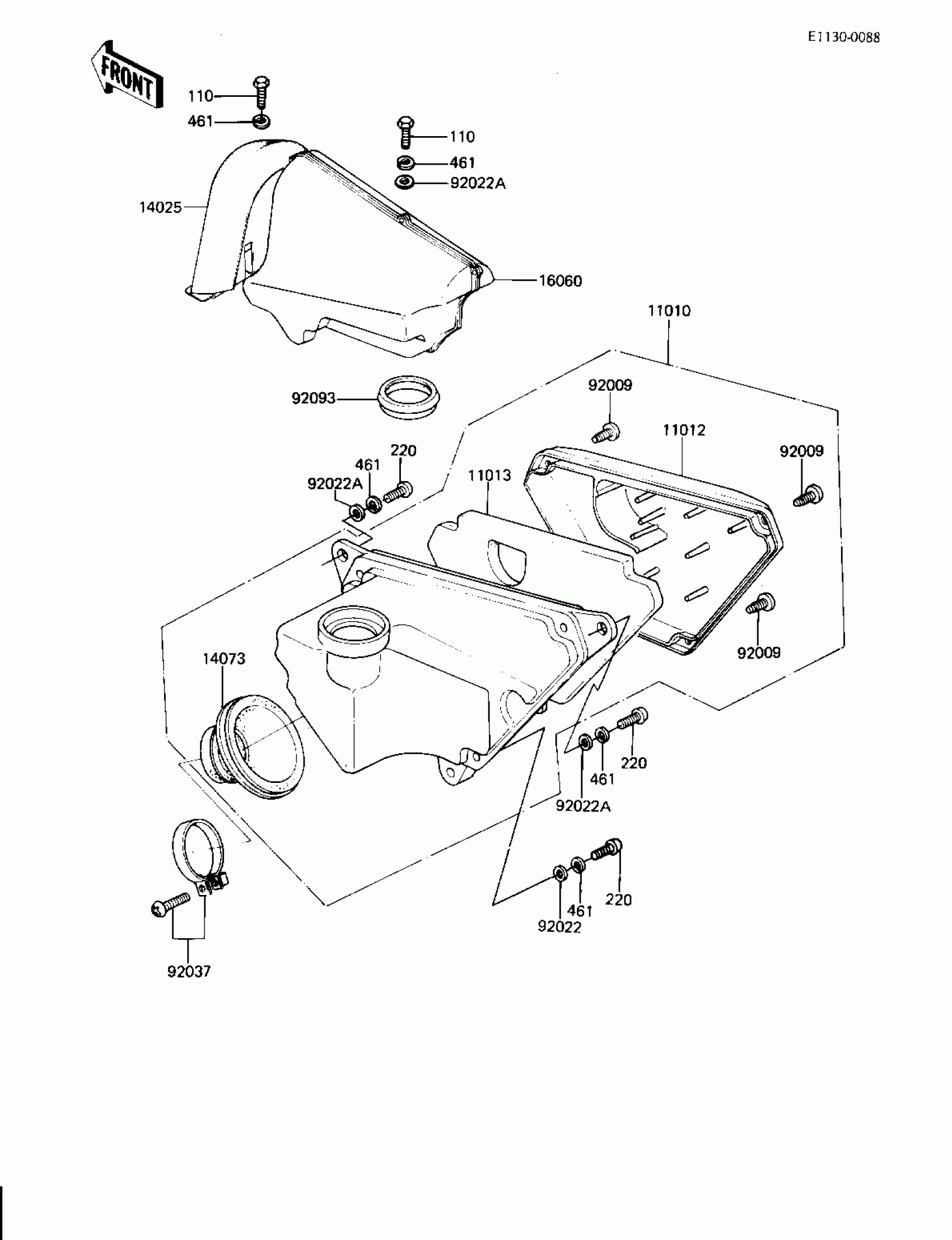

Kawasaki AR80-A1 AIR CLEANER Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-1146

Unavailable

11012

CAP,AIR FILTER

11012-1255

Unavailable

11013

ELEMENT,AIR CLNR

11013-1038

$9.51

14025

COVER,INTAKE PIPE

14025-1504

Unavailable

14073

DUCT,AIR FILTER

14073-1081

Unavailable

16060

PIPE-INTAKE,SILENCER"

16060-1006

$39.19

92009

SCREW,TAPPING

92009-1113

$3.92

92022

WASHER,SPLINE

92022-1113

Unavailable

92022A

WASHER,6.5X20X1.6

92022-125

$1.02

92037

CLAMP,CARBURETOR,40MM

92037-1129

$9.58

92093

SEAL,AIR FILTER SILEN

92093-1050

Unavailable

110

BOLT-UPSET,6X16

112G0616

Unavailable

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
