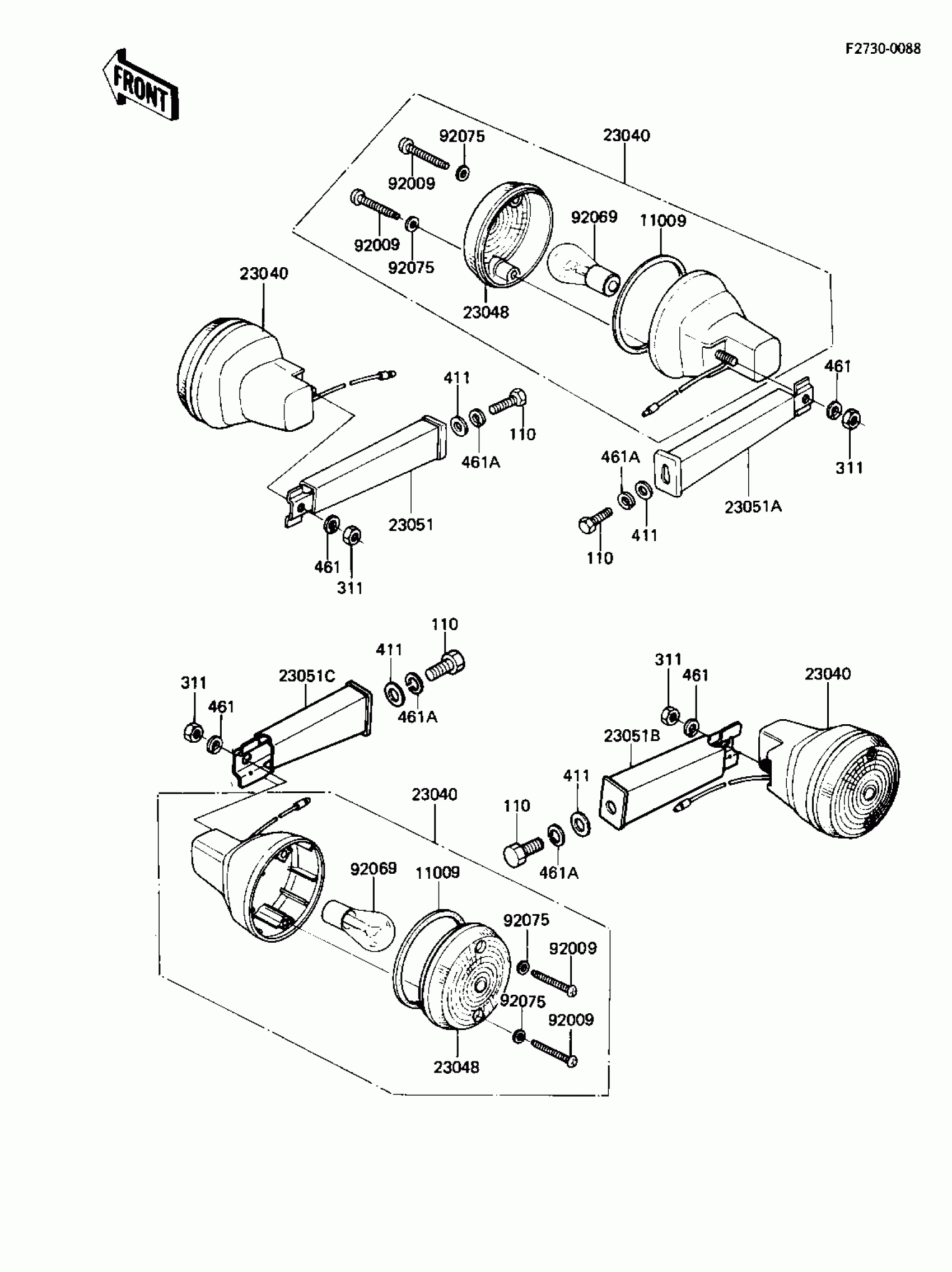

Kawasaki AR50-A1 TURN SIGNALS Diagram

Description

Price

11009

GASKET,TURN SIGNAL LAMP LENS

11009-1128

Unavailable

23040

LAMP-SIGNAL

23040-1049

Unavailable

23048

LENS-SIGNAL LAMP

23048-1076

$7.43

23051

BRACKET-SIGNAL LAMP,F

23051-1039

Unavailable

23051A

BRACKET-SIGNAL LAMP,F

23051-1040

$25.41

23051B

BRACKET-SIGNAL LAMP,L

23051-1044

Unavailable

23051C

BRACKET-SIGNAL LAMP,R

23051-1045

Unavailable

92009

SCREW,TAPPING,4X30

92009-1056

$3.92

92069

BULB,6V 21CP

92069-056

$4.86

92075

WASHER,PLAIN,4MM

23058-002

$1.77

110

BOLT-UPSET,6X16

112G0616

Unavailable

311

NUT-HEX

311B0500

$0.47
