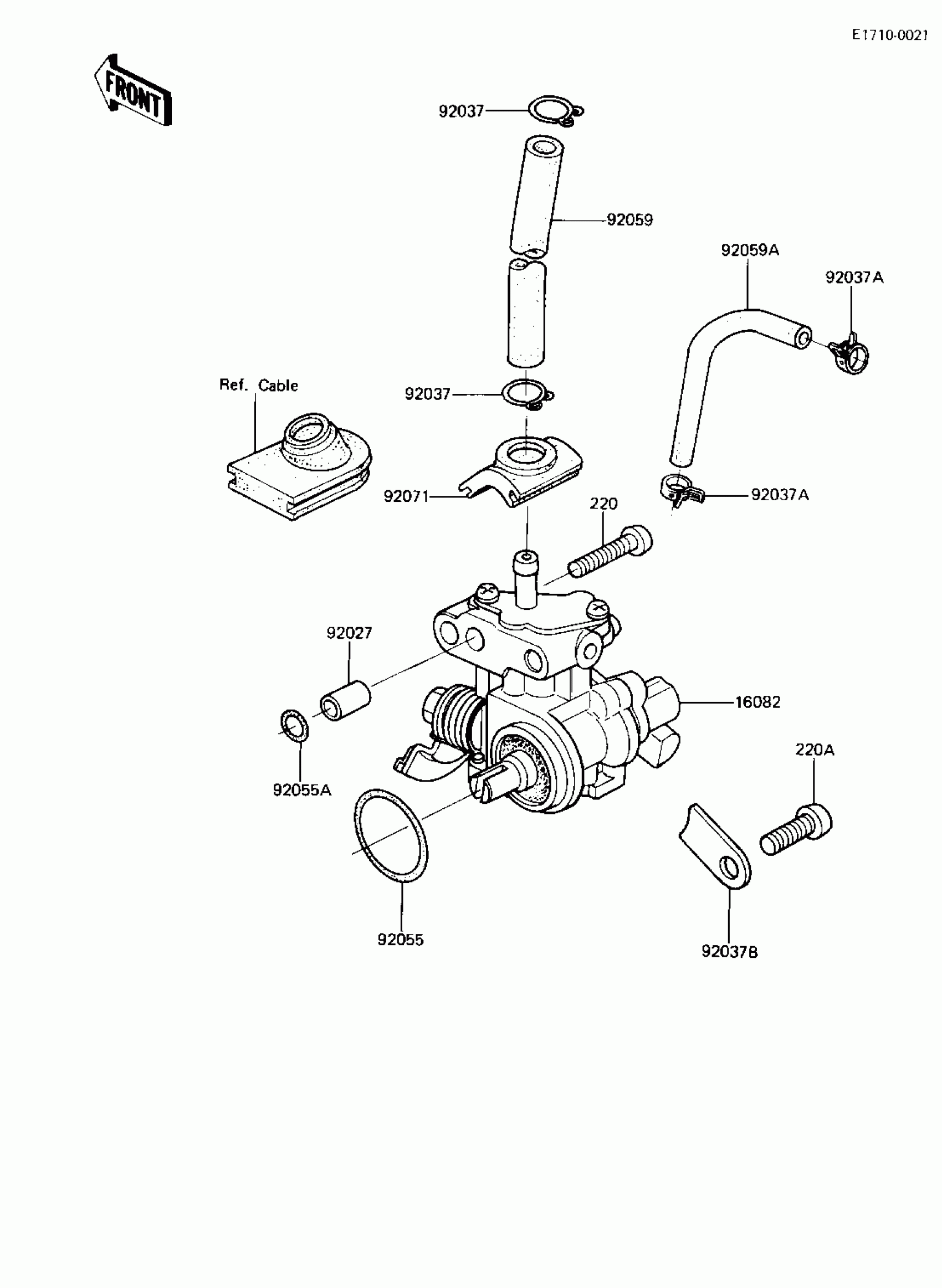

Kawasaki AR50-A1 OIL PUMP Diagram

Description

Price

16082

PUMP-ASSY-OIL

16082-1075

$275.26

92027

COLLAR,2.5X5X9.8

92027-256

$4.92

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,TUBE

92037-1260

$1.95

92037B

CLAMP

92037-187

Unavailable

92055

RING-O,19.5X1.5

92055-055

$3.29

92055A

O RING,5MM

670B1505

$2.49

92059

PIPE-OIL

92059-072

$34.17

92059A

TUBE,3X5.8X74

92059-1157

$5.10

92071

GROMMET,OIL TUBE

92071-1030

Unavailable

220

SCREW-PAN-CROS

220B0520

$0.62

220A

SCREW-PAN-CROS,6X14

220B0614

$1.14
