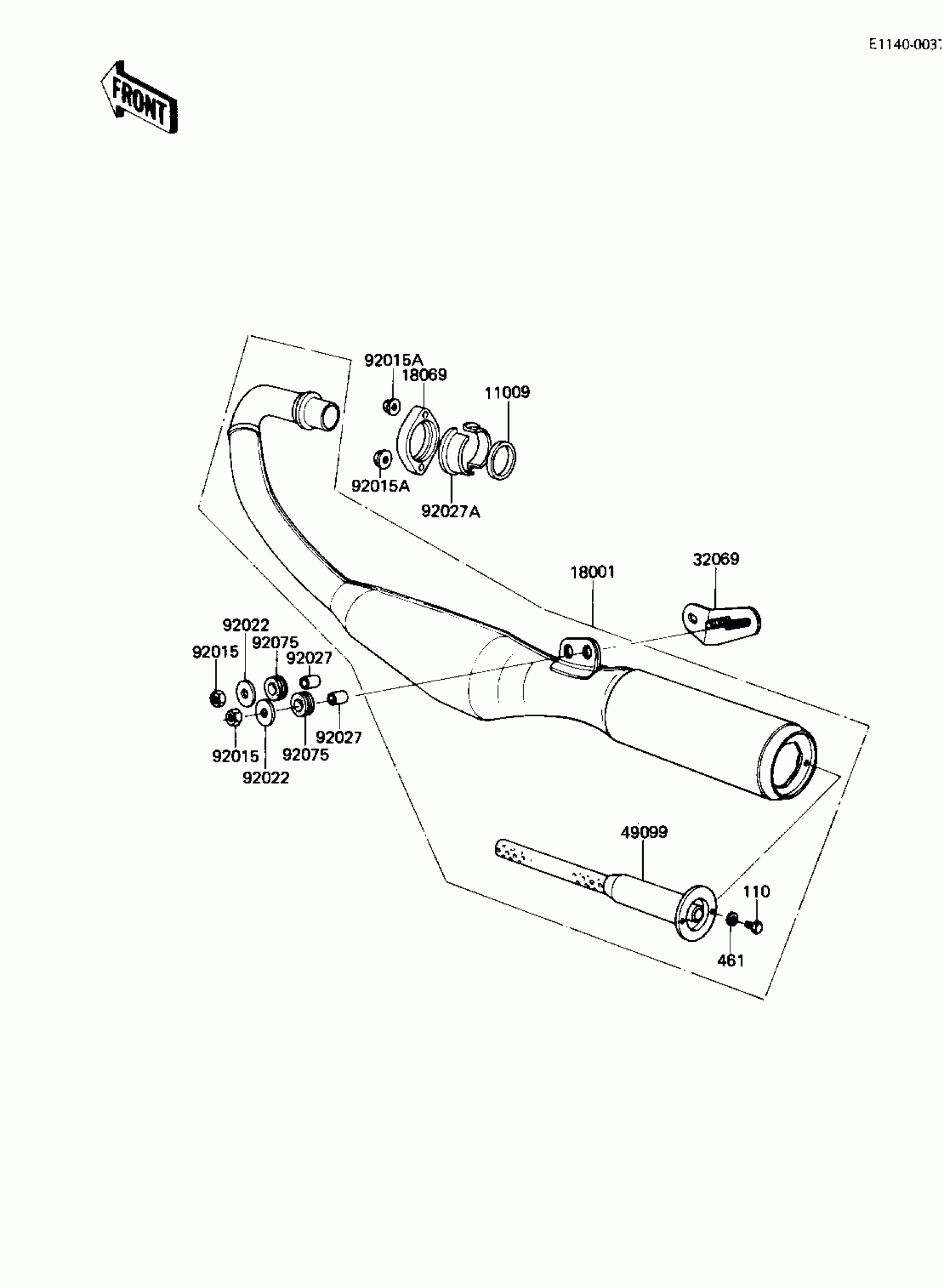

Kawasaki AR50-A1 MUFFLER Diagram

Description

Price

11009

GASKET,EXHAUST HOLDER

11009-1261

Unavailable

18001

MUFFLER,F.BLACK

18001-1177

$233.80

18069

HOLDER-EXHAUST PIPE

18069-1020

Unavailable

32069

BRACKET-MUFFLER

32069-1082

$12.92

49099

BAFFLE-PIPE MUFFLER

49099-1065

Unavailable

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,8X26X2.3

92022-1564

$3.29

92027

COLLAR

92027-102

$0.86

92027A

COLLAR

92027-1365

$5.51

92075

DAMPER RUBBER-MUFFLER

18063-005

Unavailable

110

BOLT HEX HEAD 5X10

110B0510

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable
