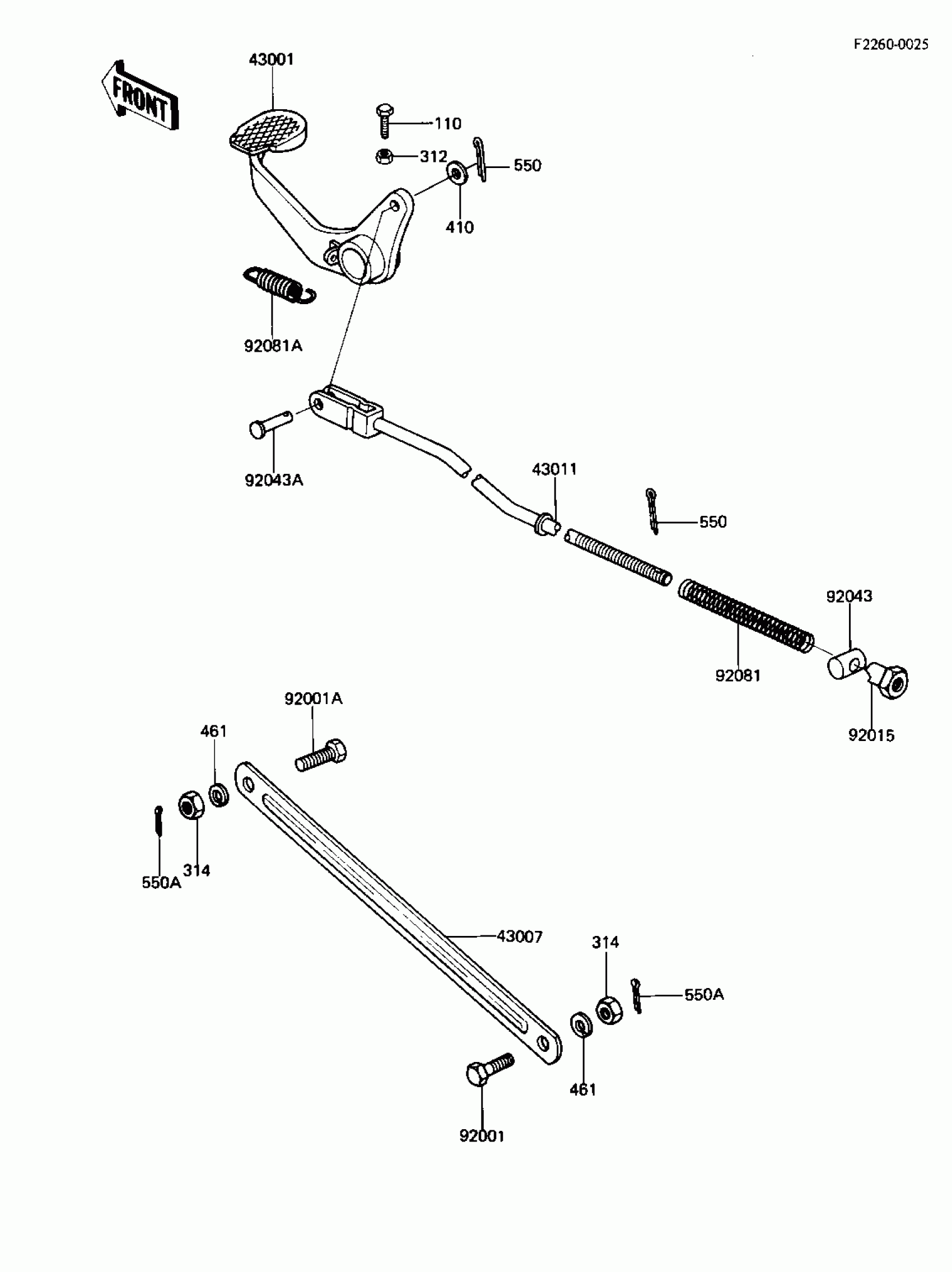

Kawasaki AR50-A1 BRAKE PEDAL/TORQUE LINK Diagram

Description

Price

43001

LEVER-BRAKE,F.BLACK

43001-1054

$55.71

43007

ROD-TORQUE

43007-1020

Unavailable

43011

ROD-BRAKE

43011-1047

Unavailable

92001

BOLT,10X32

92003-003

$5.42

92001A

BOLT,10X25

92003-017

Unavailable

92015

NUT,BRAKE ROD

92015-042

$4.67

92043

PIN,BRAKE ROD

92043-039

$4.80

92043A

PIN,6X17

92043-064

$3.57

92081

SPRING,BRAKE ROD

43012-001

$3.54

92081A

SPRING,BRAKE RETURN

92081-1044

Unavailable

110

BOLT-UPSET,6X20

112G0620

Unavailable

312

NUT 6MM

312B0600

Unavailable

314

NUT-HEX-FINE,10MM

314B1000

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

461

WASHER SPRING 10MM

461F1000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.0X20

550D2020

Unavailable
