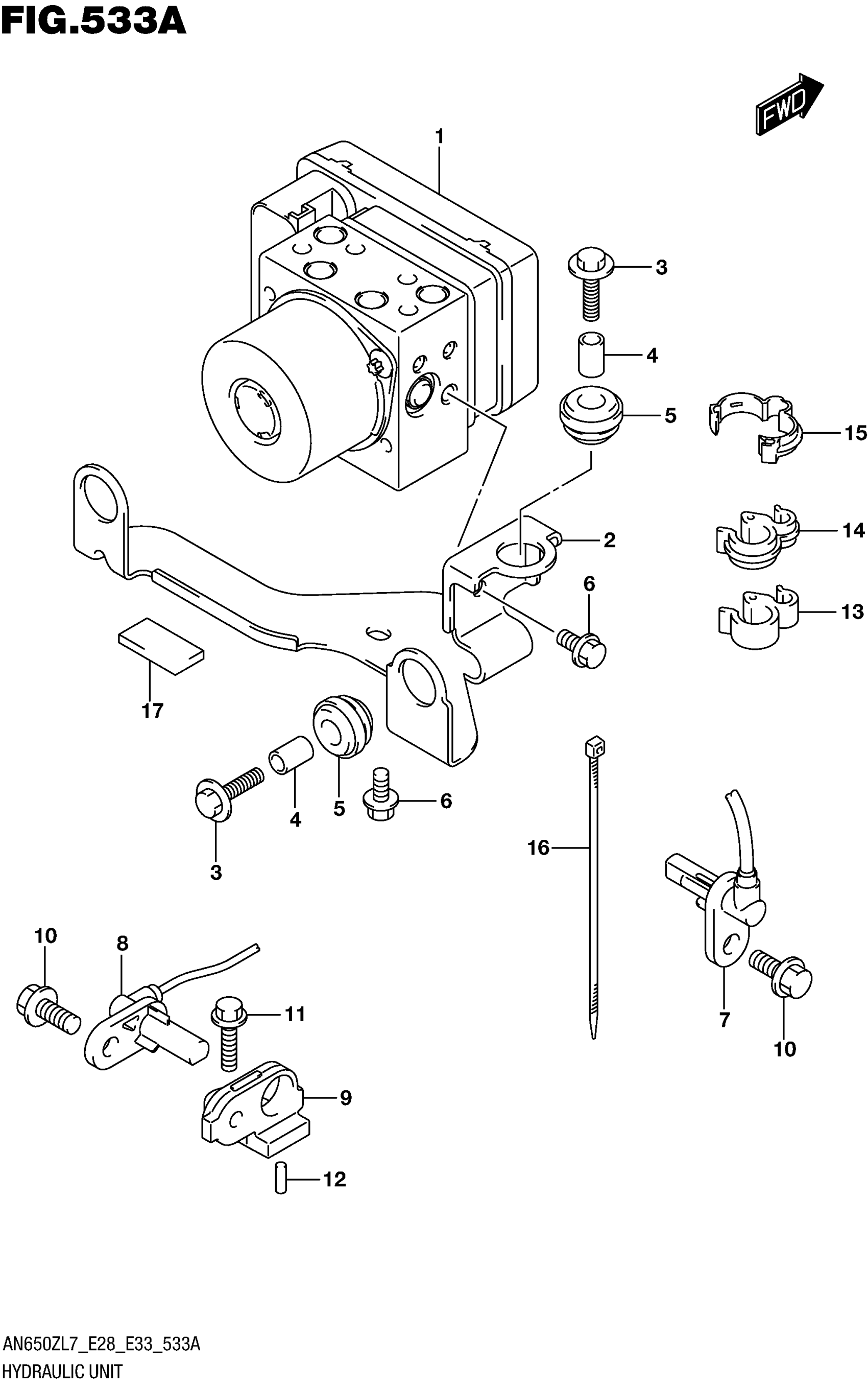

Find the part on the Hydraulic Unit diagram for your 2017 Suzuki AN650ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki AN650ZL7 Hydraulic Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNIT ASSY, HYDRAULIC ABS

55610-26J01

1
Out of stock

2

HOLDER, HYDRAULIC UNIT ABS

55660-26J00

1
Out of stock

3

BOLT (6X30)

09116-06171

3
Out of stock

4

SPACER

55662-10G00

3
Out of stock

5

RUBBER

55663-10G00

3
Out of stock

6

BOLT

01550-0610A

2
Out of stock

7

SENSOR, FR WHEEL ABS

55710-26J00

1
Out of stock

8

SENSOR, RR WHEEL ABS

65710-26J00

1
Out of stock

9

BRACKET, SENSOR RR

65721-26J00

1

$40.18

In stock

10

BOLT (8X16)

01550-0816A

2
Out of stock

11

BOLT (6X16)

09103-06240

1
Out of stock

12

PIN (4X13.8)

04221-04089

1
Out of stock

13

CLAMP

09408-00241

1
Out of stock

14

CLAMP

09408-00242

1
Out of stock

15

CLAMP

09408-00259

—
Out of stock

16

CLAMP (L:145)

09407-14407

1
Out of stock

17

CUSHION

45149-47H00

1
Out of stock
