2017 Suzuki AN650ZL7 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2017 Suzuki AN650ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

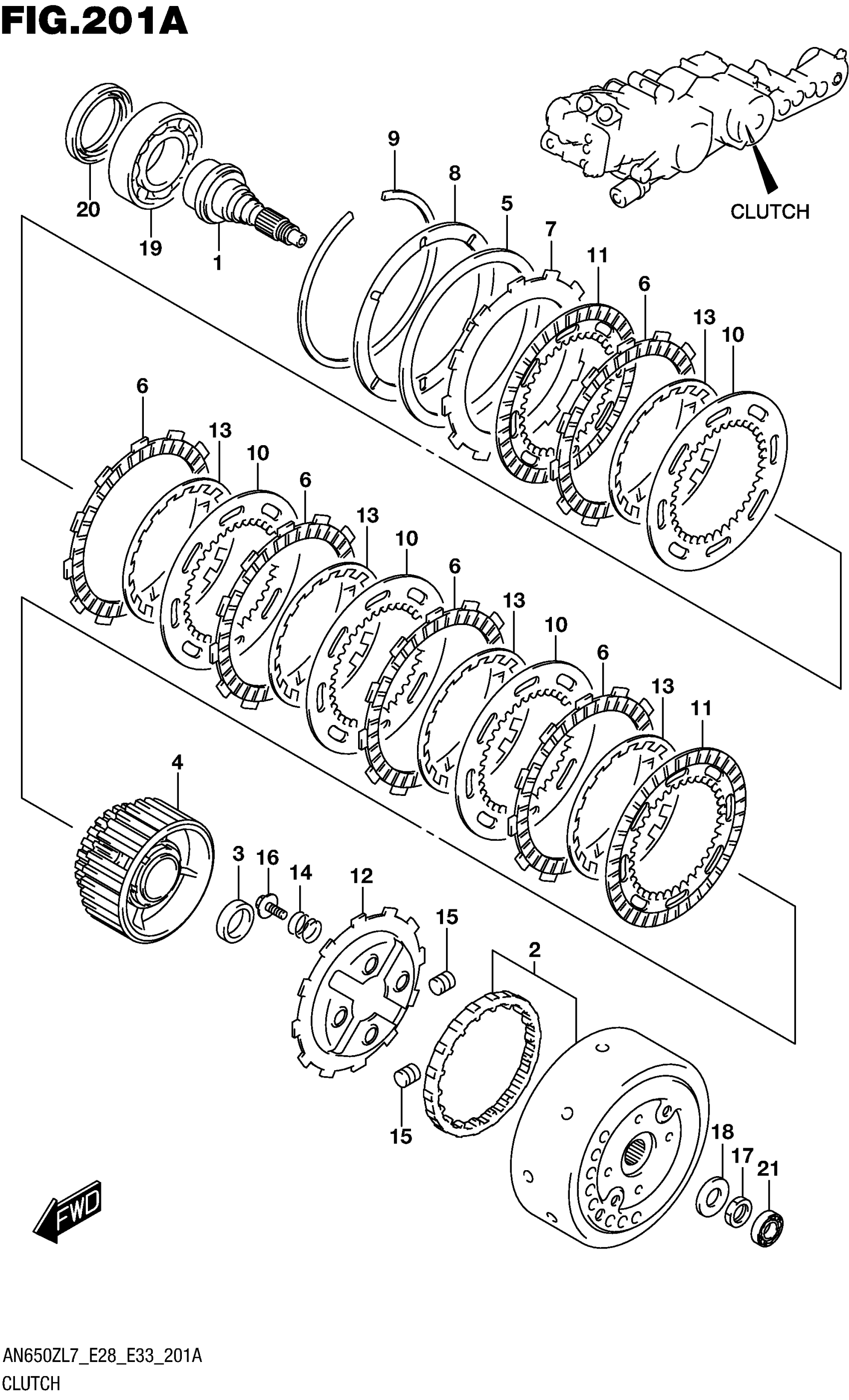

2017 Suzuki AN650ZL7 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, CLUTCH (NT:42)

21421-10G00

1
Out of stock

2

HOUSING SET, CLUTCH

21221-10830

1

$372.52

In stock

3

SPACER, CLUTCH HOUSING

21222-10G00

1
Out of stock

4

1

$464.07

In stock

4

(NT:31)

21321-10821

1

$464.07

In stock

5

1

$57.13

In stock

6

5

$25.60

In stock

7

1

$24.37

In stock

7

(T:3.2)

21443-10G00

1

$24.37

In stock

8

SEAT, CLUTCH SPRING

21446-10G00

1

$23.05

In stock

9

CIRCLIP, CLUTCH OUTER

21447-10G00

1

$10.25

In stock

10

4

$16.41

In stock

10

(T:2.0)

21451-10G10

1

$16.41

In stock

11

2

$33.13

In stock

11

1

$33.13

In stock

12

1

$42.87

In stock

13

WASHER, CLUTCH PLATE

21472-10G10

5

$21.50

In stock

14

4

$6.43

In stock

15

ROLLER, CLUTCH

21650-10G00

18

$17.53

In stock

16

BOLT (5X16)

09116-05020

4
Out of stock

17

NUT

09140-18016

1

$7.28

In stock

18

WASHER (18X30X2.5)

09160-18033

1

$3.80

In stock

19

BEARING (50X72X12) | RH

09262-50003

1
Out of stock

20

OIL SEAL (50X64X7)

09283-50009

1

$17.77

In stock

21

BEARING | LH This part replaces 08123-63010.

08123-6301B

1
Out of stock
