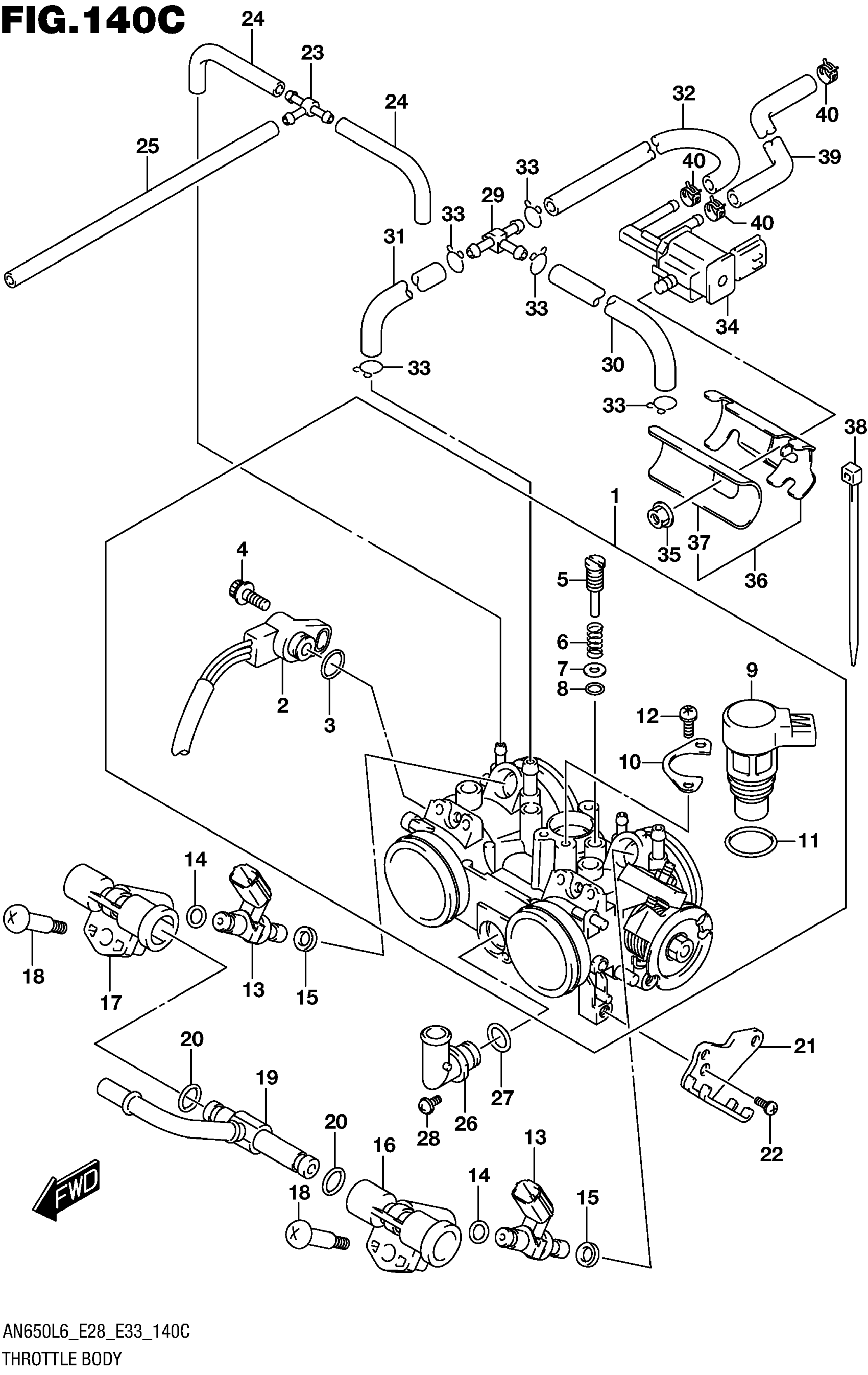

Suzuki AN650L6 (2016) THROTTLE BODY (AN650ZL6 E33) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13406-26J10

$1,095.03

2

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F21.

13580-40F22

$272.40

3

.O RING

13575-40F00

$3.85

4

.SCREW

13605-40F00

$3.50

5

.ADJUST SCREW

13269-18G00

$13.35

6

.SPRING

13271-43E00

Unavailable

7

.WASHER

13291-26E00

$2.80

8

.O RING

13295-26E00

$3.97

9

.VALVE ASSY, ISC

18117-15H12

$403.72

10

.PLATE, ISC VALVE

13428-15H00

Unavailable

11

.O RING

18119-05H00

$4.47

12

.SCREW

13605-15H00

$8.03

13

INJECTOR ASSY This part replaces 15710-26J00.

15710-26J01

$314.42

14

O RING

15721-26J00

$12.08

15

.RING,SEAL

15722-21H00

$10.30

16

JOINT

13471-26J00

Unavailable

17

JOINT

13471-26J10

Unavailable

18

SCREW

13601-35F00

$6.86

19

FUEL PIPE

13473-10G00

Unavailable

20

.O-RING

15721-24F00

$8.31

21

PLATE

13565-10G20

Unavailable

22

SCREW

13601-10G00

Unavailable

23

JOINT

13471-24F30

$18.60

24

HOSE (3X7X65)

13683-10G00

Unavailable

25

HOSE (3X7X220)

13683-10G10

Unavailable

26

JOINT

13455-10G00

Unavailable

27

O RING

13278-10G10

Unavailable

28

SCREW

13602-10G00

Unavailable

29

JOINT

13685-36E50

Unavailable

30

HOSE

13698-10G01

Unavailable

31

HOSE

13698-10G11

Unavailable

32

HOSE

13698-10G31

Unavailable

33

CLIP

13693-24F00

$3.62

34

VALVE ASSY, CANISTER PURGE

18117-52G00

$163.83

35

NUT

08316-1006A

$2.19

36

BRACKET PURGE VALVE

18119-10G00

Unavailable

37

.CUSHION, PURGE VALVE BRACKET

18118-10G00

$7.23

38

CLAMP (L:145)

09407-14407

$2.80

39

HOSE, CANISTER PURGE

13680-10G10

Unavailable

40

CLIP (ID:10.5,H:8)

09401-10409

$2.28
