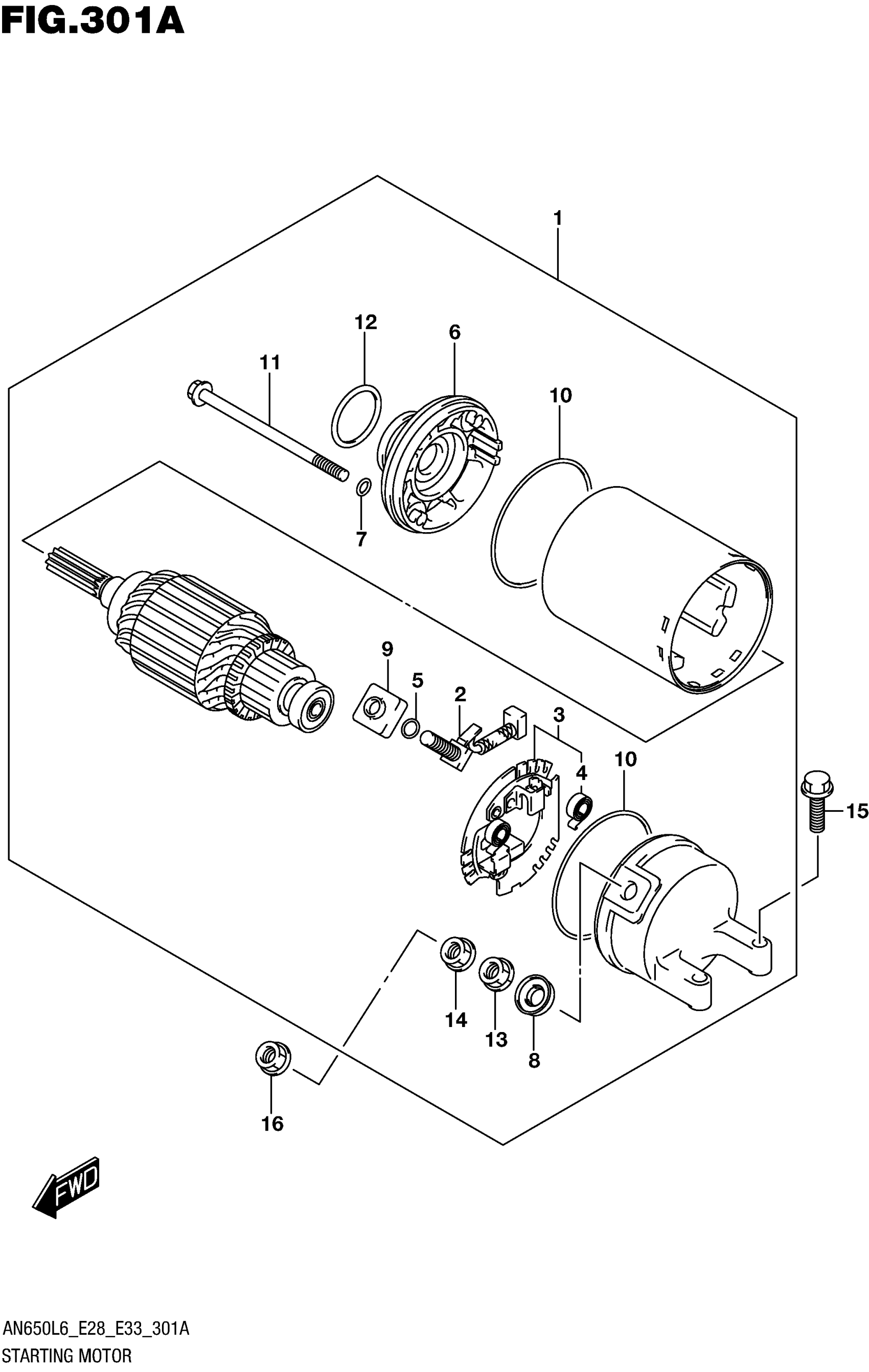

Suzuki AN650L6 (2016) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-10G00

$722.62

2

.BRUSH (+)

31130-38300

$20.82

3

.HOLDING ASSY, BRUSH

31132-27A01

$83.02

4

..SPRING

31135-65010

$5.10

5

.O RING

31143-38300

$5.75

6

.HOUSING ASSY, STARTING

31150-49500

Unavailable

7

.O RING

31156-38300

$5.10

8

.BUSHING

31172-38300

$5.24

9

.BUSHING

31171-38300

$10.08

10

.O RING

31264-44110

$13.40

11

.BOLT

31281-88C00

Unavailable

12

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

13

.NUT

08310-00067

$1.83

14

NUT

08361-3506A

$1.81

15

BOLT

01547-0625A

$2.01

16

NUT

08361-3506A

$1.81
