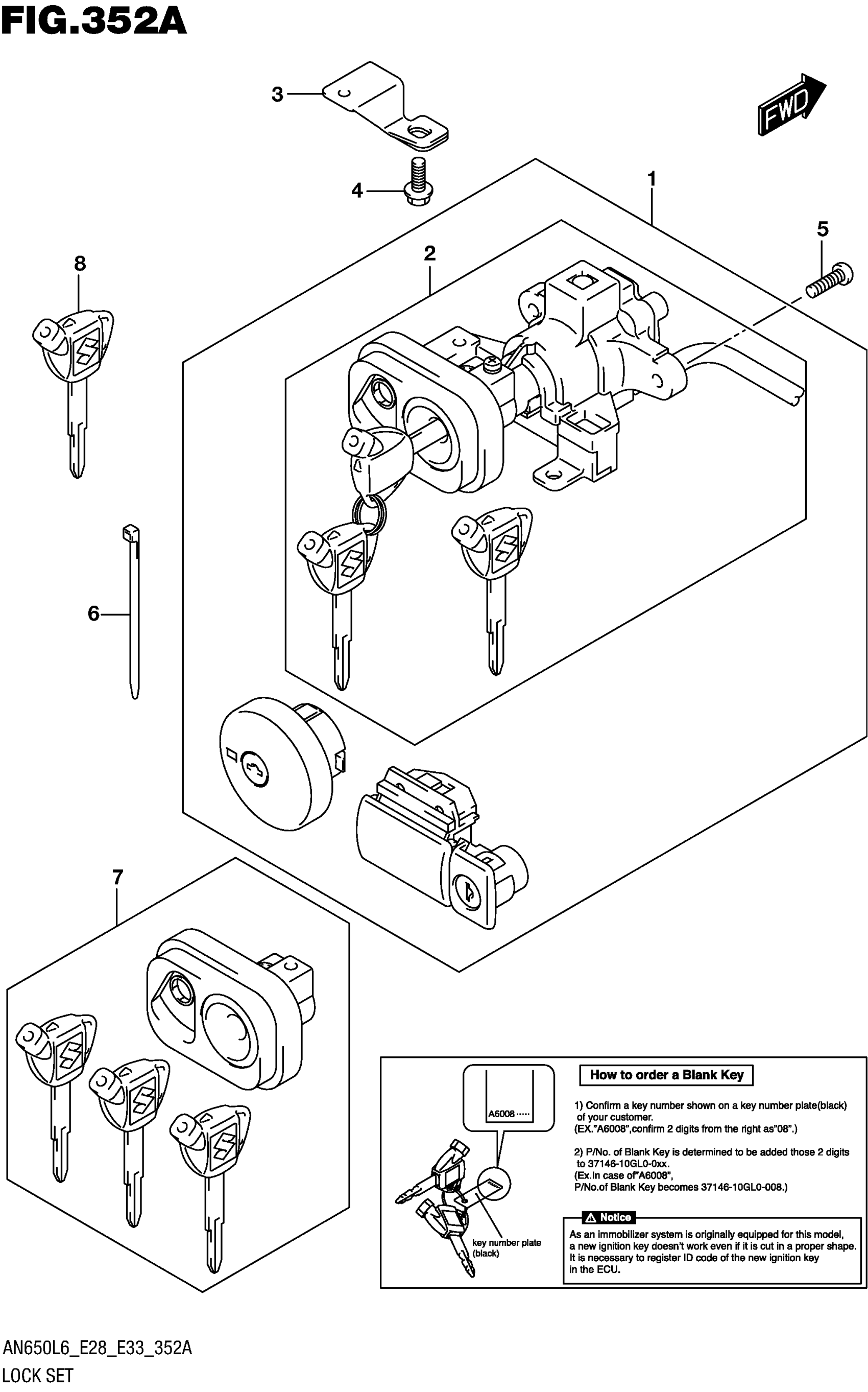

Suzuki AN650L6 (2016) LOCK SET Diagram

#

Description

Price

1

LOCK SET This part replaces 37103-26820.

37103-26824

$452.60

2

LOCK ASSY,STEER This part replaces 37120-26820.

37120-26822

$362.63

3

PLATE, STEERING LOCK

51921-26J00

Unavailable

4

BOLT (8X16)

09103-08351

$3.52

5

SCREW (6X20)

09139-06048

$1.29

6

CLAMP (L:145)

09407-14407

$2.80

7

SHUTTER SET

37155-11840

Unavailable

8

BLANK,KEY | OPT This part replaces 37146-10GL0.

37146-10GL1

$57.43
