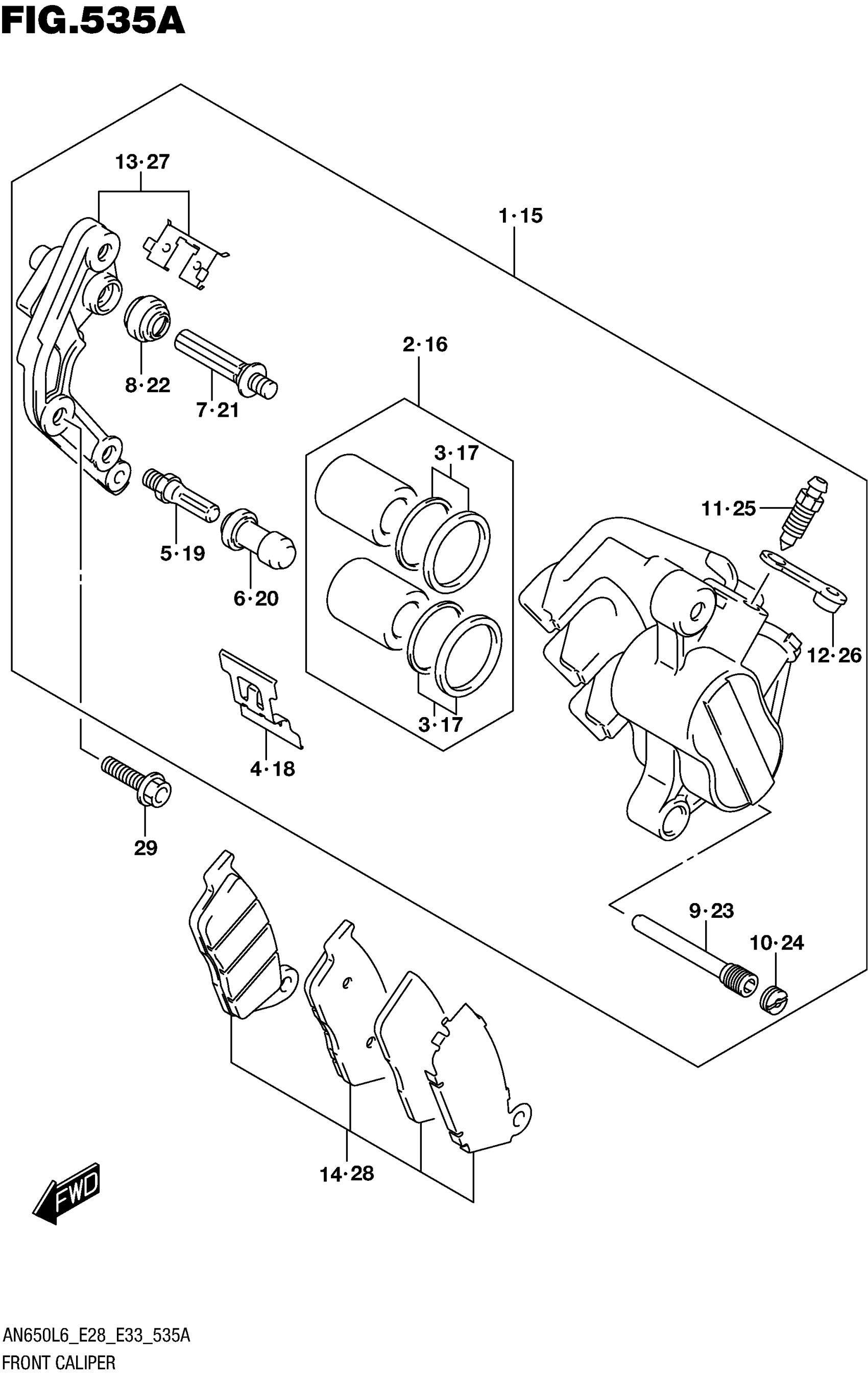

Suzuki AN650L6 (2016) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-26J10-999

Unavailable

2

.PISTON SET

59300-26860

$53.32

3

..SEAL SET, PISTON

59300-13820

$21.18

4

.SPRING, PAD

59115-21E10

$16.60

5

.PIN

59382-14500

$8.43

6

.BOOT

59386-13A00

$7.28

7

.PIN

59187-21E10

$30.18

8

.BOOT

59303-14500

$5.06

9

.PIN, HANGER

59145-21E10

$17.26

10

.PLUG, PIN

59146-21E10

$5.62

11

.BLEEDER

59121-01A00

$7.99

12

.CAP, BLEEDER

59122-46H00

$4.17

13

.BRACKET RH

59151-26J10

Unavailable

14

PAD & SHIM SET RH

59101-26810

$122.15

15

CALIPER ASSY, FRONT LH

59300-26J10-999

$616.43

16

.PISTON SET

59300-26860

$53.32

17

..SEAL SET, PISTON

59300-13820

$21.18

18

.SPRING, PAD

59115-21E10

$16.60

19

.PIN

59382-14500

$8.43

20

.BOOT

59386-13A00

$7.28

21

.PIN

59187-21E10

$30.18

22

.BOOT

59303-14500

$5.06

23

.PIN, HANGER

59145-21E10

$17.26

24

.PLUG, PIN

59146-21E10

$5.62

25

.BLEEDER

59121-10G00

$16.32

26

.CAP, BLEEDER

59122-46H00

$4.17

27

.BRACKET LH

59351-26J10

Unavailable

28

PAD & SHIM SET LH

59101-26820

$122.15

29

BOLT (8X28)

09103-08359

$3.44
