2016 Suzuki AN650L6 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2016 Suzuki AN650L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

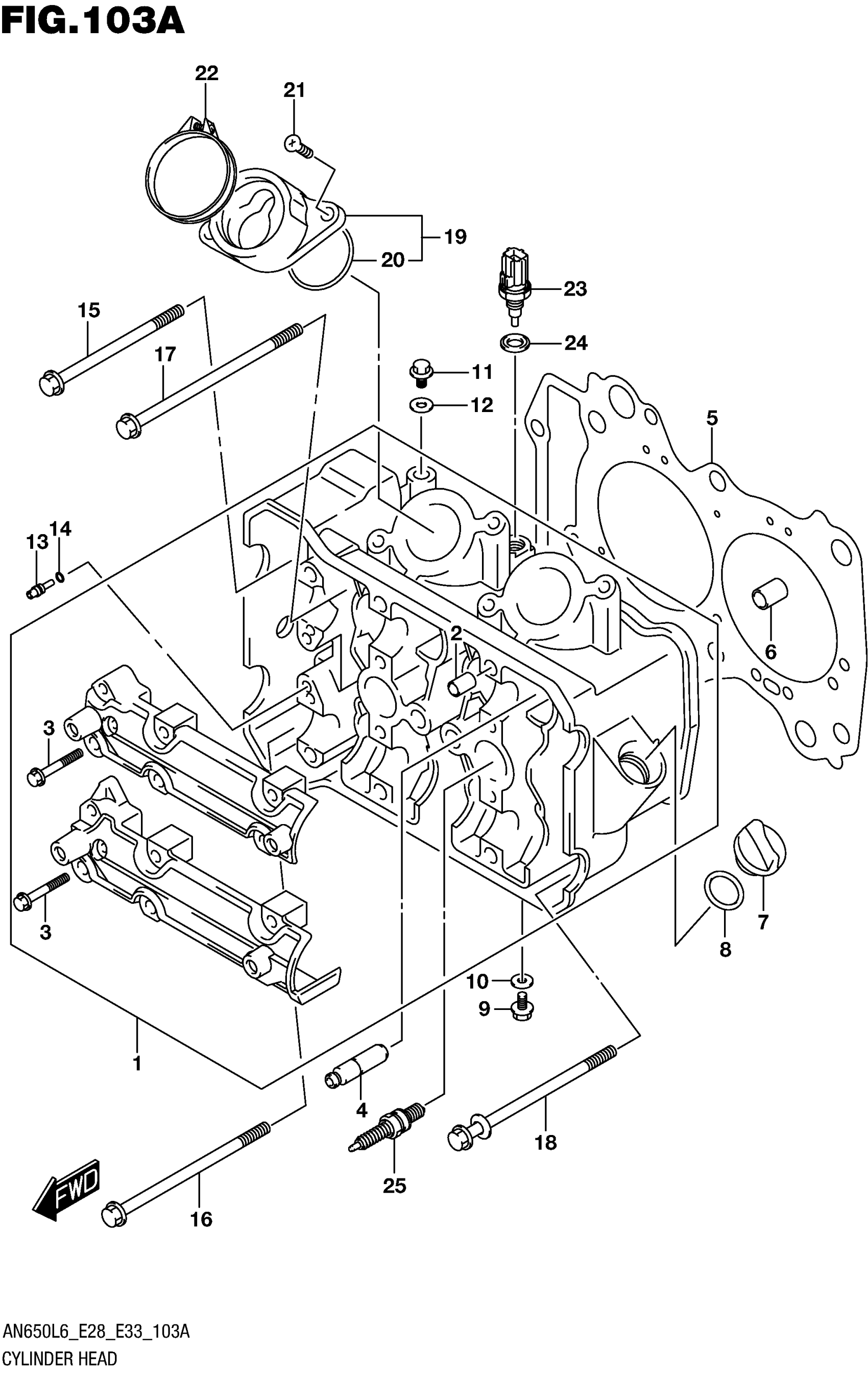

2016 Suzuki AN650L6 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-10G10

1
Out of stock

2

.PIN (8X11)

09206-08001

4
Out of stock

3

.BOLT (6X40)

09103-06266

12
Out of stock

4

GUIDE, VALVE (OS:0.3) | OPT

11115-33D71

8
Out of stock

5

GASKET, CYLINDER HEAD

11141-10G00

1
Out of stock

6

PIN

04211-13189

2
Out of stock

7

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

8

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

9

BOLT

01550-0612A

1
Out of stock

10

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

11

BOLT (8X9.5)

09103-08421

1
Out of stock

12

GASKET (8.2X14X1)

09168-08016

1
Out of stock

13

JET AIR(14)

09493-28010

2
Out of stock

14

O RING (D:1.2,ID:4)

09280-04004

2
Out of stock

15

BOLT, CYLINDER HEAD (L:110)

11161-10G50

1
Out of stock

16

BOLT (8X135)

09103-08212

1
Out of stock

17

BOLT (10X150)

09116-10130

5
Out of stock

18

BOLT (10X155)

09116-10133

1
Out of stock

19

PIPE ASSY,INTAK This part replaces 13101-10G00.

13101-10G01

2
Out of stock

20

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

2
Out of stock

21

SCREW

02122-0616A

4
Out of stock

22

CLAMP

13170-39H00

2
Out of stock

23

SENSOR, WATER TEMP

13650-49X00

1
Out of stock

24

GASKET (12X17X1)

09168-12017

1
Out of stock

25-1

SPARK PLUG (CR8E) | NGK

09482-00456

2
Out of stock

25-2

SPARK PLUG (U24ESR-N) | DENSO

09482-00457

2
Out of stock

25-3

SPARK PLUG (CR7E) | OPT

09482-00516

2
Out of stock

25-3

SPARK PLUG (CR7E) | NGK

09482-00516

1
Out of stock

25-4

SPARK PLUG (U22ESR-N) | OPT

09482-00515

2
Out of stock

25-4

SPARK PLUG (U22ESR-N) | DENSO

09482-00515

1
Out of stock

25-5

PLUG SPARK (CR9E) | OPT

09482-00458

2
Out of stock

25-5

PLUG SPARK (CR9E) | NGK

09482-00458

1
Out of stock

25-6

SPARK PLUG (U27ESR-N) | OPT

09482-00459

2
Out of stock

25-6

SPARK PLUG (U27ESR-N) | DENSO

09482-00459

1
Out of stock
