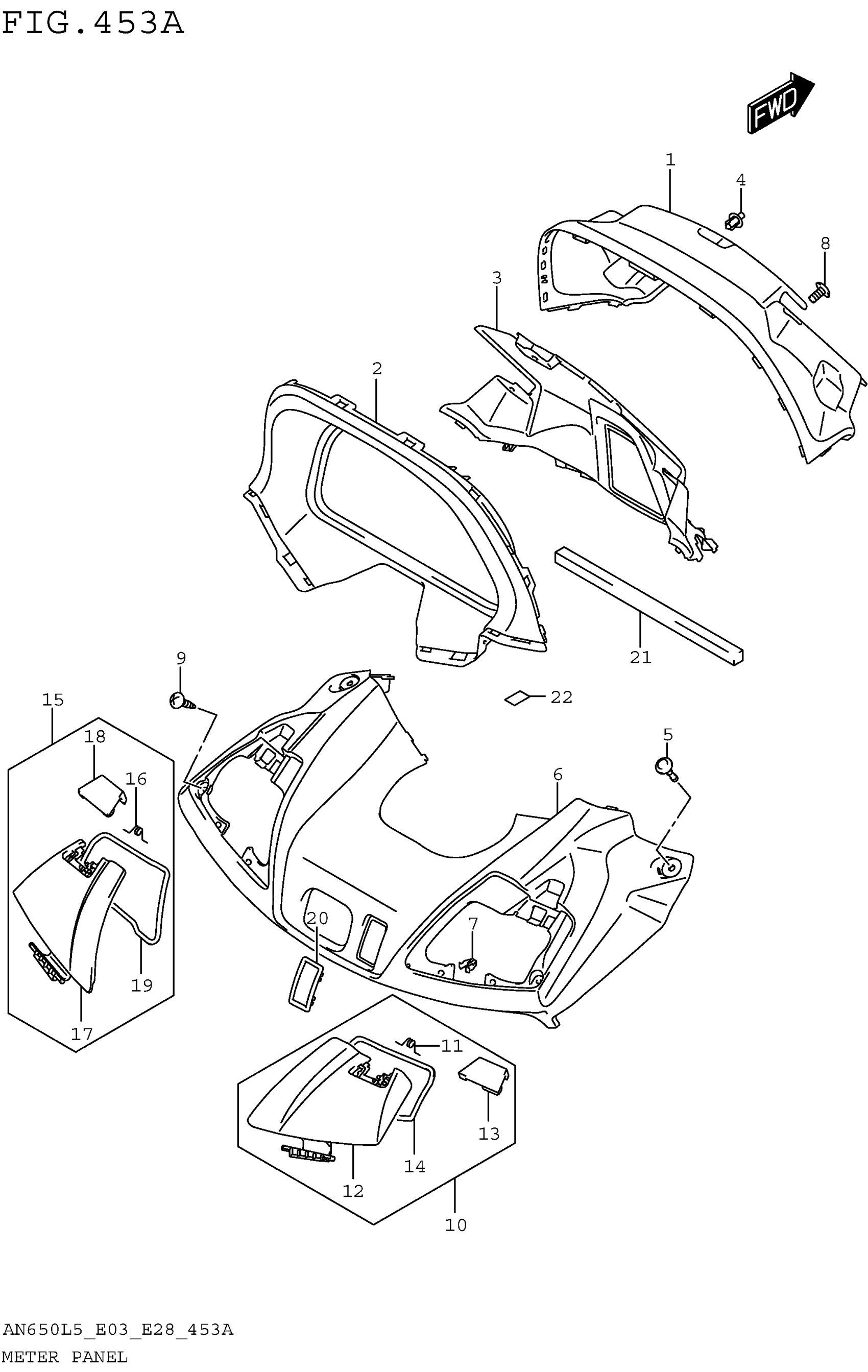

Find the part on the Meter Panel diagram for your 2015 Suzuki AN650L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki AN650L5 Meter Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, METER FRONT UPPER This part replaces 94421-26J01-291.

94421-26J50

1
Out of stock

2

PANEL, METER REAR This part replaces 94422-26J02-291.

94422-26J50

1
Out of stock

3

PANEL, METER FRONT LOWER This part replaces 94424-26J00-291.

94424-26J50

1
Out of stock

4

CLIP, METER PANEL FRONT

94479-35F00

1
Out of stock

5

CLIP, FRONT PANEL

94479-35F00

2
Out of stock

6

PANEL, FRONT This part replaces 94671-26J02-291.

94671-26J51

1
Out of stock

7

CLIP

09409-08326

2
Out of stock

8

SCREW

02142-0512B

4

$2.20

In stock

9

SCREW

03541-0516B

2
Out of stock

10

LID, FRONT PANEL BOX RH This part replaces 92140-26J00-291.

92140-26J50

1
Out of stock

11

SPRING

73843-81J00

1
Out of stock

12

.LID, FRONT PANEL RH This part replaces 92142-26J00-291.

92142-26J50

1
Out of stock

13

.LOCK, FRONT PANEL BOX RH This part replaces 92143-26J00-291.

92143-26J50

1
Out of stock

14

CUSHION, FRONT PANEL LID

92145-26J00

1
Out of stock

15

LID, FRONT PANEL BOX LH This part replaces 92150-26J00-291.

92150-26J50

1
Out of stock

16

SPRING

73843-81J00

1
Out of stock

17

.LID, FRONT PANEL LH This part replaces 92152-26J00-291.

92152-26J50

1
Out of stock

18

LOCK, FRONT PANEL BOX LH (BLACK)

92153-26J00-291

1
Out of stock

19

CUSHION, FRONT PANEL LID

92145-26J00

1
Out of stock

20

GROMMET, FRONT PANEL

94672-26J00

1
Out of stock

21

CUSHION, METER PANEL

94425-26J00

1
Out of stock

22

TAPE, METER PANEL

94432-19F00

1
Out of stock
