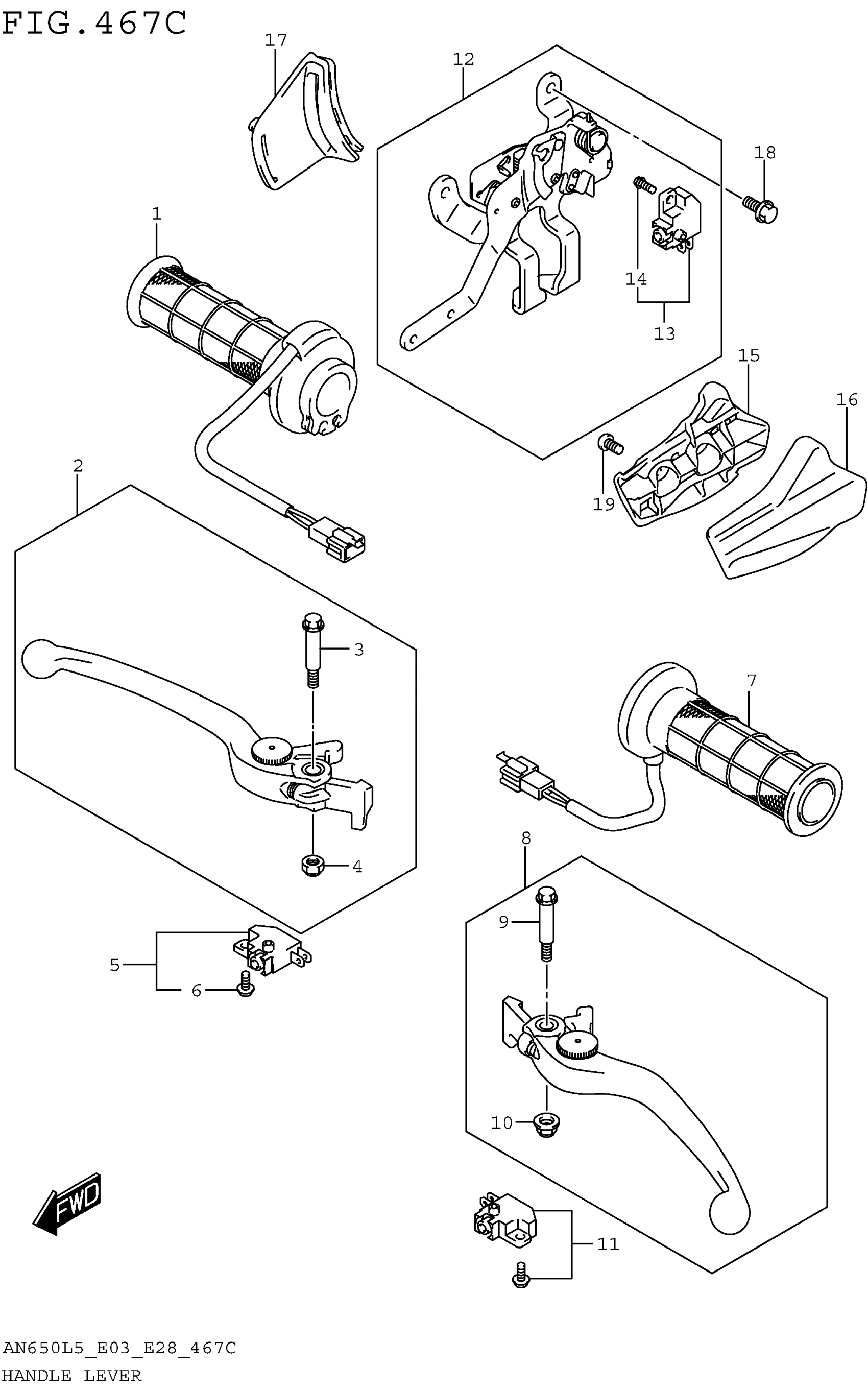

Suzuki AN650L5 (2015) HANDLE LEVER (AN650ZL5 E28) Diagram

#

Description
Price

1

HEATER ASSY, THROTTLE GRIP

57110-05H21

$294.22

2

LEVER ASSY, FRONT BRAKE

57300-10G32

$39.24

3

BOLT, PIVOT

57431-17H02

$6.72

4

NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

HEATER ASSY, GRIP LH

57210-05H10

$230.75

8

LEVER ASSY, REAR BRAKE

57500-10G32

$85.35

9

BOLT, PIVOT

57431-17H02

$6.72

10

NUT

08319-2106A

$1.89

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J01.

57560-14J02

$36.39

12

LEVER ASSY, BRAKE LOCK

57800-26J00

Unavailable

13

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$35.21

14

SCREW

57465-17C00

$2.37

15

KNOB, BRAKE LOCK

57821-26J00

Unavailable

16

GARNISH, BRAKE LOCK KNOB (GRAY)

57822-26J00-PGZ

$35.45

16

GARNISH, BRAKE LOCK KNOB (WHITE)

57822-26J00-RB5

$34.85

16

GARNISH, BRAKE LOCK KNOB (BLACK)

57822-26J00-YKV

$29.18

17

GROMMET, LEVER SEAL

57951-26J00

Unavailable

18

BOLT

01550-0612B

$2.38

19

SCREW

02112-0508A

$1.43
