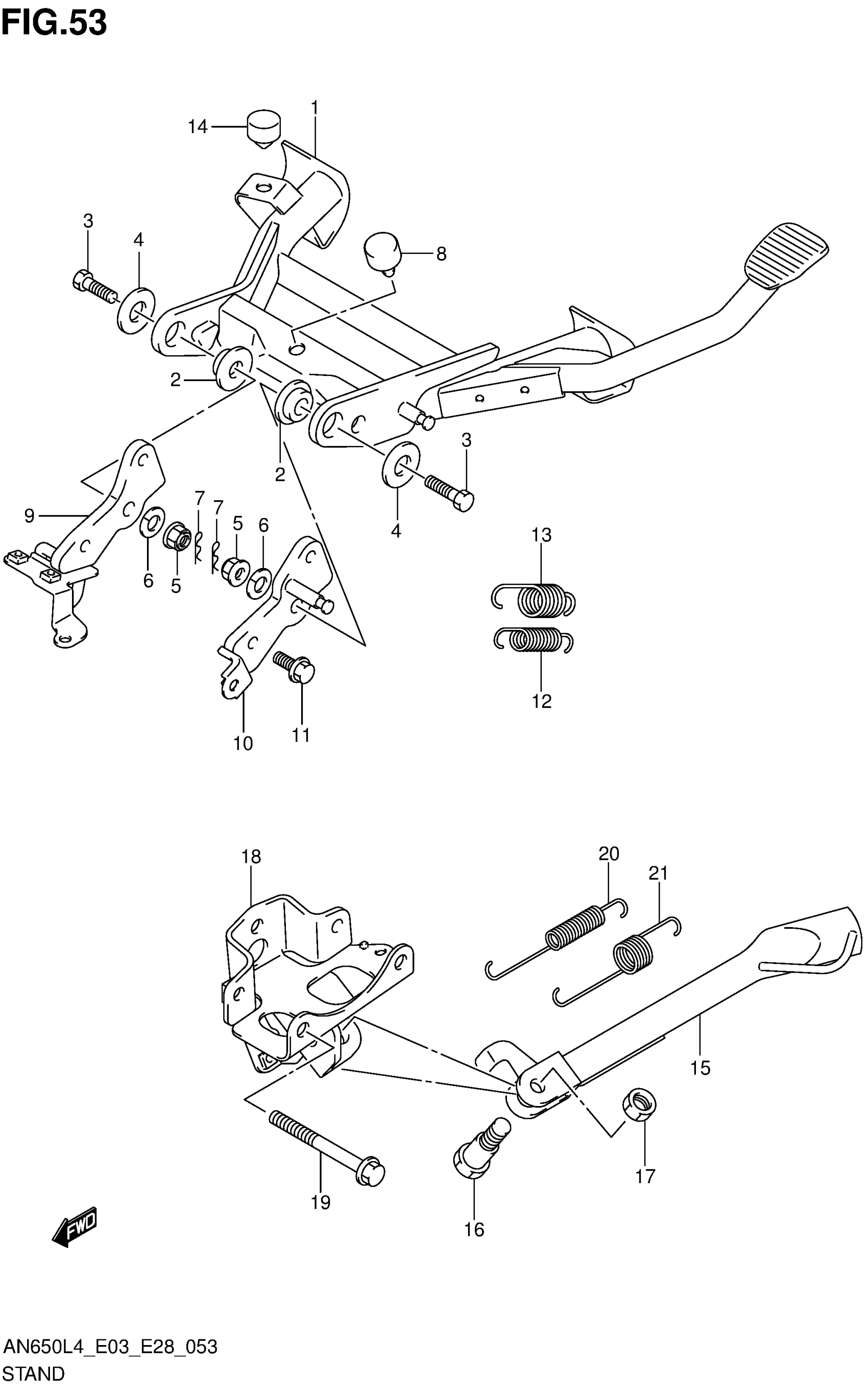

Suzuki AN650L4 (2014) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-26J00

$295.45

2

SPACER

42253-10G01

$12.60

3

BOLT (10X35)

09101-10036

$5.75

4

WASHER (10.5X24X1.6)

09160-10126

$2.13

5

NUT, PROP STAND

42321-03FK0

$4.73

6

LOCK WASHER

08321-0110A

$1.86

7

CLIP

09385-10005

$1.50

8

CUSHION

09321-10036

$7.20

9

BRACKET, CENTER STAND RH

42270-26J00

Unavailable

10

BRACKET, CENTER STAND LH This part replaces 42280-10G11.

42280-10G12

$27.58

11

BOLT

01550-0820A

$2.25

12

SPRING

09443-14057

$10.42

13

SPRING

09443-22009

$10.42

14

CUSHION, CENTER STAND RH

42272-26J00

Unavailable

15

STAND, PROP

42310-26J00

$91.20

16

BOLT (10X37.5)

09111-10058

$6.09

17

NUT, PROP STAND

42321-03FK0

$4.73

18

BRACKET, PROP STAND This part replaces 42330-26J01.

42330-26J10

$126.15

19

BOLT

01550-0875A

$3.25

20

SPRING

09443-12050

$11.17

21

SPRING, PROP STAND OUTER

42422-26J00

$19.51
