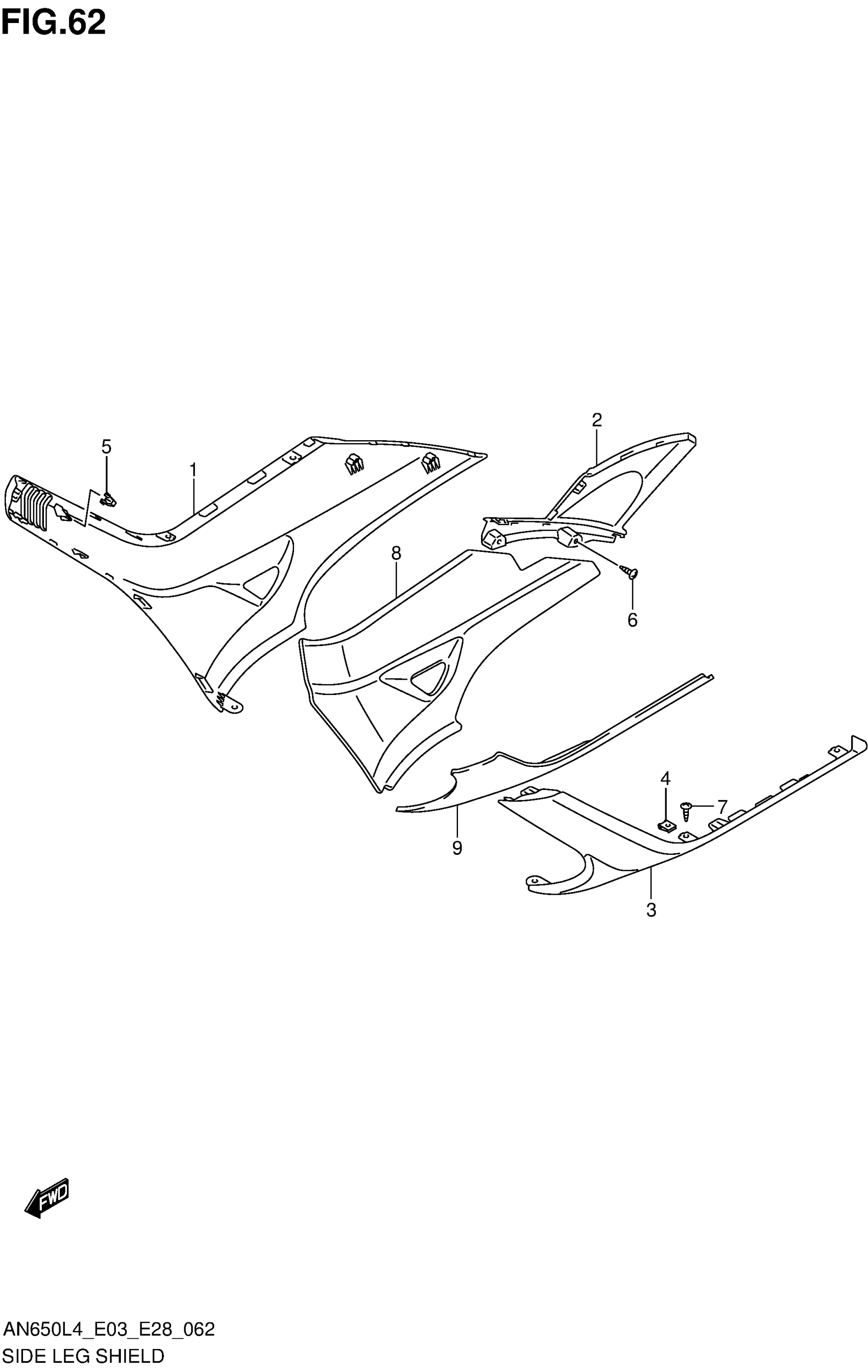

Suzuki AN650L4 (2014) SIDE LEG SHIELD Diagram

#

Description
Price

1

SHIELD, LEG SIDE RH (GRAY) This part replaces 48171-26J00-PGZ.

48171-26J02-PGZ

$218.73

1

SHIELD, LEG SIDE RH (WHITE) This part replaces 48171-26J00-RB5.

48171-26J02-RB5

$268.35

1

SHIELD,LEG SIDE This part replaces 48171-26J00-YVB.

48171-26J02-YVB

$209.05

2

SHIELD, LEG SIDE LOWER RH

48172-26J00

$26.80

3

SHIELD, LEG SIDE LH (GRAY) This part replaces 48181-26J00-PGZ.

48181-26J01-PGZ

$208.68

3

SHIELD, LEG SIDE LH (WHITE) This part replaces 48181-26J00-RB5.

48181-26J01-RB5

$167.75

3

SHIELD,LEG SIDE This part replaces 48181-26J00-YVB.

48181-26J01-YVB

$160.38

4

NUT

09148-05038

$1.97

5

CLIP

09409-08326

$2.45

6

SCREW

03541-0516A

$1.37

7

SCREW

03541-0516A

$1.37

8

CUSHION,LEG SHI This part replaces 48314-26J00.

48314-26J01

$40.13

9

CUSHION, LEG SHIELD SIDE LH

48324-26J00

$38.70
