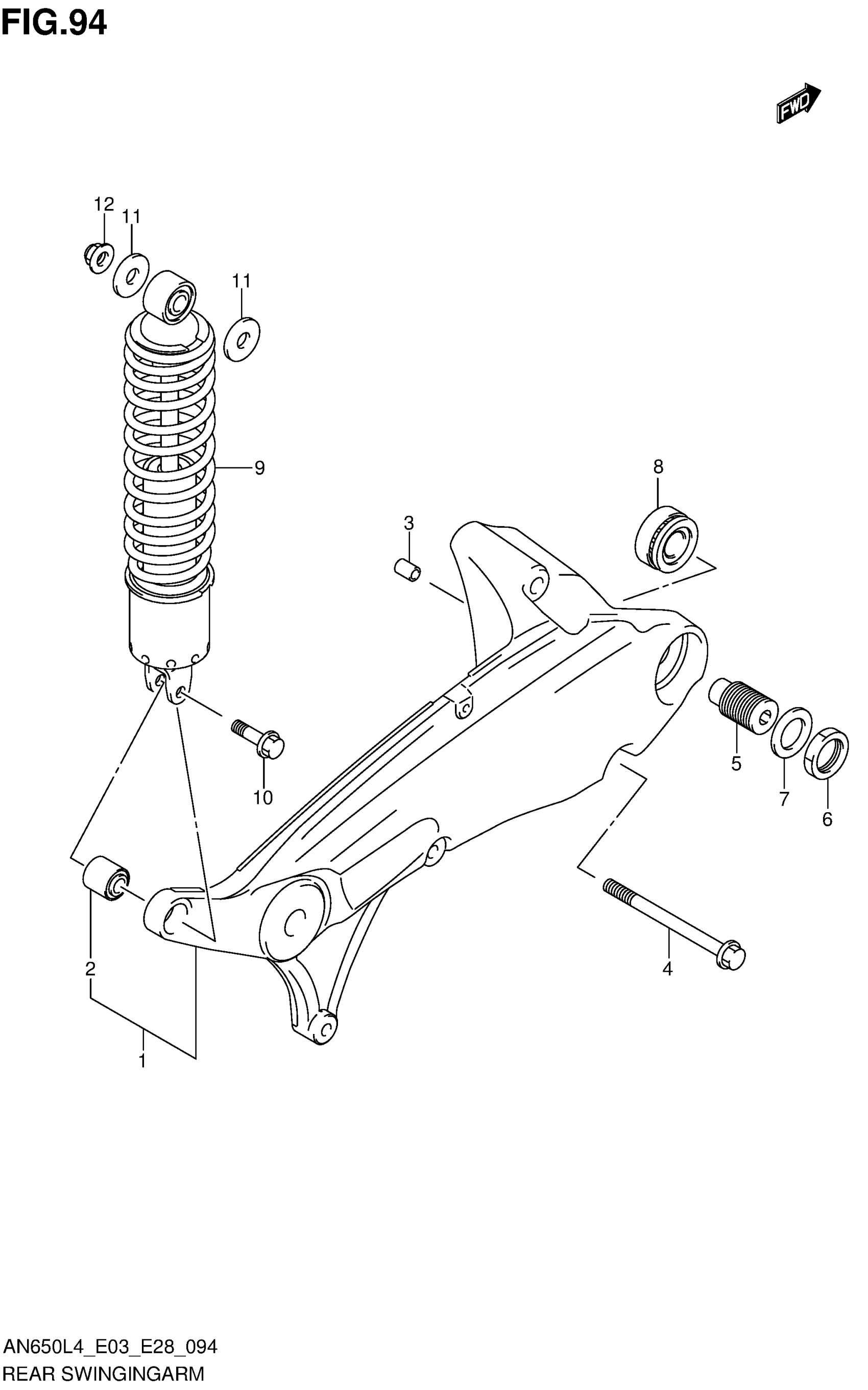

Find the part on the Rear Swingingarm diagram for your 2014 Suzuki AN650L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki AN650L4 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR (SILVER)

61000-10G20-YD8

1
Out of stock

2

BUSH (10.2X22.3X20)

09319-10032

1

$10.08

In stock

3

PIN,CRANKCASE

11319-33E50

2

$5.45

In stock

4

BOLT (10X95)

09103-10299

3
Out of stock

5

BOLT, PIVOT RH

61213-24A00

1
Out of stock

6

NUT

09140-24007

1

$3.84

In stock

7

WASHER (24X42X1.2)

09160-24034

1

$2.58

In stock

8

BEARING (17X40X13.25)

09265-17012

1

$75.07

In stock

10

BOLT, LOWER

62313-40B00

2

$5.10

In stock

11

WASHER (10.5X30X2.3)

09160-10501

4

$2.52

In stock

12

NUT

08319-3110A

2
Out of stock
