2014 Suzuki AN650L4 OIL Cooler Diagram

← All diagrams

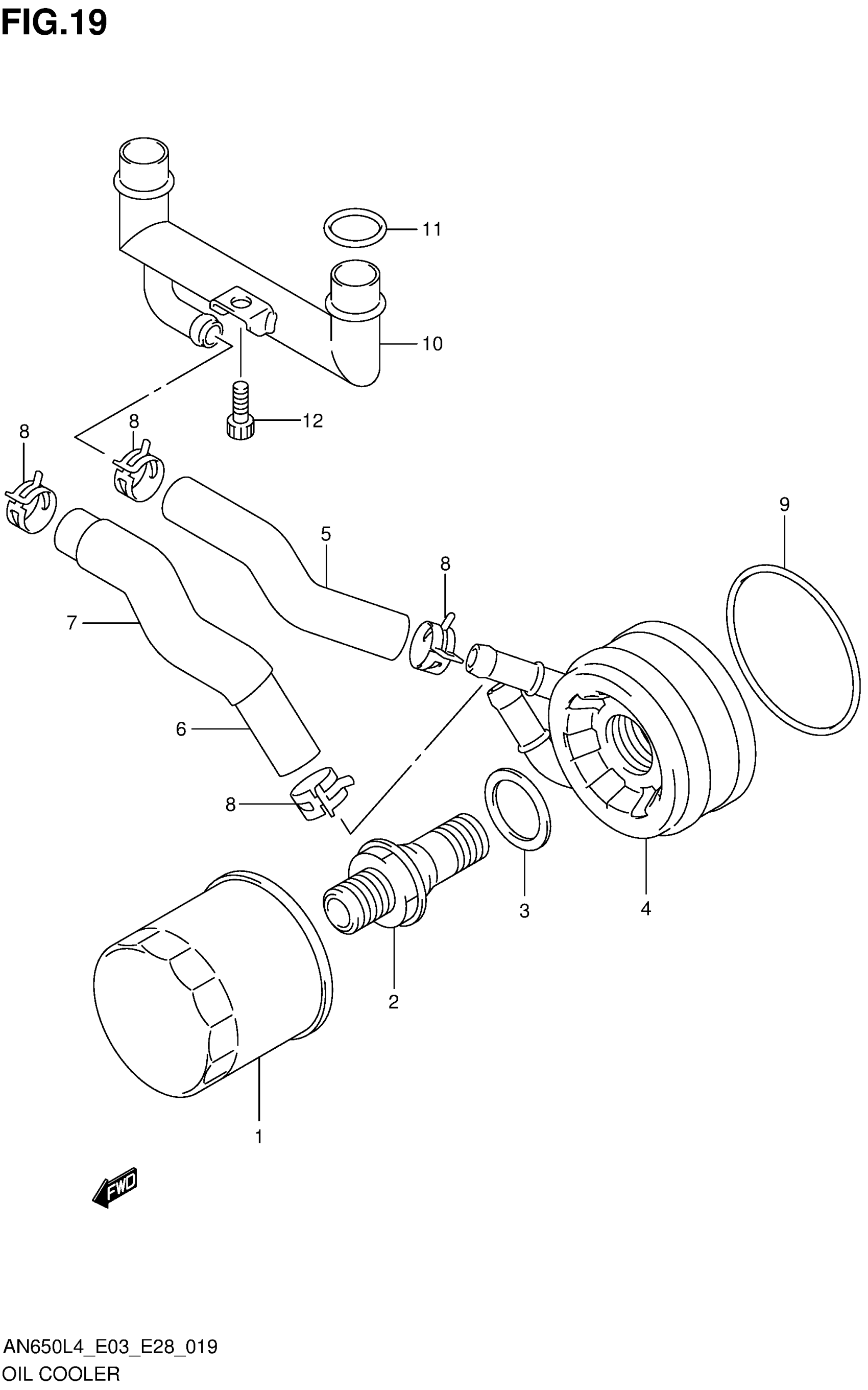

Find the part on the OIL Cooler diagram for your 2014 Suzuki AN650L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki AN650L4 OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FILTER, ENGINE OIL

16510-07J00

1
Out of stock

2

BOLT,OIL COOLER UNION

16591-02F00

1
Out of stock

3

SHIM (25X34X0.7)

09181-25160

1

$3.03

In stock

4

COOLER ASSY, OIL

16600-10G00

1
Out of stock

5

HOSE, OIL COOLER IN

16461-10G00

1
Out of stock

6

HOSE, OIL COOLER OUT

16471-10G00

1
Out of stock

7

PROTECTOR, HOSE HEAT

16479-10G00

1
Out of stock

8

CLIP

09401-16407

4
Out of stock

9

O RING (D:3.1,ID:63.9)

09280-64003

1
Out of stock

10

PIPE, WATER

17880-10G00

1
Out of stock

11

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

2
Out of stock

12

BOLT (6X12)

09106-06075

1
Out of stock
