2014 Suzuki AN650L4 Lock SET Diagram

← All diagrams

Find the part on the Lock SET diagram for your 2014 Suzuki AN650L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

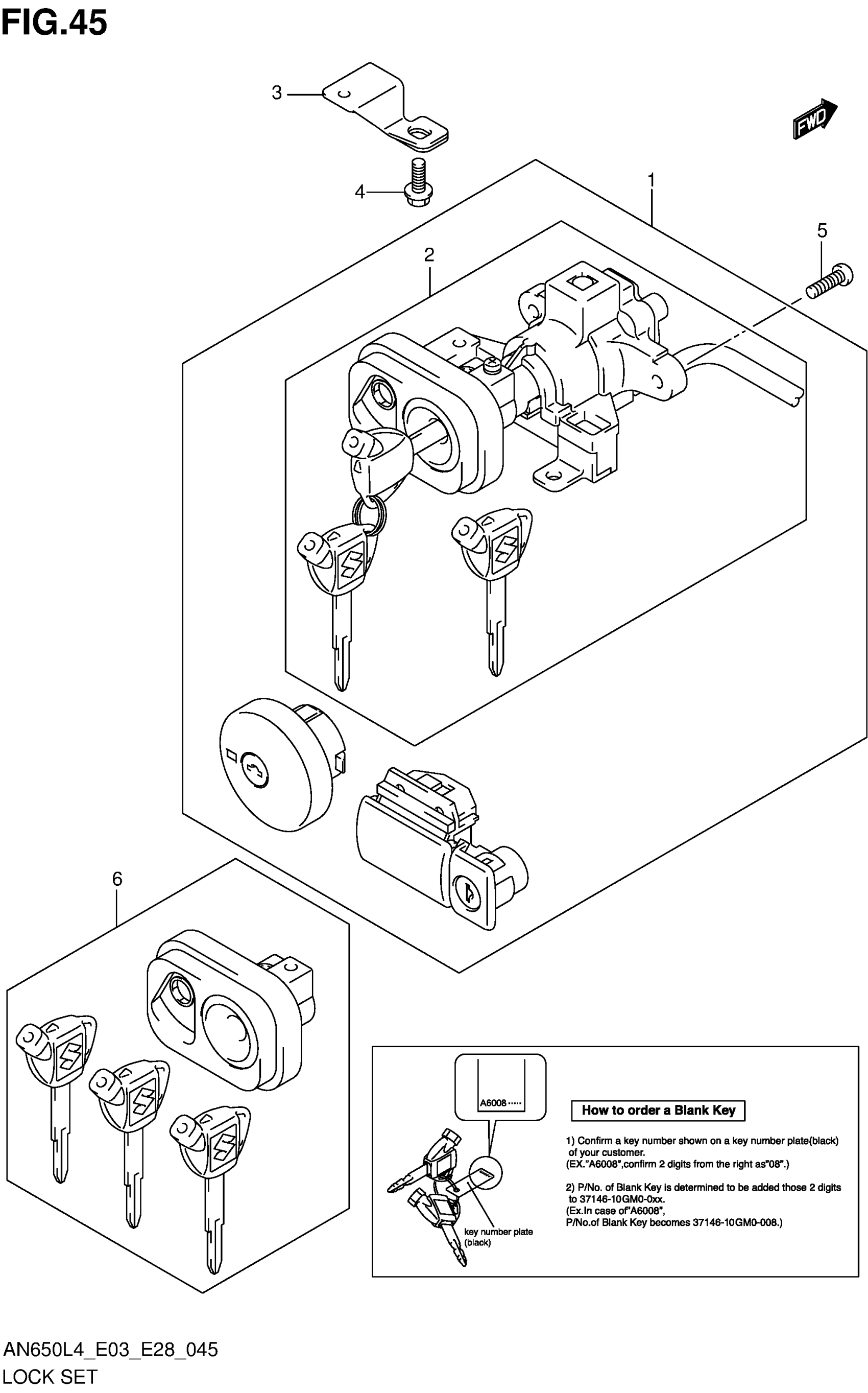

2014 Suzuki AN650L4 Lock SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LOCK SET This part replaces 37103-26820.

37103-26824

1
Out of stock

2

LOCK ASSY,STEER This part replaces 37120-26820.

37120-26822

1
Out of stock

3

PLATE, STEERING LOCK

51921-26J00

1
Out of stock

4

BOLT (8X16)

09103-08351

1
Out of stock

5

SCREW (6X20)

09139-06048

2
Out of stock

6

SHUTTER SET

37155-11840

1
Out of stock
