2014 Suzuki AN650L4 Label Diagram

← All diagrams

Find the part on the Label diagram for your 2014 Suzuki AN650L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

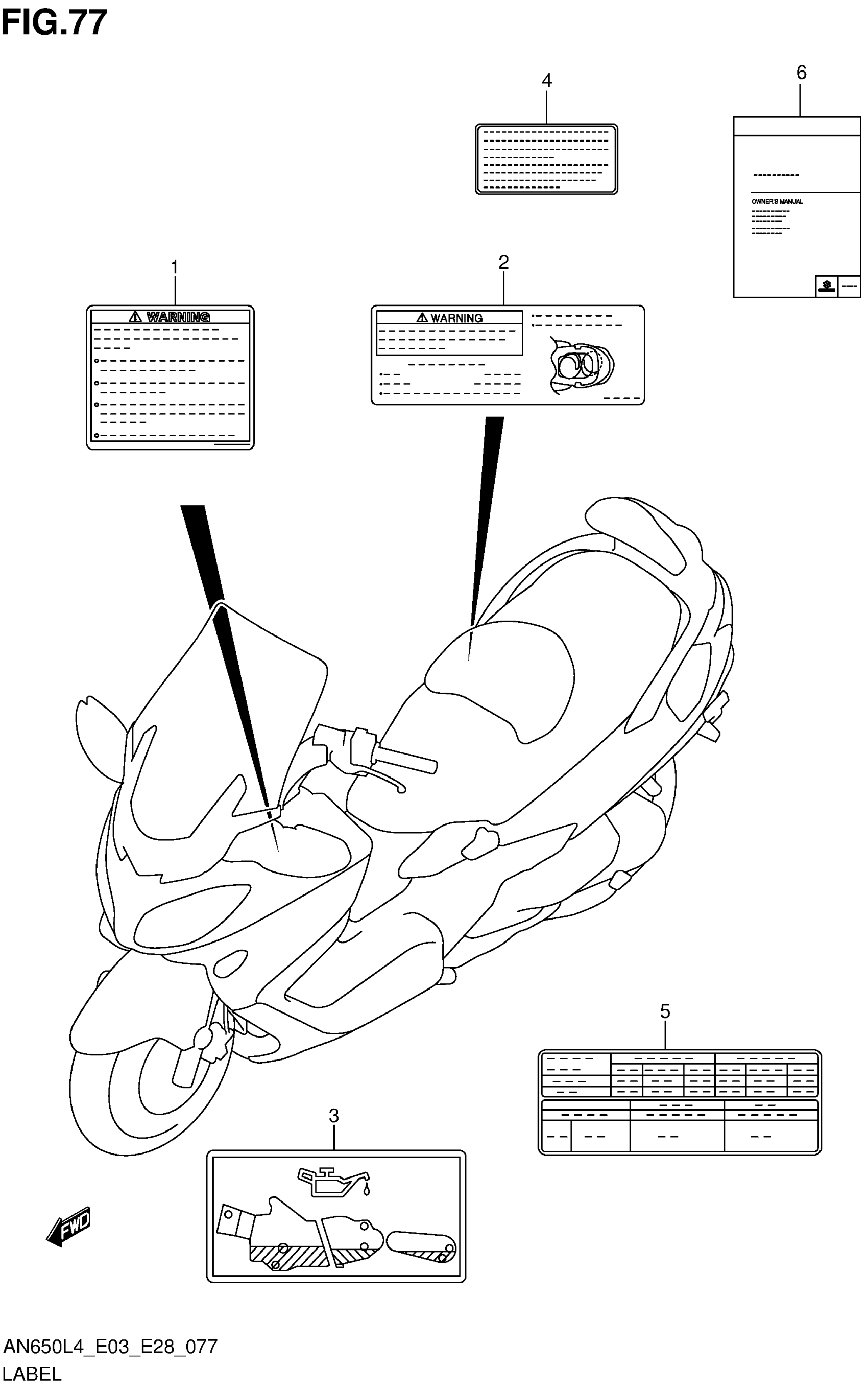

2014 Suzuki AN650L4 Label Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LABEL,GENERAL W This part replaces 68319-29F00.

68319-29F01

1
Out of stock

2

LABEL LOADING CAPACITY

68911-26J00

1
Out of stock

3

LABEL, OIL INFORMATION

68322-10G00

1
Out of stock

4

LABEL,MANUAL NOTICE This part replaces 68353-26E02.

68353-26E03

1
Out of stock

5

LABEL, TIRE INFORMATION

68332-26J10

1
Out of stock

6

MANUAL, OWNER'S (ENGLISH)

99011-26J51-03A

1
Out of stock
