2014 Suzuki AN650L4 Fuel Inlet Diagram

← All diagrams

Find the part on the Fuel Inlet diagram for your 2014 Suzuki AN650L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

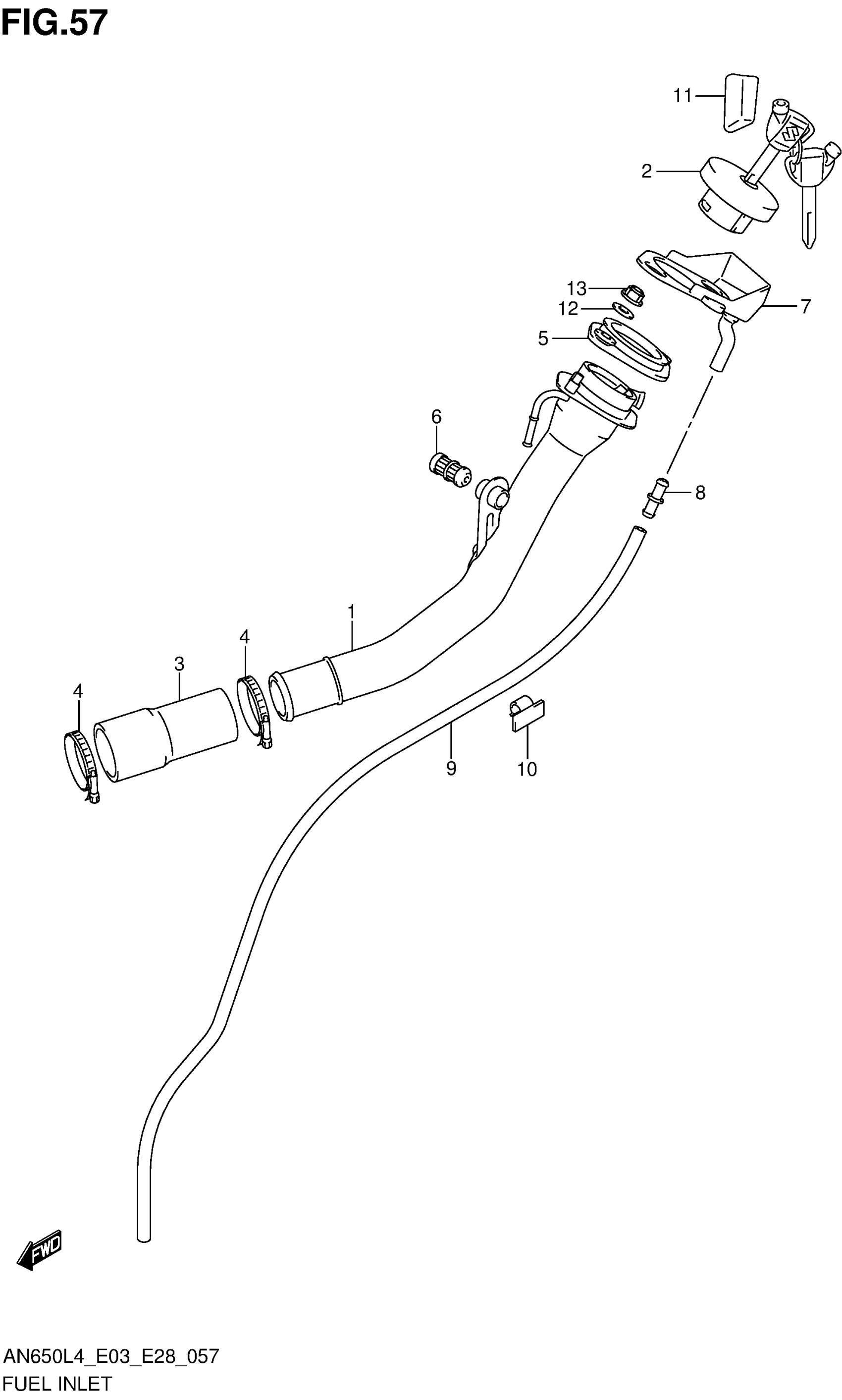

2014 Suzuki AN650L4 Fuel Inlet Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

INLET, FUEL TANK

44190-26J00

1
Out of stock

2

CAP SET,FUEL TA This part replaces 44200-10841.

44200-10843

1
Out of stock

3

HOSE, FUEL INLET

44422-10G00

1
Out of stock

4

CLAMP

09402-50512

—
Out of stock

5

PACKING, INLET

44261-26J00

1
Out of stock

6

CUSHION

44264-10G00

1
Out of stock

7

TRAY, FUEL TANK INLET

44262-26J00

1
Out of stock

8

JOINT

09367-08001

1
Out of stock

9

HOSE, DRAIN

44423-10G00

1
Out of stock

10

CLAMP

09403-10318

1
Out of stock

11

CUSHION, INLET

44263-26J00

1
Out of stock

12

WASHER (5.5X20X1.2)

09160-05501

2
Out of stock

13

NUT

08313-2005A

2
Out of stock
