2014 Suzuki AN650L4 Drive Shaft Diagram

← All diagrams

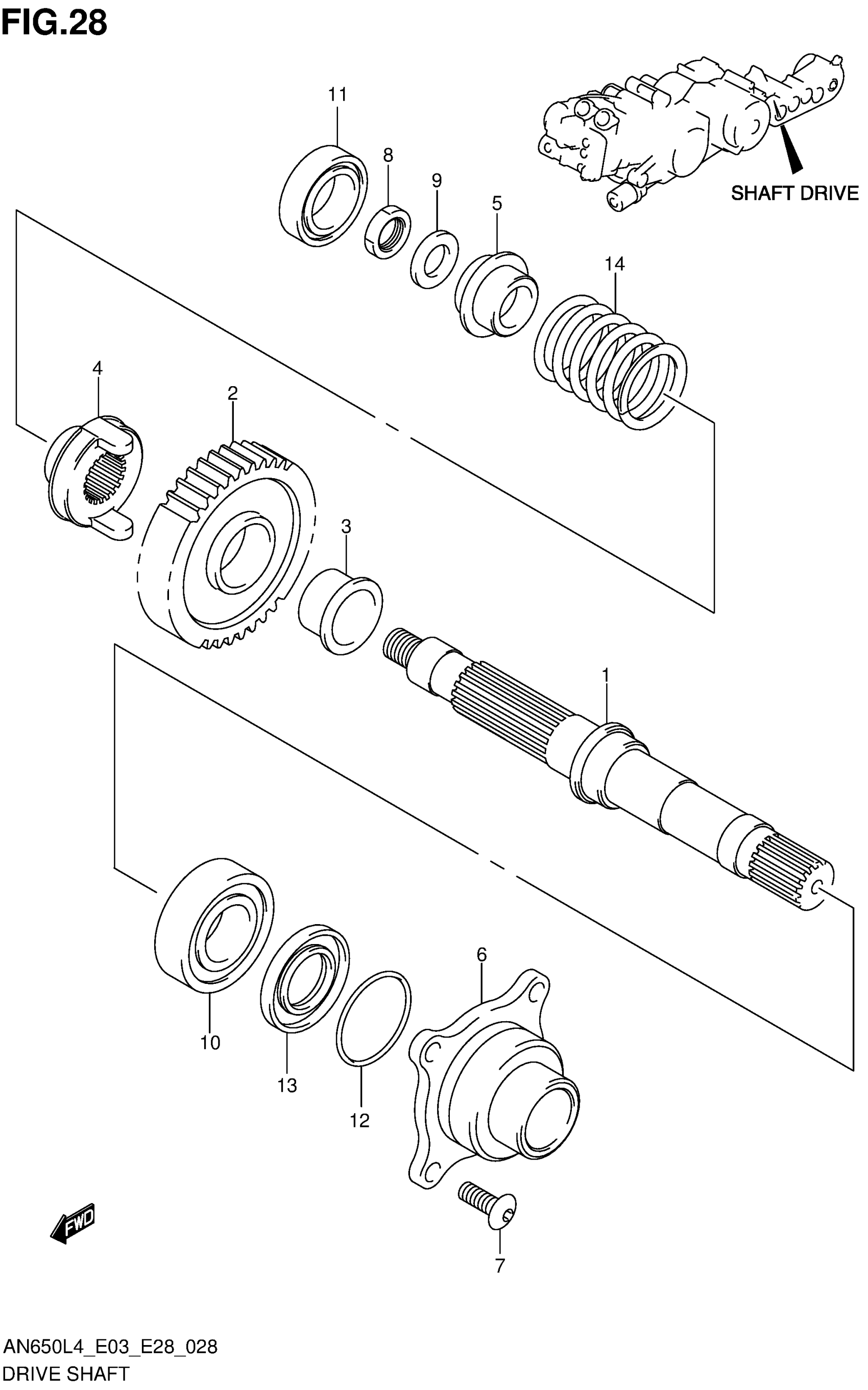

Find the part on the Drive Shaft diagram for your 2014 Suzuki AN650L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki AN650L4 Drive Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, DRIVE

24131-10G00

1
Out of stock

2

GEAR, FINAL DRIVEN (NT:40)

24371-10G00

1
Out of stock

3

BUSH, FINAL DRIVEN GEAR

24632-10G00

1
Out of stock

4

DOG, OUTPUT CAM

24922-26J00

1
Out of stock

5

STOPPER, CAM SPRING

24923-10G00

1
Out of stock

6

HOUSING, OIL SEAL

24943-10G00

1
Out of stock

7

BOLT (8X20)

09106-08161

4
Out of stock

8

NUT | RH This part replaces 09140-16001.

09140-16005

1
Out of stock

9

WASHER (16X29X4)

09160-16029

1

$6.90

In stock

10

BEARING (25X52X13) | LH

09262-25136

1
Out of stock

11

BEARING (30X55X13) | RH

09262-30113

1
Out of stock

12

O RING (D:2.4,ID:44.7)

09280-45004

1
Out of stock

13

SEAL,OIL (25X45X5)

09283-25076

1
Out of stock

14

SPRING

09440-45004

1
Out of stock
