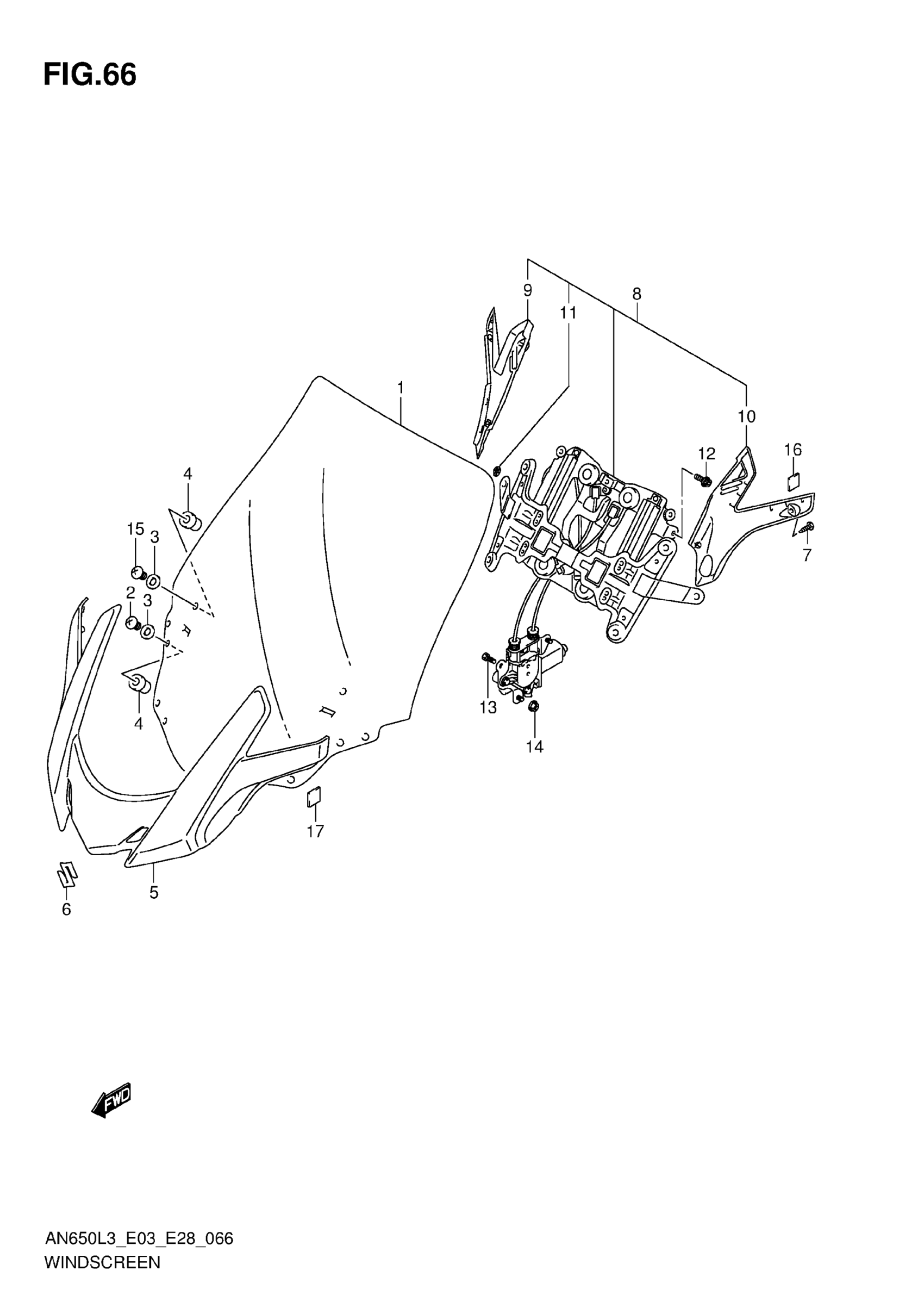

Suzuki AN650L3 (2013) WIND SCREEN Diagram

#

Description
Price

1

WINDSCREEN

94611-26J00

$748.62

2

SCREW

02142-0516A

$1.43

3

WASHER (5.2X14X1.5)

09161-05017

$2.80

4

NUT

09159-05048

$6.61

5

COVER, WINDSCREEN This part replaces 94641-26J00-291.

94641-26J50

$17.84

6

EMBLEM, "S"

68641-14G00

$45.53

7

SCREW (5X16)

09132-05053

$2.26

8

REGULATOR ASSY, This part replaces 94600-26J00-291.

94600-26J52

$604.62

9

.COVER, RH This part replaces 94651-26J00-291.

94651-26J50

$21.03

10

.COVER, LH This part replaces 94661-26J00-291.

94661-26J50

$21.03

11

NUT

09148-03010

$2.87

12

BOLT

07120-0612A

$2.50

13

BOLT (6X8)

09100-06157

$2.97

14

NUT

08316-1006A

$2.19

15

SCREW

02142-0520A

$1.41

16

CUSHION, WINDSCREEN COVER | CUT AS REQUIRED

17798-39G00

$6.12

17

CUSHION, WINDSCREEN COVER NO.2

33652-19B00

$5.67
