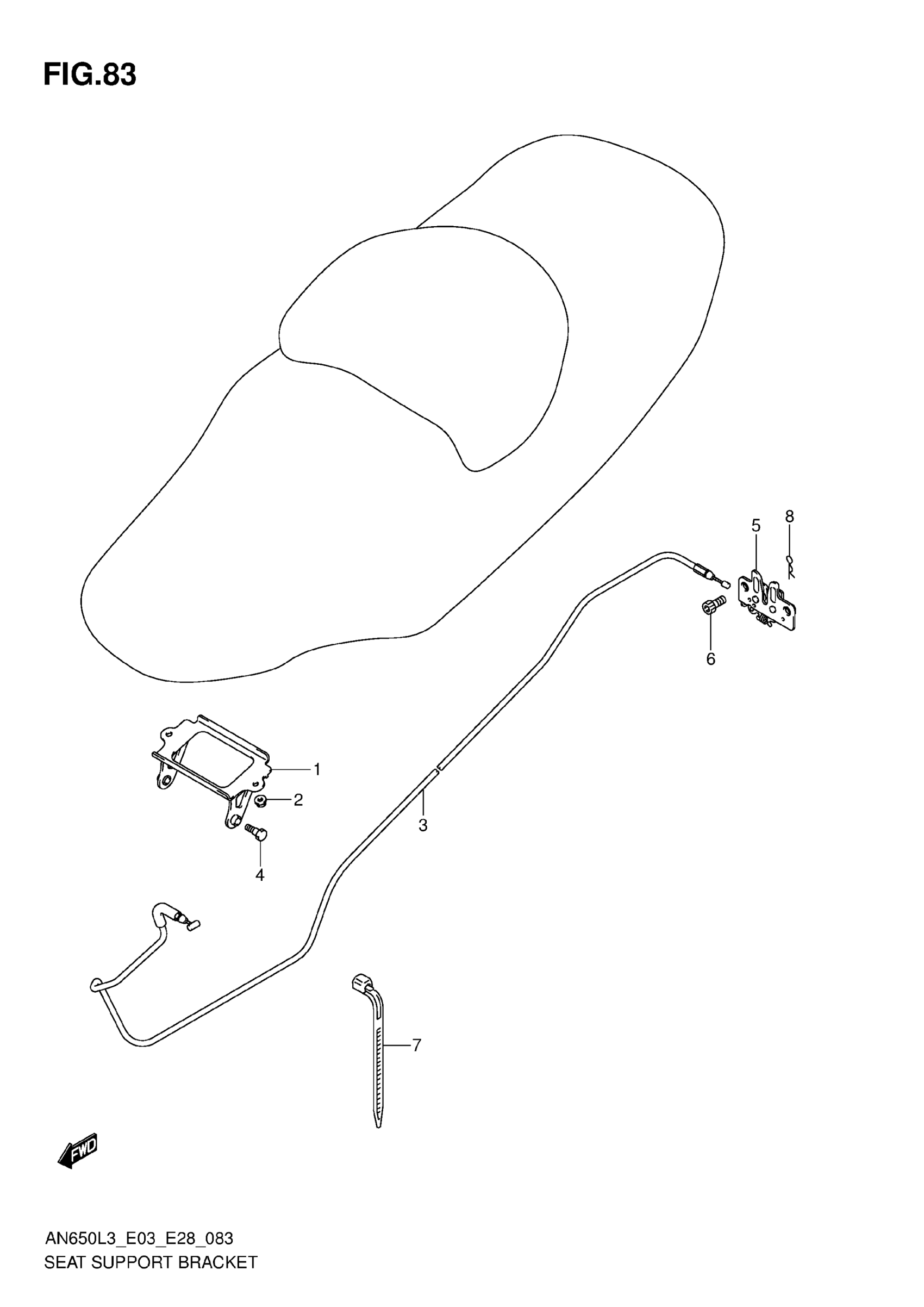

Suzuki AN650L3 (2013) SEAT SUPPORT BRACKET Diagram

#

Description

Price

1

BRACKET, SEAT HINGE This part replaces 45240-26J00.

45240-26J01

$54.60

2

NUT

08319-3106A

$2.01

3

CABLE, SEAT LOCK

45280-26J00

$53.08

4

BOLT (6X18.5)

09111-06068

$5.61

5

BRACKET, STRIKER SUPPORT

45700-14FB2

$85.67

6

BOLT

07130-0612A

$2.50

7

CLAMP (L:165)

09407-18402

$2.21

8

SNAP PIN

09385-05004

$1.68
