2013 Suzuki AN650L3 Helmet BOX Diagram

← All diagrams

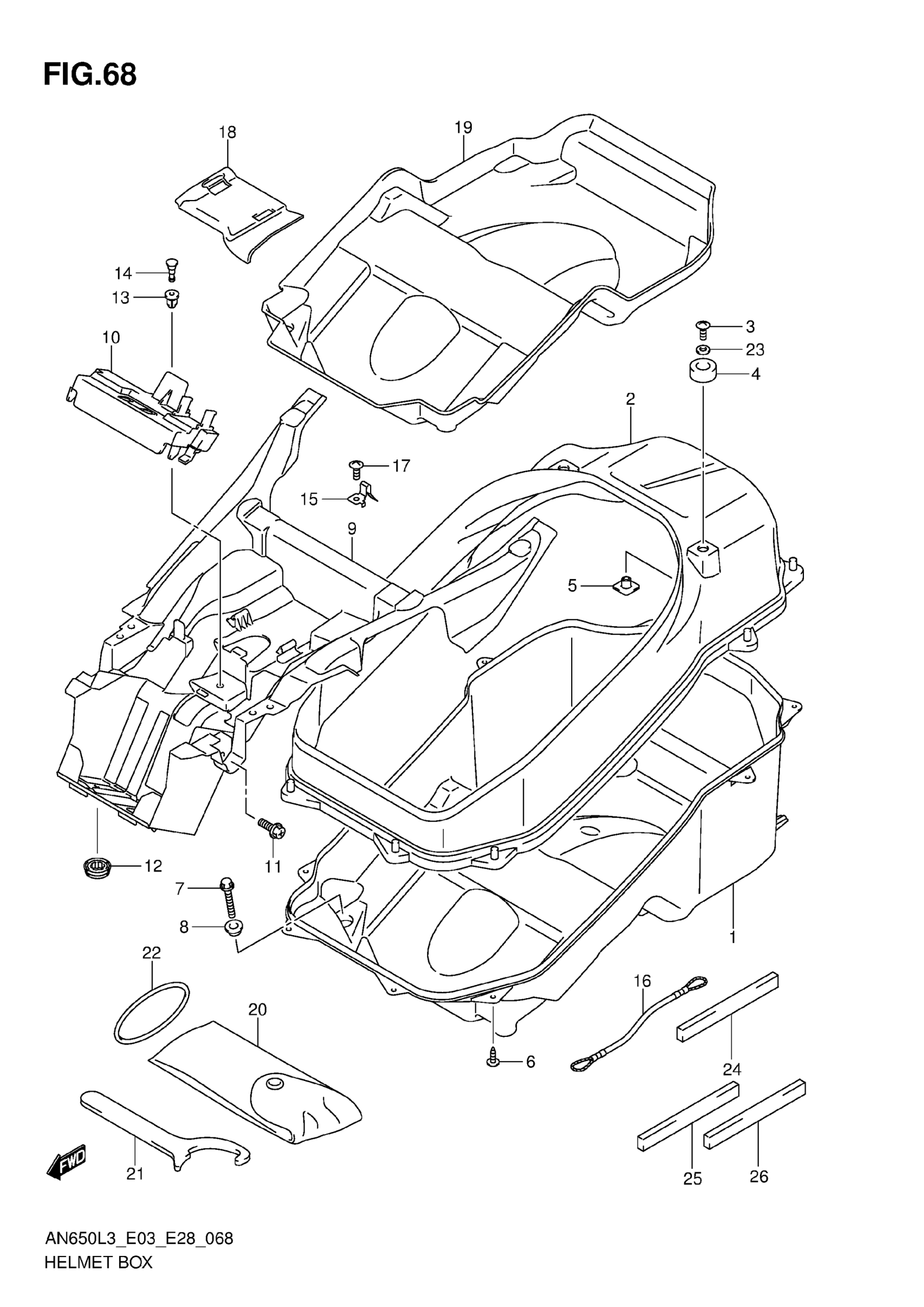

Find the part on the Helmet BOX diagram for your 2013 Suzuki AN650L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki AN650L3 Helmet BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX, HELMET NO.1 This part replaces 92211-26J00.

92211-26J50

1
Out of stock

2

BOX, HELMET NO.2

92221-26J00

1
Out of stock

3

SCREW (6X12)

09139-06027

2
Out of stock

4

CUSHION, UPPER

45149-04A00

2
Out of stock

5

NUT, HELMET BOX

92222-10G01

2
Out of stock

6

SCREW

03541-0516A

8
Out of stock

7

BOLT

01547-0640A

2
Out of stock

8

WASHER

09169-06073

2
Out of stock

9

COVER, BOX FRONT NO.1 (BLACK)

92212-26J00-291

1
Out of stock

10

COVER, BOX FRONT NO.2

92213-10G01

1
Out of stock

11

BOLT (6X12)

09111-06107

2
Out of stock

12

CUSHION

09320-09046

2
Out of stock

13

GROMMET

09409-08329

1
Out of stock

14

PLUNGER

09409-08330

1
Out of stock

15

STOPPER, HELMET HOLDER

95723-10G00

1
Out of stock

16

CABLE,HELMET LO This part replaces 95740-10G00.

95740-10G01

1
Out of stock

17

SCREW (6X12)

09139-06027

1
Out of stock

18

COVER, HELMET BOX FRONT, NO.3

92215-10G00

1
Out of stock

19

MAT, HELMET BOX

92213-26J00

1
Out of stock

20

TOOL ASSY This part replaces 09800-21056.

09800-21100

1
Out of stock

21

CLAMP,WRENCH

09822-00003

1
Out of stock

22

O RING (D:3.53,ID:69.44)

09280-70004

1
Out of stock

23

WASHER

09160-06019

2
Out of stock

24

CUSHION,HELMET BOX

92214-26J00

1
Out of stock

25

CUSHION,HELMET BOX,NO.1

92215-26J00

1
Out of stock

26

CUSHION,HELMET BOX,NO.2

92216-26J00

1
Out of stock
