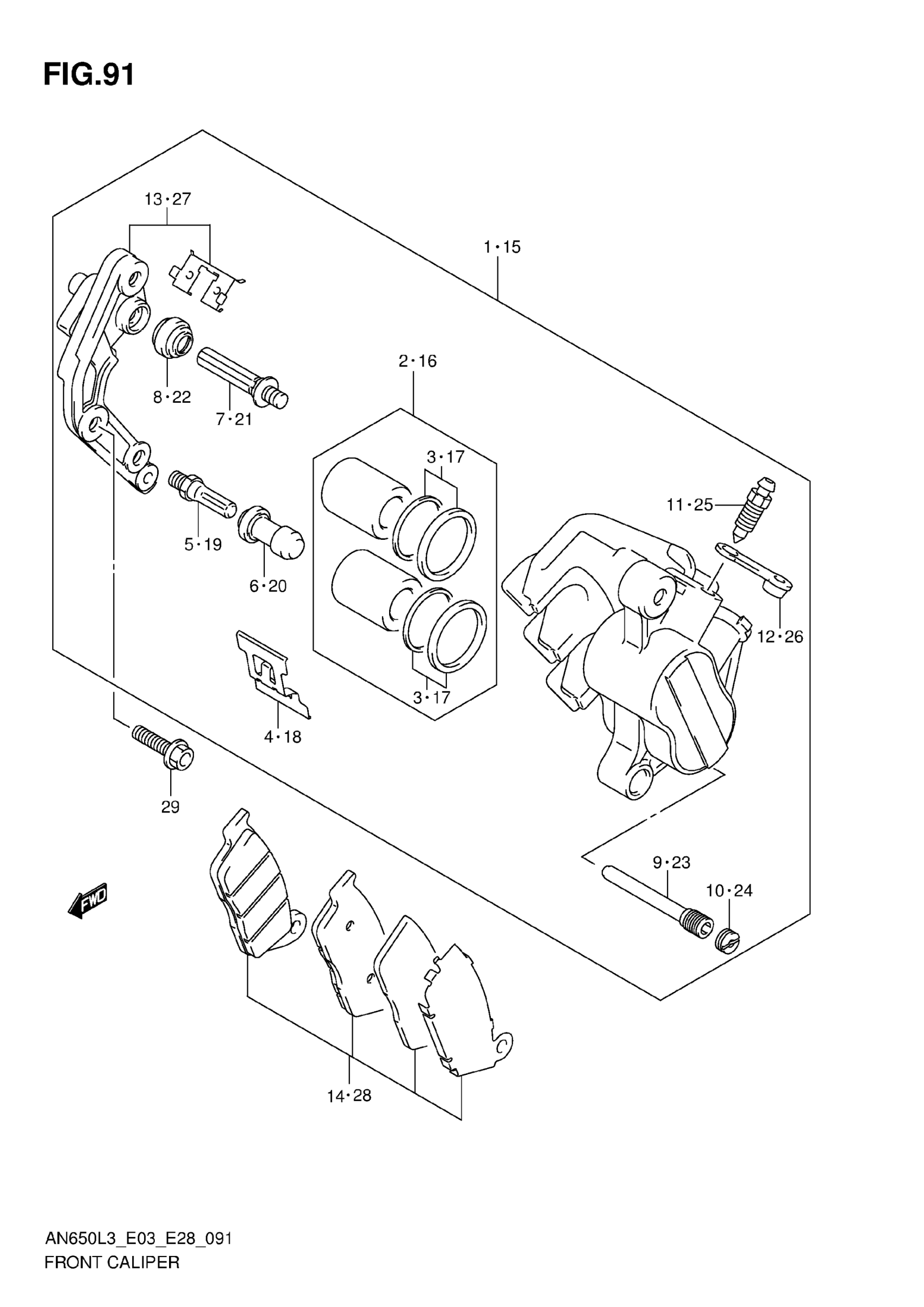

Suzuki AN650L3 (2013) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-26J00-999

Unavailable

2

PISTON SET

59300-26860

$53.32

3

SEAL SET, PISTON

59300-13820

$21.18

4

SPRING, PAD

59115-21E10

$16.60

5

BOLT

59382-14500

$8.81

6

BOOT

59386-13A00

$7.60

7

PIN

59187-21E10

$30.18

8

BOOT

59303-14500

$5.29

9

PIN, HANGER

59145-21E10

$18.04

10

PLUG, PIN

59146-21E10

$5.88

11

BLEEDER

59121-01A00

$8.35

12

CAP

59122-01A00

$4.15

13

BRACKET RH

59151-26J00

Unavailable

14

PAD & SHIM SET RH

59101-26810

$122.15

15

CALIPER ASSY, FRONT LH

59300-26J00-999

$599.00

16

PISTON SET

59300-26860

$53.32

17

SEAL SET, PISTON

59300-13820

$21.18

18

SPRING, PAD

59115-21E10

$16.60

19

BOLT

59382-14500

$8.81

20

BOOT

59386-13A00

$7.60

21

PIN

59187-21E10

$30.18

22

BOOT

59303-14500

$5.29

23

PIN, HANGER

59145-21E10

$18.04

24

PLUG, PIN

59146-21E10

$5.88

25

BLEEDER

59121-10G00

$16.32

26

CAP

59122-01A00

$4.15

27

BRACKET LH

59351-26J00

Unavailable

28

PAD & SHIM SET LH

59101-26820

$122.15

29

BOLT (8X28)

09103-08359

$3.54
