2013 Suzuki AN650L3 Crank Balancer Diagram

← All diagrams

Find the part on the Crank Balancer diagram for your 2013 Suzuki AN650L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

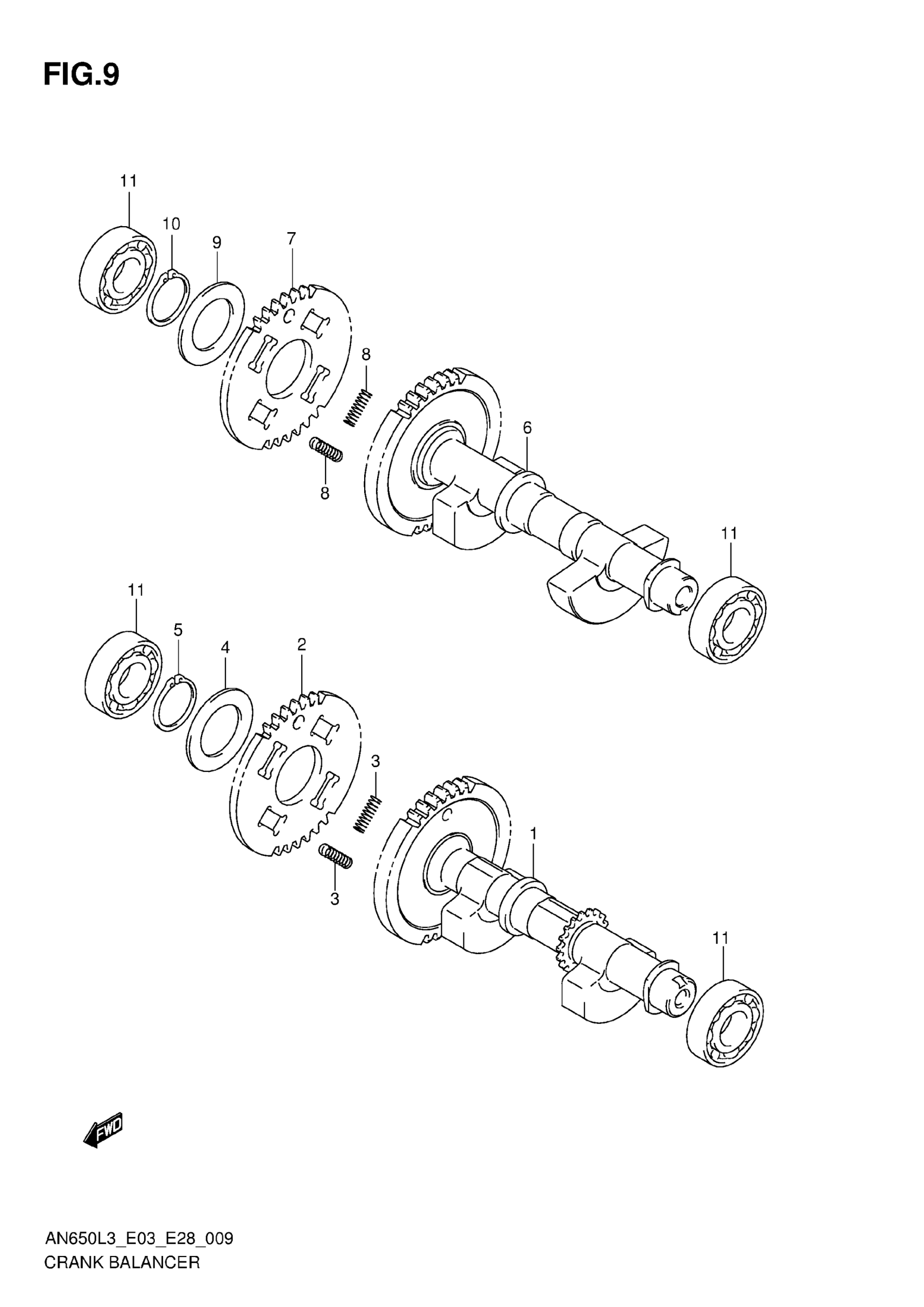

2013 Suzuki AN650L3 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER SET, CRANK NO.1 (NT:15/44)

12650-10820

1
Out of stock

2

GEAR, CRANK BAL DRIVEN NO.2 (NT:44)

12667-10G00

1
Out of stock

3

SPRING

09440-07076

4
Out of stock

4

WASHER

08211-32522

1
Out of stock

5

CIRCLIP

08331-3132A

1
Out of stock

6

BALANCER SET

12660-10820

1
Out of stock

7

GEAR, CRANK BAL DRIVEN NO.2 (NT:44)

12667-10G00

1
Out of stock

8

SPRING

09440-07076

4
Out of stock

9

WASHER

08211-32522

1
Out of stock

10

CIRCLIP

08331-3132A

1
Out of stock

11

BEARING (20X47X12)

09262-20122

4
Out of stock
